Cat G3520/G3520B

Gas Engines

Last ned spesifikasjoner Send Forespørsel

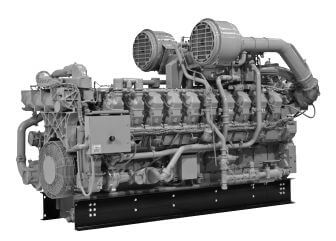

Om Cat G3520/G3520B

The Cat^® G3520 and G3520B Industrial Gas Engines are offered in the following ratings: 1104 bkW (1480 bhp) @ 1200 rpm and 1286 bkW (1725 bhp) @ 1400 rpm. These ratings are NSPS site compliant capable with customer-supplied aftertreatment. For specific emission information, please consult your local Cat Dealer.

Spesifikasjoner

Power Rating

Minimum Power	1480 BHP
Maximum Power	1725 BHP
Frequency	1200-1400 rpm

Generell

Bore	170 mm (6.7 in)
Stroke	190 mm (7.5 in)
Displacement	86.3 L (5263 in³)
Engine Configuration	Engien - Continuous

Engine Dimensions - Approximate

Height	2385 mm (94 in)
Length	4180 mm (164 in)
Weight - Net Dry	11168 kg (24622 lb)
Width	1755 mm (69 in)

Egenskaper

Engine Design

Built on G3500 LE proven reliability and durability
Ability to burn a wide spectrum of gaseous fuels
Robust diesel strength design prolongs life and lowers owning and operating costs
Broad operating speed range at lower site air densities (high altitude/hot ambient temperatures)
Higher power density improves fleet management
Quality engine diagnostics
Detonation-sensitive timing control for individual cylinders

Ultra Lean Burn Technology (ULB)

ULB technology uses an advanced control system, a better turbo match, improved air and fuel mixing, and a more sophisticated combustion recipe to provide: - Lowest engine-out emissions - Highest fuel efficiency - Improved altitude and speed turndown - Stable load acceptance and load rejection

Advanced Digital Engine Management

ADEM A3 engine management system integrates speed control, air/fuel ratio control, and ignition/detonation controls into a complete engine management system. ADEM A3 has improved: user interface, display system, shutdown controls, and system diagnostics.

Full Range of Attachments

Large variety of factory-installed engine attachments reduces packaging time.

Quality

Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.

World-class Product Support Offered Through Global Cat Dealer Network

Scheduled maintenance, including SOS^SM sample
Customer Support Agreements (CSA)
Caterpillar Extended Service Coverage (ESC)
Superior dealer service network
Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
