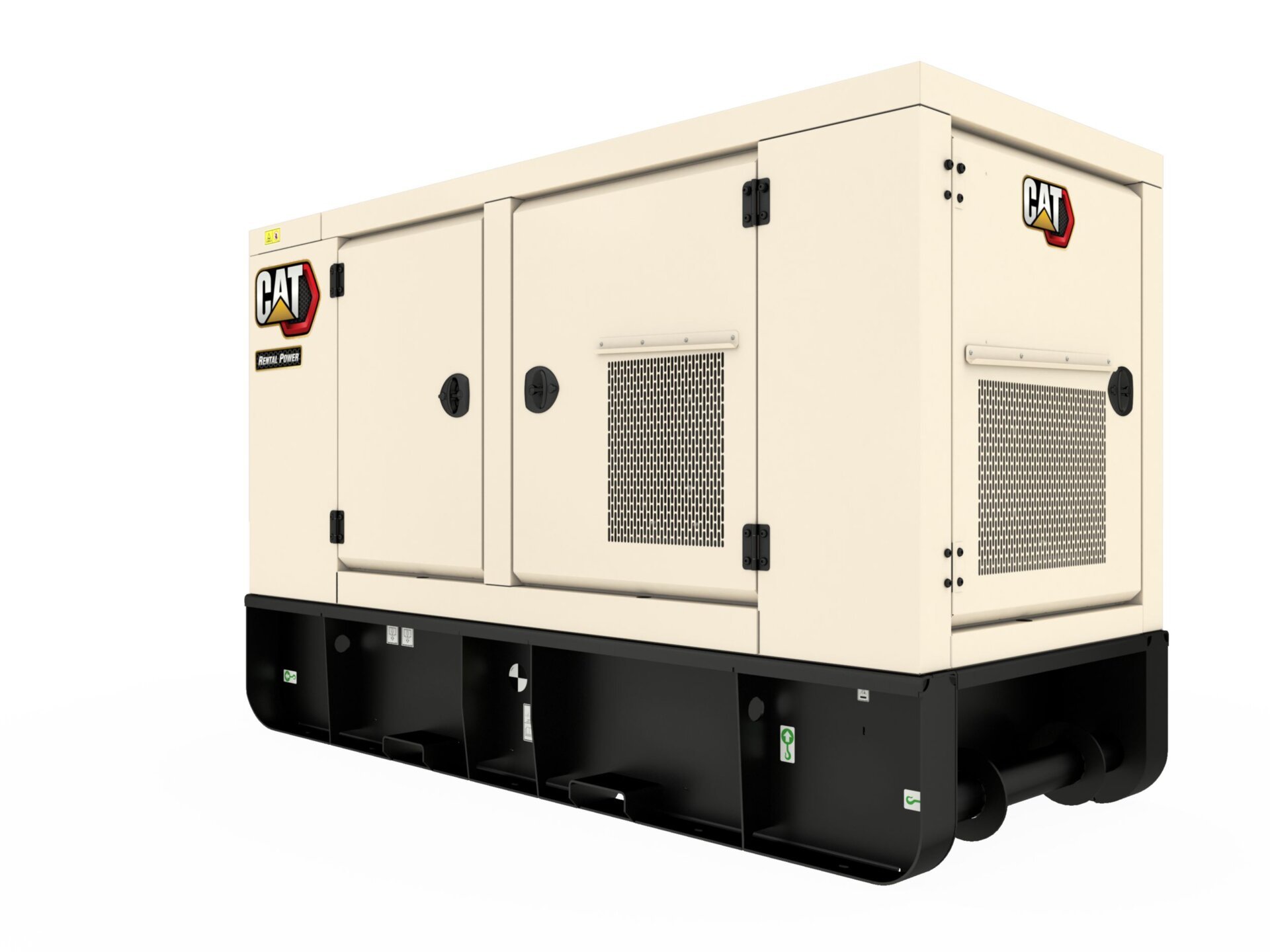

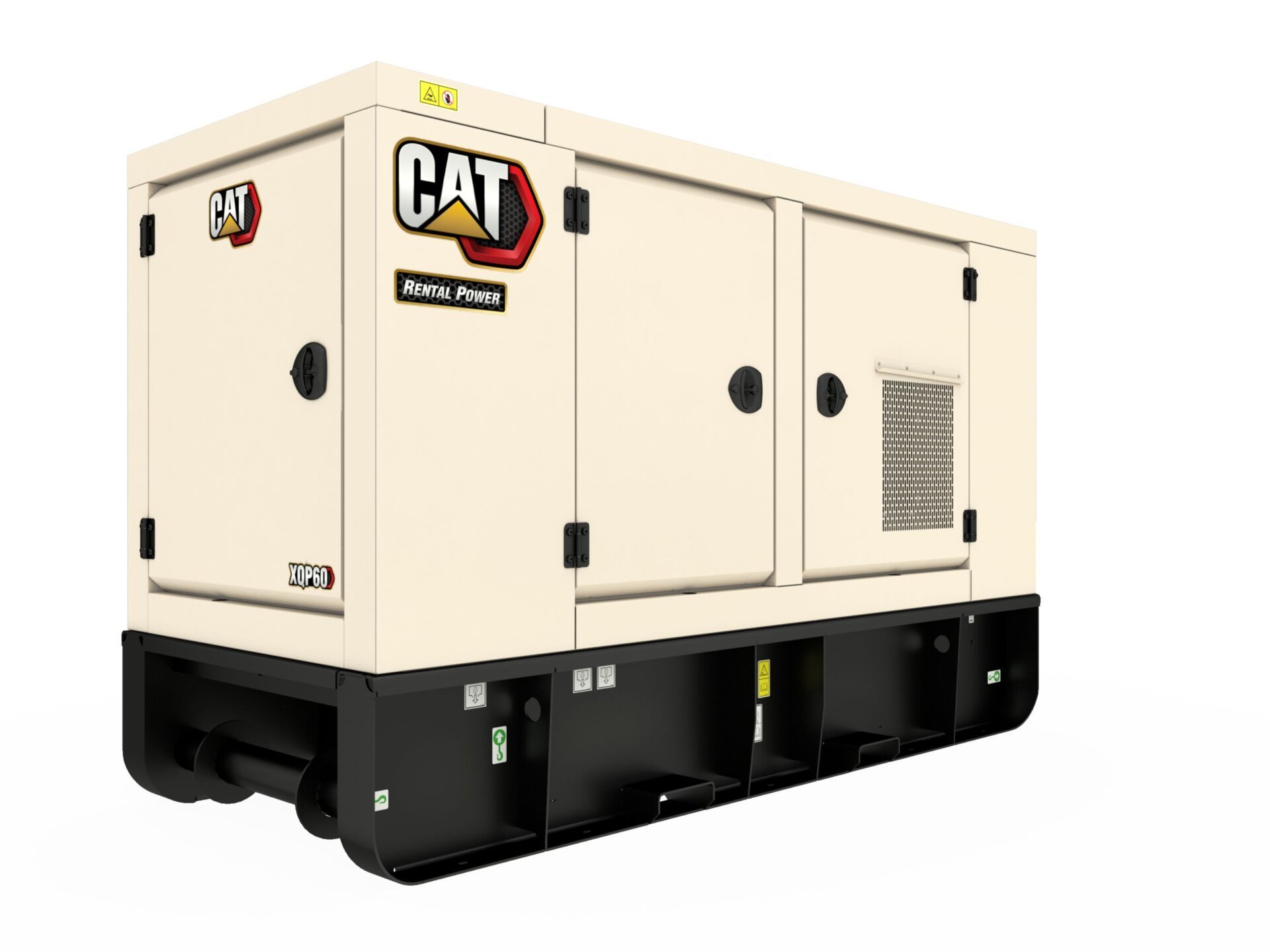

Cat XQP60

Mobile Generator Sets

  • 60 kVA

Om Cat XQP60



This XQP60 generator set will either meet EU Stage IIIA emission standards or provide low fuel consumption performance for customers in non-regulated territories. With a robust, rental or mobile-ready construction, the product line is designed to be easily transported around project sites safely and efficiently. Heavy-duty bases with integrated fork lift pockets allow the unit to be dragged and lifted with ease, while Clipsal or CEE socket options are available on select models to reduce installation time and provide trouble-free power distribution.

Spesifikasjoner

Generator Set
Rating Prime 60 kVA
Frequency 50/60 Hz
Voltage 127 - 480 V
Motor
Engine Cat C4.4
Fuel Diesel
Dimensjoner
Width 1120 mm
Height 1776.5 mm
Length 2610 mm
Weight - With Lube Oil and Coolant 1715 kg
Fuel Consumption EU Stage IIIA
100% Load 50Hz 16.5 l/hr
100% Load 60Hz 18.8 l/hr
75% Load 50Hz 12.4 l/hr
75% Load 60Hz 14.3 l/hr
50% Load 50Hz 8.3 l/hr
50% Load 60Hz 9.8 l/hr
Noise rating (with enclosure) EU Stage IIIA
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 73.3 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 76.4 dB(A)

Egenskaper

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.
Rental ready

Fuel/Emissions Strategy

Emissions Equivalent to EU Stage IIIA
Fuel/Emissions Strategy

Cat C4.4 Diesel Engine

Industry proven reliability.
Cat C32 Diesel Engine

XQCP Control Panel

Easy to use digital controls.
EMCP 4.3 Control Panel

Cat LC1500 Generator

Integrated voltage regular for fast response in demanding applications.
Cat SR500 Generator

Robust Galvanised Enclosure

Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.
Robust Galvanised Enclosure

Sound Isolated Operator Panel

Improved operator comfort.
Sound Isolated Operator Panel

Cat Connect

Remote monitoring for fleet management and asset tracking.
Cat Connect

Factory Designed, Built and Tested

Single-source Supplier
Optimized Lubrication Consumption

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Worldwide Product Support

500 hr Oil Change Intervals

Reducing operating costs and producing less waste.
500 hr Oil Change Intervals

Improved Transportability

Drag bars, Lifting frame, Fork lift pockets and 4 point lift.
Improved Transportability

Additional Options Available

Synchronising controls. Distribution sockets. Extended Service interval kits.
Full Range of Attachments
