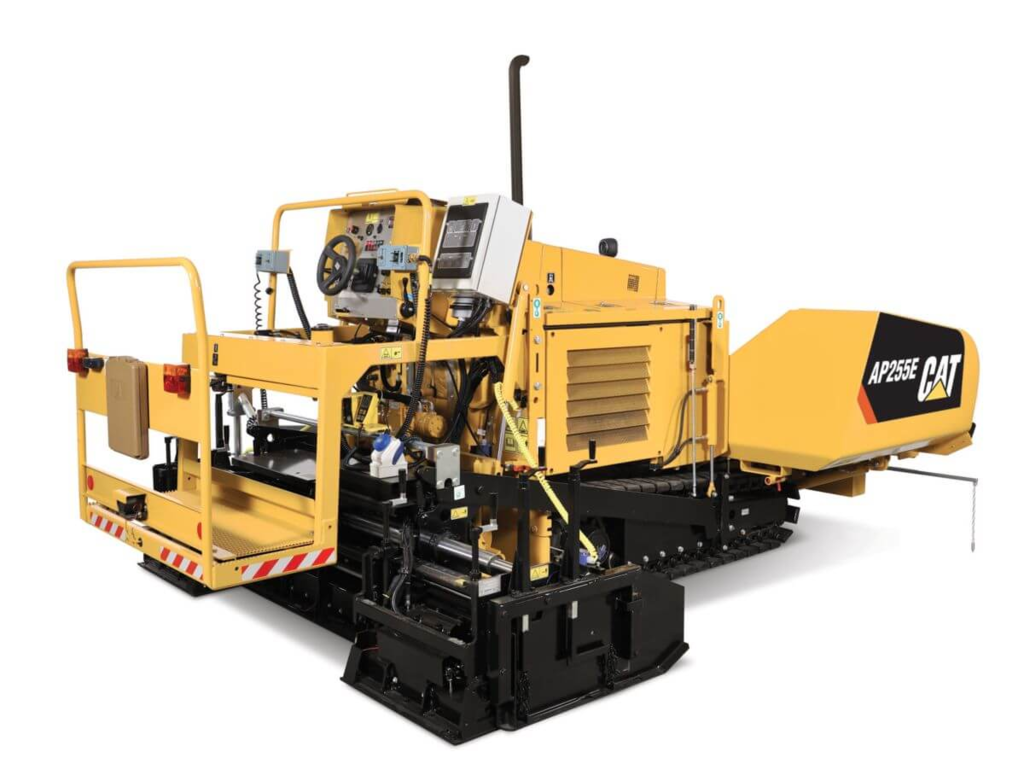

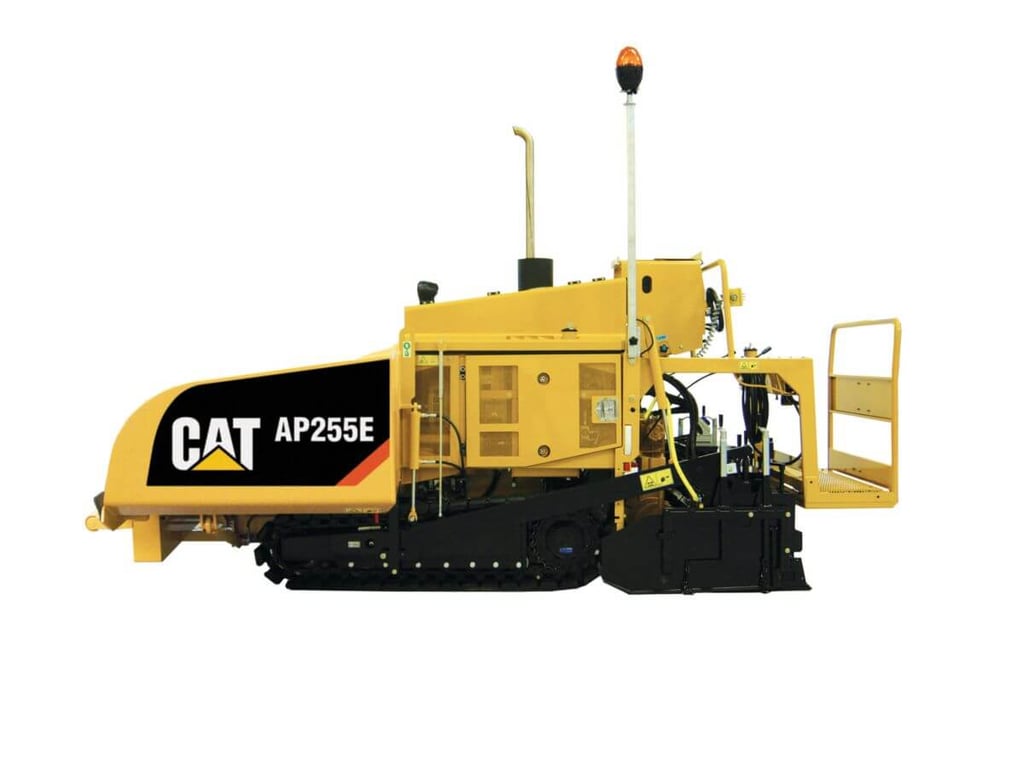

Cat AP255E

Sjaktkapasitet: 3,1 m³
Max utleggingsbredde: 3,4 m
Hastighet v/ asfaltering: 33 m/min

Om Cat AP255E

Dette produktet er utgått fra vårt sortiment. AP255E er en kompakt, ekstremt allsidig asfaltutlegger, ideell for små anleggsplasser i bysentre. For fortau, sykkelstier, lekeplasser, små parkeringsplasser og alt vedlikeholds- og reparasjonsarbeid, hvor de viser sine suverene egenskaper og finesser. Denne utleggeren er designet for å fungere på små områder, takket være dens kompakte og eksepsjonelle manøvrerbarhet.

Spesifikasjoner

Weights

Maximum Operating Weight	9921 lb
Operating Weight - With Screed	9921 lb

Operating Specifications

Standard Paving Width	1400 mm - 2600 mm (4.6 - 8.5 ft)
Paving Width Minimum	0.5 ft
Paving Width Maximum	11.08 ft
Hopper Capacity	109 ft³
Inside Turn Radius	2.3 ft
Maximum Paving Speed - With Vibratory Screed	108 ft/min
Maximum Travel Speed	2 mile/h
Truck Dump Height	23 in
Truck Entry Width	9.8 ft

Motor

Gross Power	46 HP
Displacement	135 in³
Motormodel	Cat C2.2

Dimensjoner

Track Contact Length	4.6 ft
Overall Height	8.3 ft
Inside Turn Radius	2.3 ft
Length - With Push Roller and Largest Screed	13.8 ft
Length - With Push Roller and Screed	13.8 ft
Maximum Height	8.3 ft
Tractor Operating Width	9.83 ft
Transport Height	5.75 ft
Transport Width - Hoppers Raised - Screed End Gates Attached	5.25 ft

Påfyllingskapasitet

Fuel Tank Capacity	17 gal (US)
Hydraulic Oil Tank	19.28 gal (US)
Cooling System	4.49 gal (US)

Drive System

Maximum Paving Speed

108.27 ft/min

Hopper

Hopper Capacity

109.48 ft³

Egenskaper

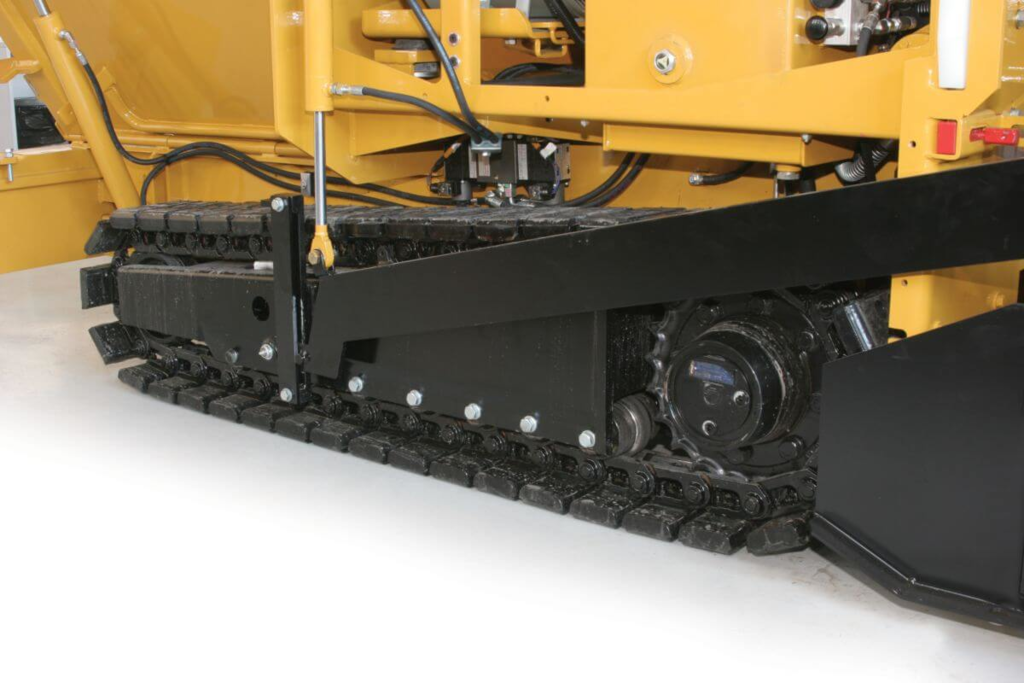

Undercarriage

The machine's tracked undercarriage, fitted with heavy-duty rubber bonded pads, provides excellent stability and weight distribution minimising the negative effect of an uneven base. Track tension is assured by two grease pistons with a shock absorbing system.

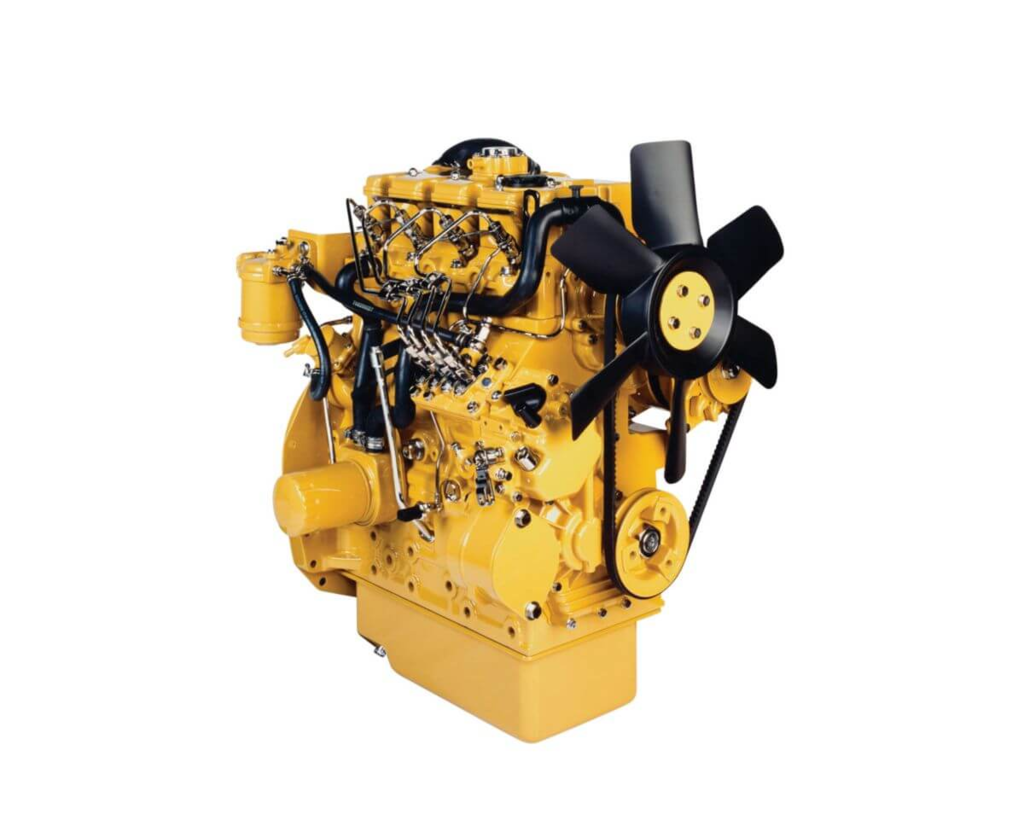

Cat® C2.2 Engine

Reliable Cat® C2.2 engine provides ample power and is EU Stage IIIb and U.S. Tier 4 Interim emissions compliant.

AS3143 Electric Screed

The electric heated screed is powered by an onboard generator with independent temperature control in all four sections. Three heating elements for each screed section ensure uniform heating over the entire screed plate.

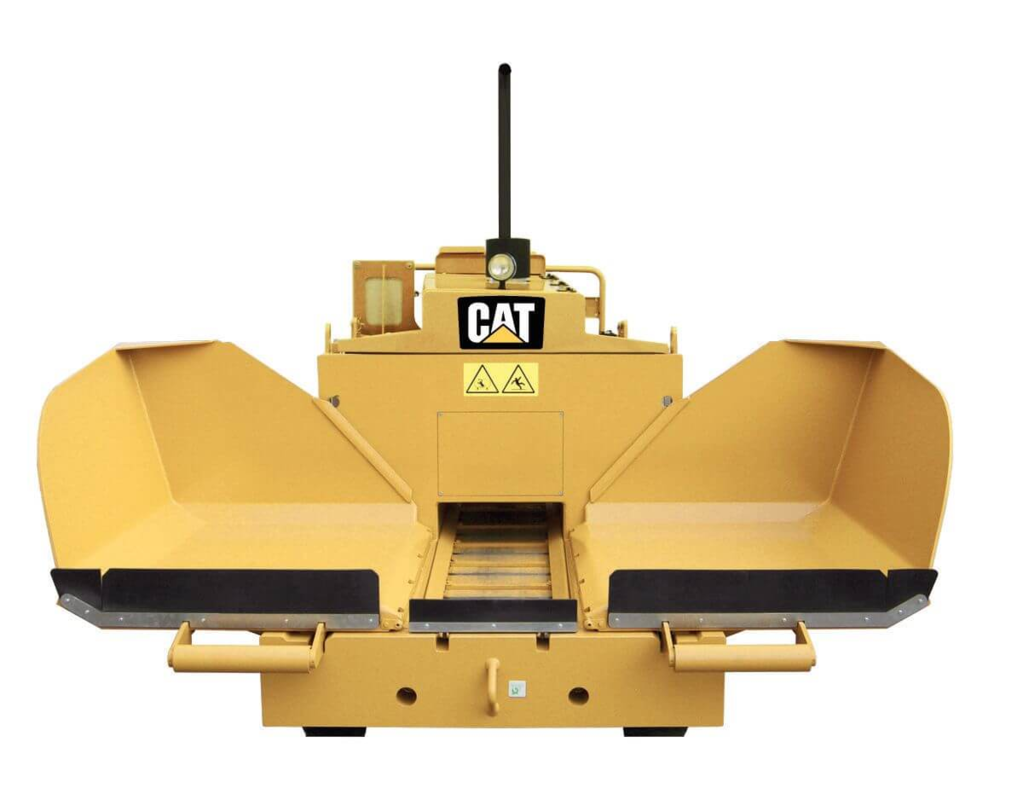

Material Feeding System

The hoppers are hydraulically operated and independently controlled facilitating applications close to walls or other vertical objects. The asphalt mix is carried to the screed by a heavy-duty steel conveyor and is distributed by two independently controlled augers, with reversible rotation. Three automatic material feed sensors provide correct amount of material to the screed. Augers can be hydraulically raised to avoid obstacles, facilitate machine loading on trailer and assembly of the paving width reduction option group. Conveyor and augers are reversible.

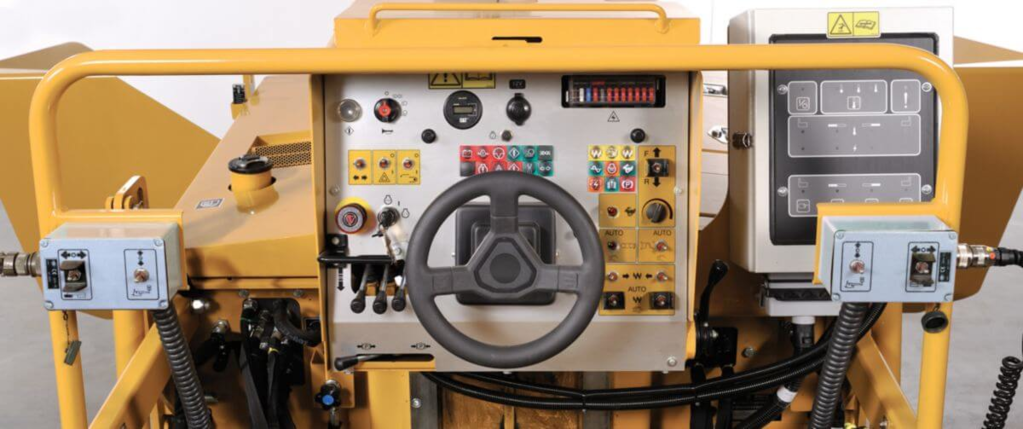

Operator's Platform

The operator drives the paver from the platform positioned behind the screed. The console panel is fully equipped with comprehensive controls allowing a single operator to conveniently monitor all machine functions. The operator platform is fitted with an operator presence detector enabling machine functions when the operator is in the driving position.

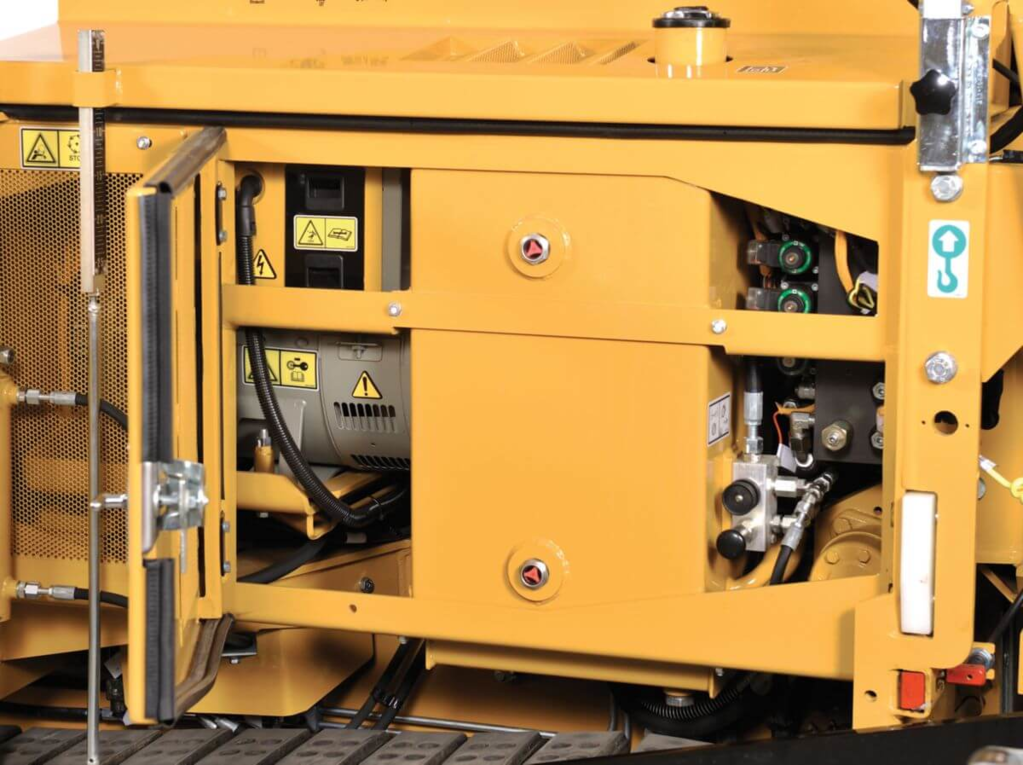

Serviceability

The AP255E ensures excellent access to all machine parts requiring scheduled maintenance. Large access doors provide quick and easy inspection of main components.
