Cat 300.9D VPS & HPU300

Dette produktet er utgått fra vårt sortiment.
Maskinvekt: 1 088 kg
Skuffestr.: 30 l
Bruttoeffekt: 13,7 kW/ 18 hk

Utgått produkt

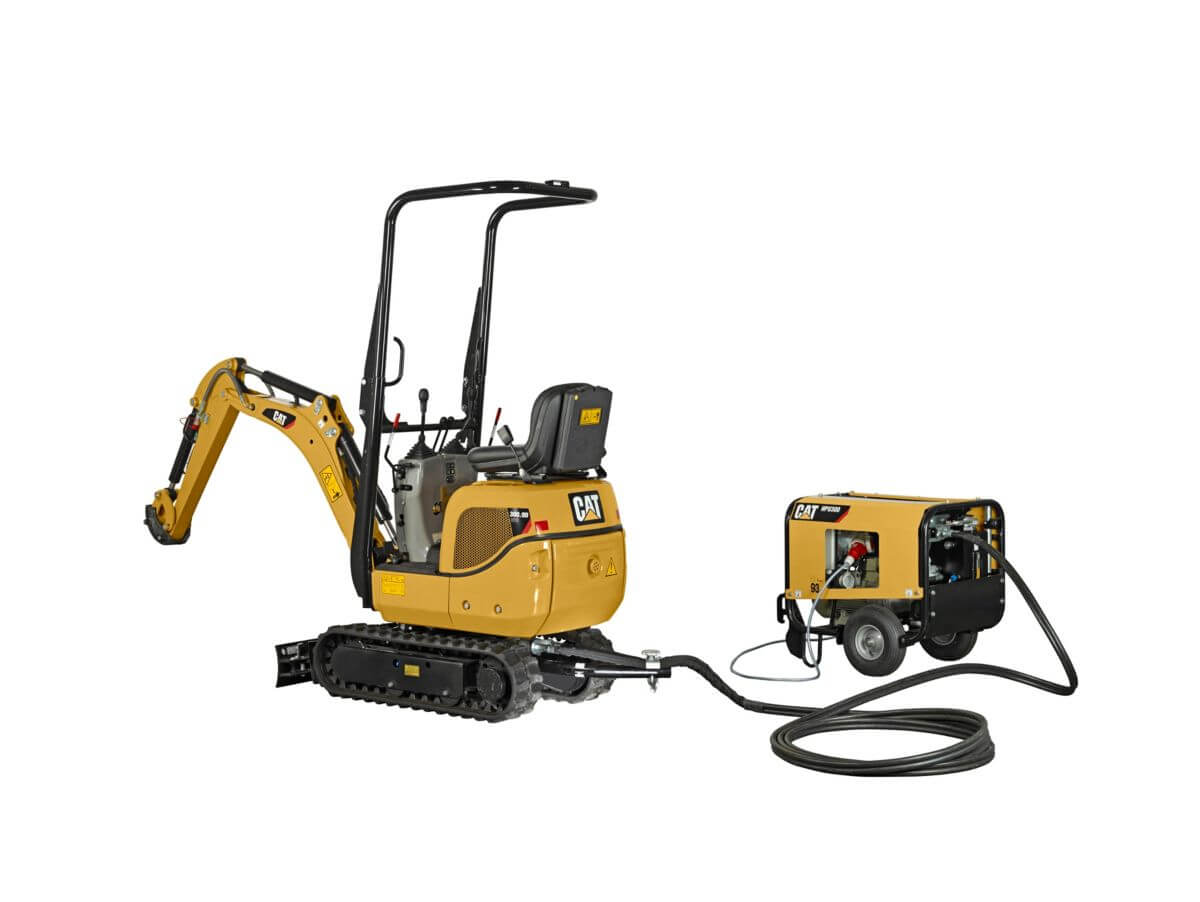

300.9D VPS & HPU300 Mini Hydraulic Excavator

Om Cat 300.9D VPS & HPU300

Dette produktet er utgått fra vårt sortiment. The innovative 300.9D VPS with HPU300 Mini Excavator delivers versatility in a compact size with a choice of diesel or electric power.

CAT 300.9D VPS + Cat HPU300

Cat 300.9D VPS er i utgangspunktet helt lik standard 300.9D, kun 100 kilo tyngre. Den har en undervogn som kan breddes hydraulisk fra 711 mm til 864 mm og et skjær som også kan foldes til samme størrelse. Dette gjør at du kan belte gjennom de smaleste passasjer for så å jobbe med full bredde. Doserskjæret har flytfunksjon, som gjør finplanering og opprydding til en lek.

VPS står for Versatile Power Supply. Med VPS har du muligheten til å kjøre på dieselmotoren, eller koble deg på en hydraulisk pumpe via to slanger, og maskinen går på strøm. Perfekt for innendørs arbeid.

Minigraveren har 18 hk, og veier 1 088 kg.

Dieselmotoren har 13 hk og veier 192 kg.

Redskap og utstyr til denne maskinen

Spesifikasjoner

Operating Specifications - 300.9D VPS

Digging Depth	68 in
Dumping Height - Maximum	80 in
Reach at Ground Level	119 in
Bucket Force	2000 lbf
Stick Force	1012 lbf

Motor

Motormodel	Yanmar 3TNV70
Net Power	13 HP

Engine - 300.9D VPS

Engine Type	Liquid Cooled, 3 Cylinder, Diesel
Fuel Tank Capacity	2.6 gal (US)
Gross Power	13 HP

Weights

Operating Weight

2399 lb

Dimensions - 300.9D VPS

Length × Width × Height	2476 × 700 × 1507 mm (108 × 28 × 59 in)
Operating Weight	2399 lb
Shipping Weight	2178 lb

Hydraulic System - 300.9D VPS

Operating Pressure - Front Linkage and Travel	2466 psi
Operating Pressure - Swing Gear	1015 psi
Pump Flow	6 gal/min
Pump Type	Gear
Rotation Speed	8 r/min
Hydraulic Tank Capacity	3.7 gal (US)

Blade - 300.9D VPS

Dig Depth	7 in
Height	8 in
Lift Height	8 in
Width	28 in

Dimensions - HPU300

Length × Width × Height	930 × 720 × 1000 mm (36.5 × 28.3 × 39.5 in)
Operating Weight	423 lb

Hydraulics - HPU300

Connecting Hose Length	32.8 ft
Flow Rate	5.3 gal/min
Hydraulic Oil Tank Capacity	2.4 gal (US)
Operating Pressure	2756 psi

Motor - HPU300

Input Current	16A
Motor Type	3 Phase Electric Motor
Performance	10 HP

Travel System - 300.9D VPS

Track Width	7.1 in
Travel Speed	1.1 mile/h

Egenskaper

Versatility in a Compact Size

The 300.9D VPS with HPU300 features Dual Mode Selection for a choice of diesel or electric power. This innovative machine delivers zero emissions from electrical supply, low noise, superior power and control. Easily change from diesel to electric power.

Compact Dimensions

Easily drive through narrow passages and doors with the compact 300.9D Mini Excavator. Both indoor and outdoor jobs are accessible with the under 1000 kg (2,205 lb) weight making easy trailer transportation between sites possible.

Extending Undercarriage and Blade

An extending undercarriage and fold out dozer blade allow the machine to be configured for excellent working stability and optimum performance. Easy retraction, controlled from the operator's seat, enables the machine to pass through narrow openings.

Foldable Safety Frame

A protective ROPS safety frame structure mounted on the front of the machine allows fitting of a guard for extra operator protection during hammer use. The structure folds down in a few seconds for easy machine transportation and storage.

Simple Controls

The operator area is spacious and laid out to provide comfort and ease of operation. Smooth, precision operation of functions is possible from independent controls allowing all skill levels to be productive with little practice.

Serviceability

Service and maintenance time is reduced to a minimum with a simple to open steel engine cover and all maintenance and greasing points easily accessible.
