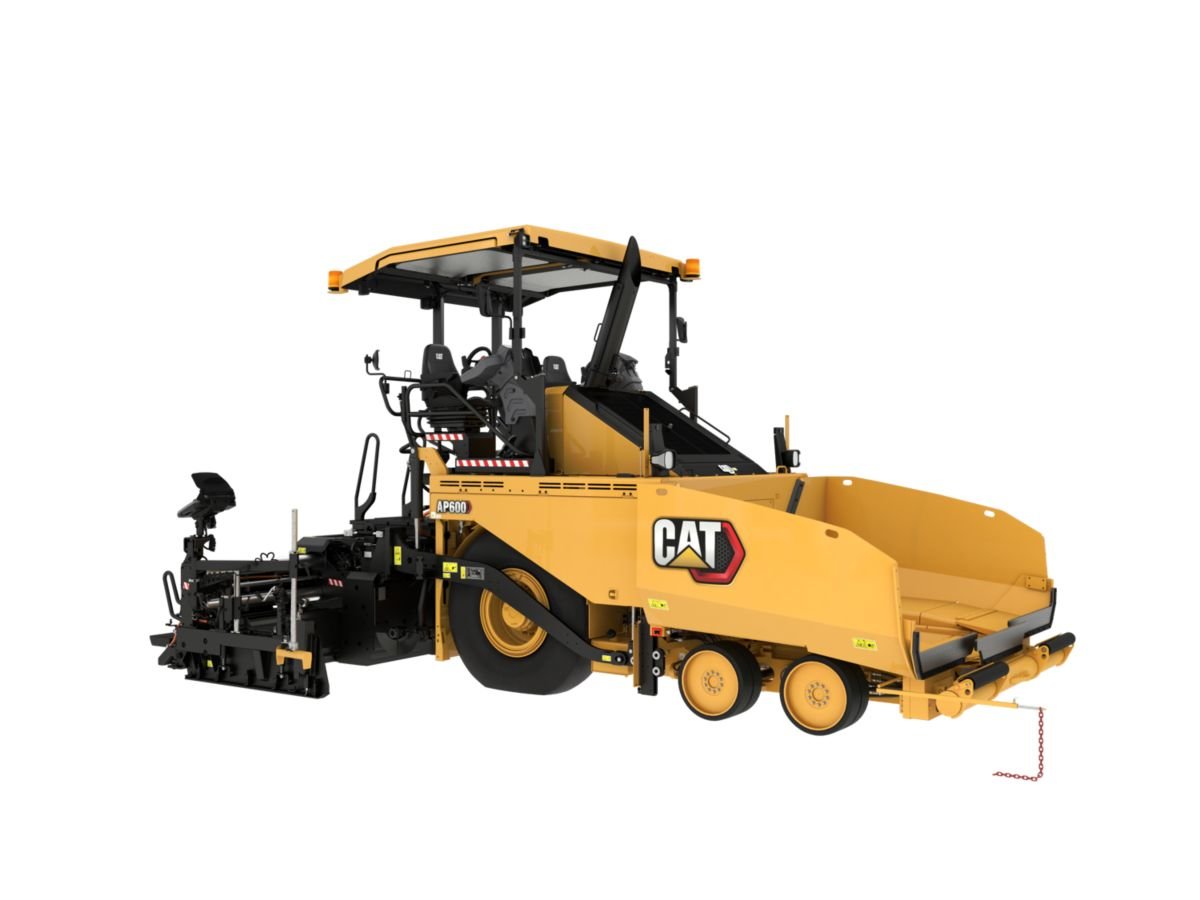

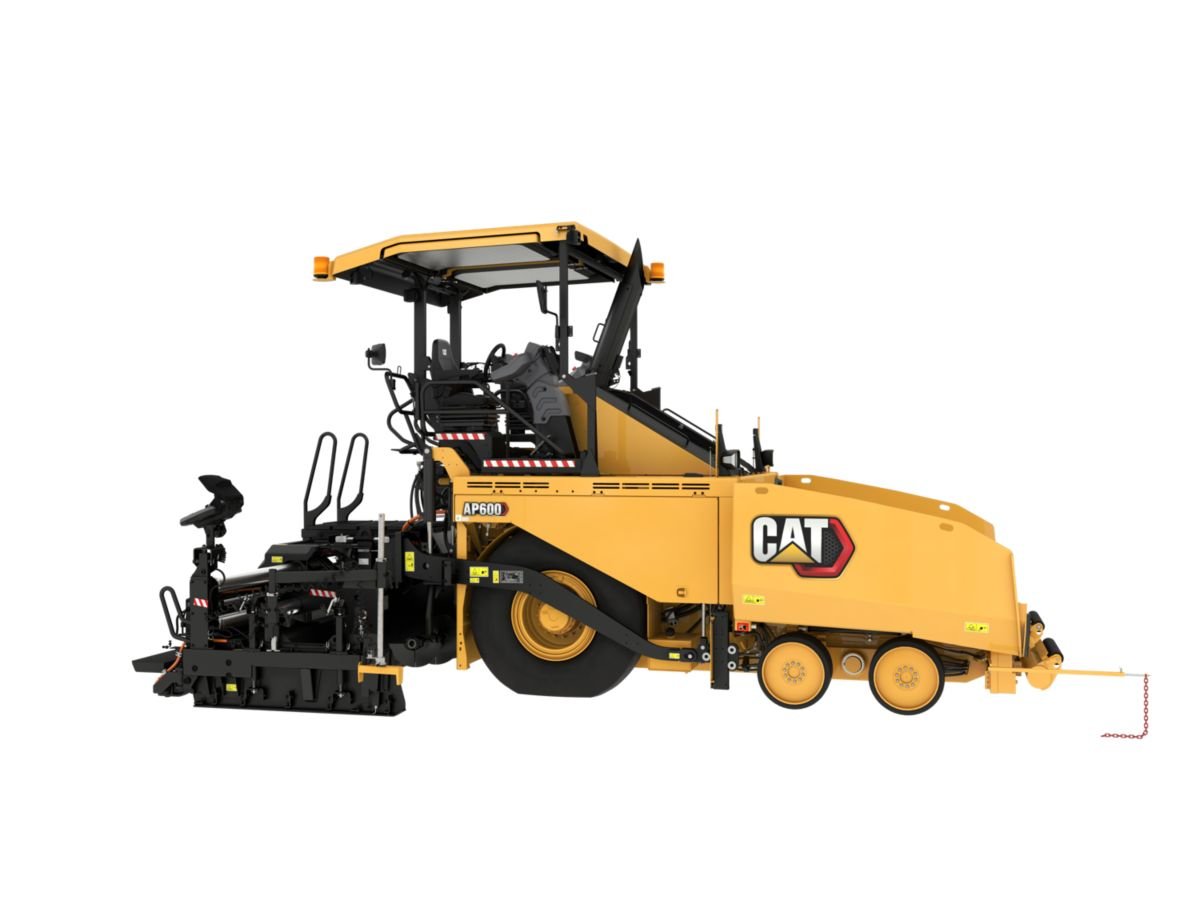

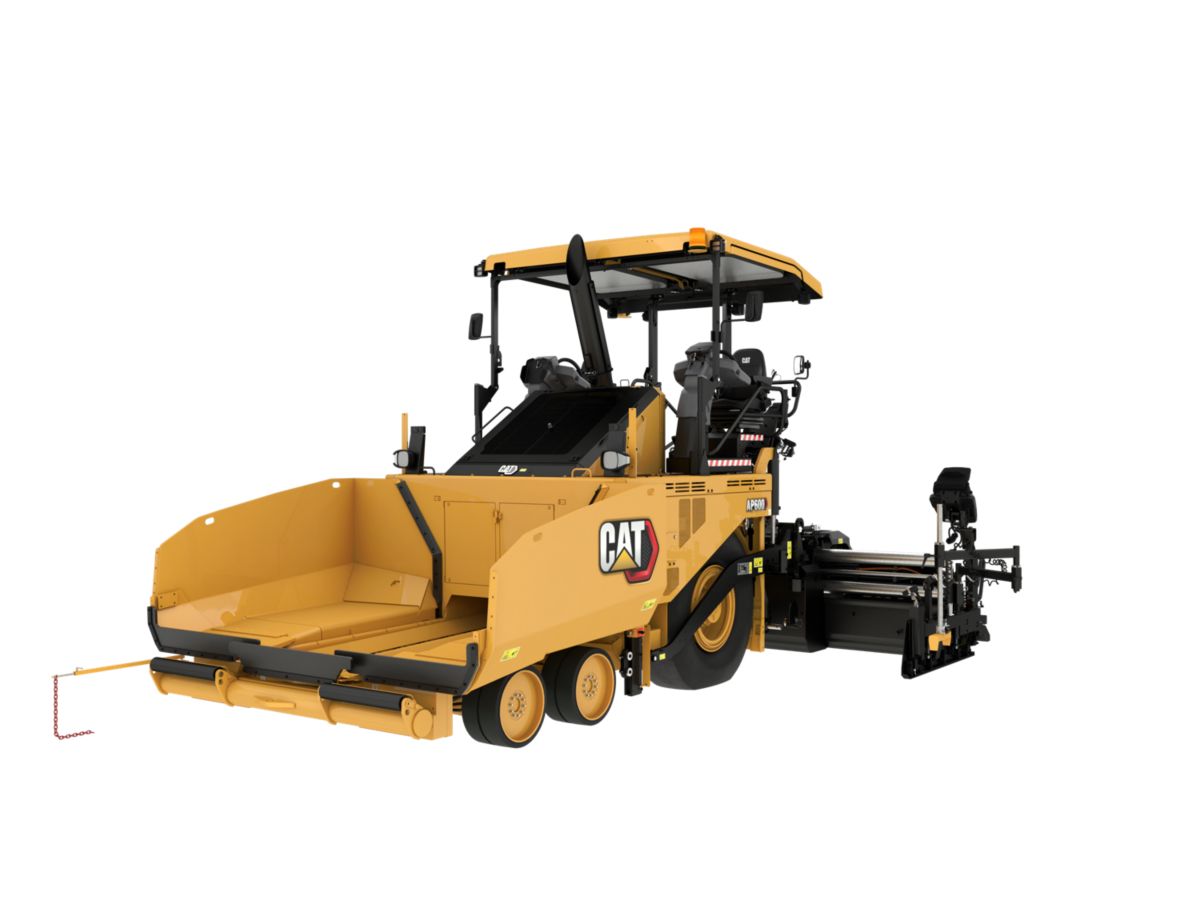

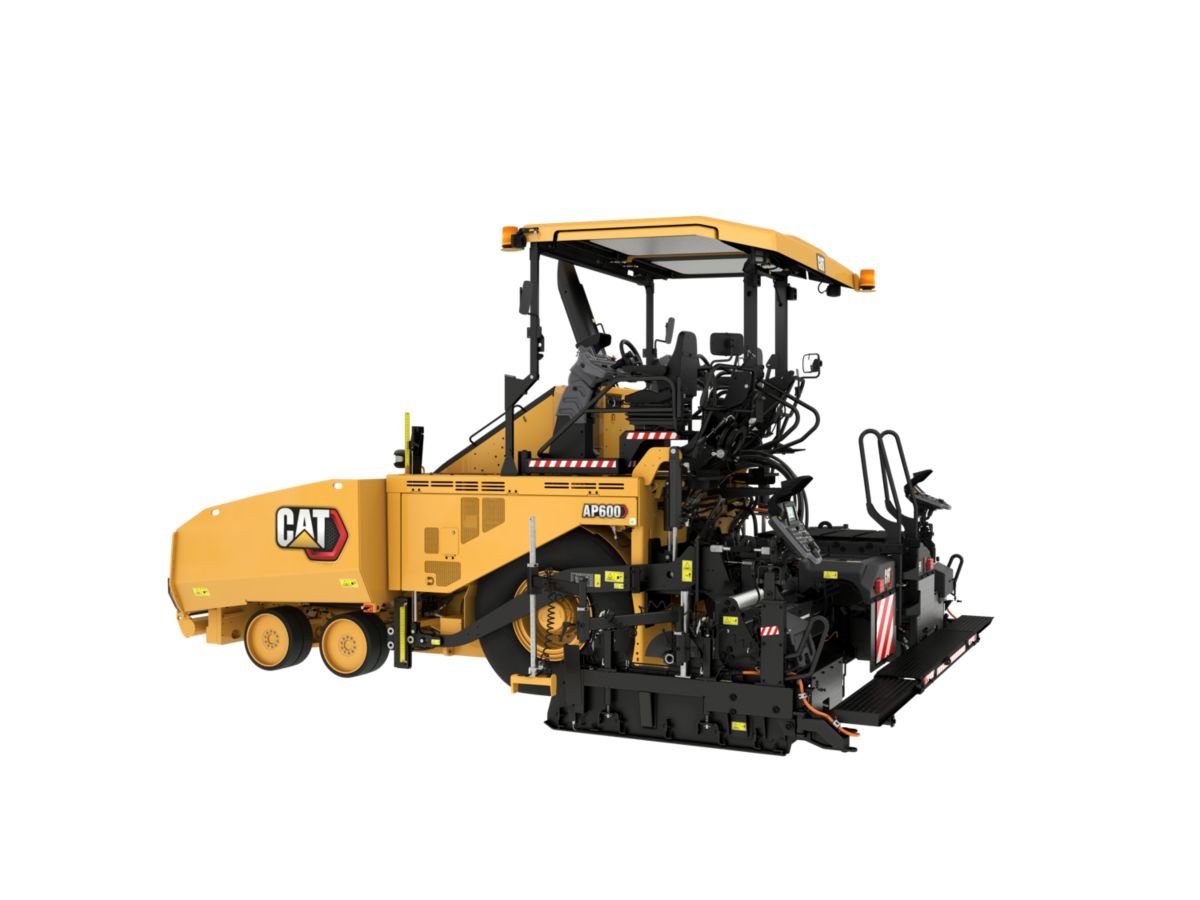

Cat AP600

Hjulgående asfaltutleggere

Om Cat AP600

The AP600 asphalt paver is a wheel paver that delivers a high-return on investment with it's fast-heating screed system, low fuel consumption, durable components, and easy to use technology. The tamper-bar screed design delivers smooth material flow and quality results with superior adjustment.

Spesifikasjoner

Motor

Gross Power	129 kW
Motormodel	Cat C4.4

Operating Specifications

Maximum Travel Speed	16 km/h
Maximum Paving Speed - With Tamper Bar Screed	25 m/min
Inside Turn Radius	1.5 m
Maximum Throughput Capacity	1300 tonnes/hr

Dimensjoner

Paving Range with SE50 VT	2.55 m - 8-0 m (8'4" - 26' 4")
Operating Length	6.8 m
Operating Width	3.3 m
Overall Height	3.9 m
Transport Length	6.6 m
Transport Width	2.55 m
Transport Height	3.1 m

Weights

Operating weight with SE50 VT	17794 kg
Shipping Weight - Paver Only	14018 kg

Påfyllingskapasitet

Fuel Tank Capacity	278 l
DEF Tank	19.1 l
Cooling System - Total	31 l
Hydraulic Oil Tank	219 l
Washdown Spray Tank	30 l

Egenskaper

High Return on Investment

Exclusive 70 kW integrated generator delivers fast, reliable screed heating and is designed for long life by the same team that developed the D7E electric drive dozer
Fast heating screed leads to more daily production, heating time in as little as 15 minutes
Excellent turning capability, fast travel leads to increased production

• Exclusive air flow design improves operating conditions for the crew and keeps components cooler for lasting durability

Technology That Works For You

Pave Start Assistant saves set-up profiles for repeatable use on future job sites including Grade Control settings, speed, paving width, paving depth, slope, crown, height, and other set-up features
A hopper level sensor (option) with temperature indication keeps the operator informed of material height and delivery temperatures, indicators are located in each tractor display
Exclusive screed heating system monitors elements for failure conditions and helps eliminate unnecessary replacement
Cat® Grade Control option is integrated into the tractor and screed displays for optimized operator efficiency

Quality Results, Higher Earnings

Versatile tamper-bar screed design delivers excellent ride, density, and mat texture while providing superior adjustment
Tow-point utilizes exclusive linkage design for optimal screed flotation
Exclusive 2-speed proportional control on the screed extenders
Cat Grade Control or Basic Grade Control options available

Low Owning and Operating Costs

Exclusive Eco-mode and Automatic Engine Speed Control, reduce fuel consumption and lower sound levels for better comfort and communication
4-pump feeder system is designed for high production in Eco-mode, leads to lower fuel consumption
Million cycle switches provide reliability
Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
Heating elements slide-out for easy replacement
Machined screed frames simplify screed plate replacement
Enhanced hopper flashing with increased memory and temperature resiliency for better performance during truck exchanges

More Comfort

Ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
Dual operating station provide back-up capability and complete control from either side of the machine, each station can swing-out beyond the frame for good all-around visibility
Heated seat option, pneumatic suspension, multiple adjustments, and tilting consoles provide day-long comfort
Eco-mode provides low sound levels that supports clear communication with the crew
High visibility 76 mm (3") seat belt helps with crew safety compliance
USB port simplifies software updates
Cup holders offer convenience

Easy Viewing Displays

Touch-screen displays with adjustable brightness control enable operators to fine-tune performance in various lighting conditions
Touch-screen access simplifies activation of the generator and auxiliary power, while also providing easy adjustments to screed plate heating temperatures, vibratory speeds, Cat Grade Control (option), and stored operator preferences
Operating displays can be tailored to specific language requirements with multiple options available

Product Link™ Elite

Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
Easily track location, machine hours, fuel usage, and idle time
Diagnostic codes are made available through online web applications

Service and Repair Kits

Paver and screed service and repair kits include the parts necessary to complete specific repairs
Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
Repair kits are identified by a single part number to make ordering easy
Select kits are available to be packaged as a kit by the dealer for over the-counter purchases or through the dealer service shop
