6015 Hydraulic Mining Shovel

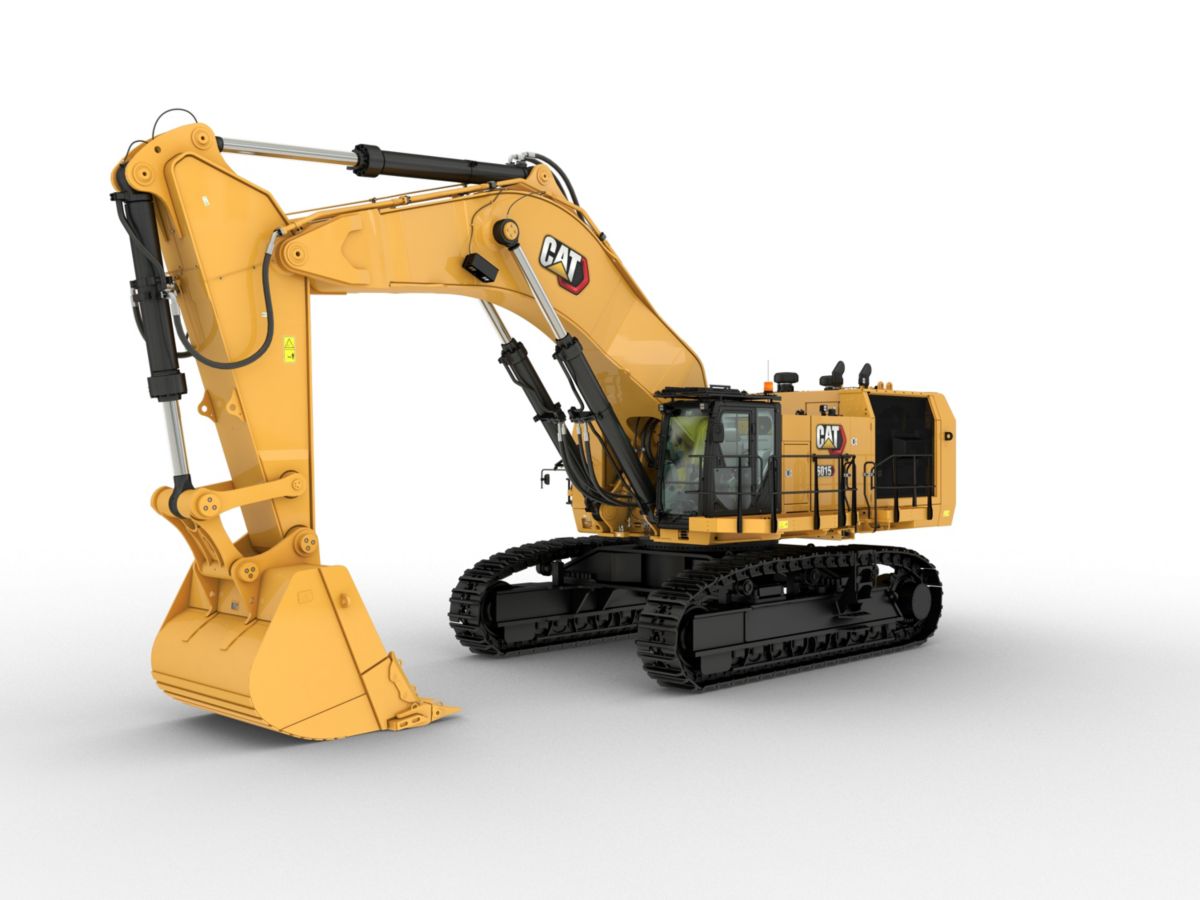

About the Cat 6015B Hydraulic Shovel



The new Cat 6015B Hydraulic Shovel meets your need to move more material at a lower cost, so you can achieve production targets, deliver on your commitments, meet deadlines – and maximize your profitability. Load more, make more.

Specifications

General
Note Specifications shown above apply to highly regulated, backhoe configuration. Lesser regulated and frontless configurations are also available.
Engine - U.S. EPA Tier 4 Final
Engine Model Cat® C27
Engine - Cat C27 with Tier 4 Final Emission Standards
Number of Cylinders 12
Engine - Equivalent to U.S. EPA Tier 2
Engine Model Cat® C27
Engine - Cat C27 with Tier 1 or Tier 2 Equivalent Emission Standards
Number of Cylinders 12
Aspiration Turbocharged and air-to-air aftercooled
Engine
Emissions U.S. EPA Tier 4 Final and EU Stage V; China Nonroad Stage III, equivalent to U.S. EPA Tier 2; Equivalent to U.S. EPA Tier 1
Weights
Note Operating weight includes: 700 mm (28 in) track shoes, 7.6 m (24 ft 11 in) boom, 3.4 m (11 ft 2 in) stick, standard rock bucket, 100% fuel and lubricants
Track
Number of Shoes - Each Side 46
Number of Track Rollers - Each Side 9
Number of Carrier Rollers - Each Side 3
Track Pads Double grouser
Drive
Gradeability - Travel Drives Approximately 42%
Hydraulic Track Tensioning With accumulator
Electrical System
System Voltage 24 V
Batteries 4 × 200 Ah (12 V each)
Alternator Rating 150 A (24 V) in total
Components (1) Emergency stop in cabin, engine module, pump room and on service station accessible from ground level
Components (2) Four maintenance free batteries
Components (3) Lockable battery isolation switch
Components (5) 14 LED high-brightness working lights
Components (4) 5 LED service lights
Components (6) 2 electric horns
Components (7) Two (2) lights for rear end
Components (9) One (1) beacon light on cabin roof
Components (8) One (1) light for machine deck/service
Hydraulic System
Main Pumps 3 × variable swash plate pumps
Pilot Pump 1 × gear pump
Swing Pump 1 × variable swash plate pump
Engine Fan Pump 1 × variable swash plate pump
Hydraulic Fan Pump 1 × variable swash plate pump
Filters (1) Full-flow high-pressure filters (200 μm) for main pumps
Filters (2) Full-flow filters (20 μm) for complete return circuit
Filters (3) Pressure filters (16 μm) for servo circuit
Filters (4) Full-flow filters (6 μm) for engine cooling return circuit
Filters (5) Swing charge filter (15 μm)
Filters (6) Pump case return screens (125 μm)
Swing System
Swing Drive Two (2) compact planetary transmissions with axial piston motors
Parking Brake Wet multiple disc brake, spring-loaded/hydraulically released
Swing Ring Cross roller bearing with sealed internal gearing
Features (1) Closed-loop swing circuit with speed control
Features (2) Hydraulic braking of swing motion when control is returned to neutral position or by counteracting control for stronger braking
Features (3) All raceways and the internal gearing of swing ring supplied by automatic central lubrication system
Centralized Service Area
Feature Accessible from ground level
Equipped With (1) Emergency stop
Equipped With (2) Quick couplings for: Diesel fuel and Grease
Undercarriage
Gradeability - Travel Drives 38°/78% (SAE J1309)
Hydraulic Track Tensioning With accumulator
Number of Shoes - Each Side 46
Number of Track Rollers - Each Side 9
Number of Carrier Rollers - Each Side 3
Components (1) Forged double-grouser track pads
Components (2) Chain links connected by hardened pins and bushings
Components (3) Postive Pin Retention (PPR2) sealed and greased track design
Components (4) All running surfaces of sprockets, idlers, rollers and track chain links hardened
Components (5) Fully hydraulic self-adjusting track tensioning system with accumulator
Components (6) Automatic hydraulic retarder valve to prevent overspeed on downhill travel
Components (7) Audible travel alarm
Operator's Cab
Components (1) Pressurized operator station with positive filtration
Components (2) Heated cab mirror
Components (3) Sliding upper door window (left-hand cab door)
Components (4) Glass-breaking safety hammer
Components (5) Removable lower windshield with in cab storage bracket
Components (6) Joystick Controls Alternate Patterns including ISO/JIS, BHL, MHI, KOBE, or SCM
Components (7) Beverage holder
Components (8) Literature holder
Components (9) AM/FM radio
Components (10) Radio with MP3 auxiliary audio port
Components (11) Two stereo speakers
Components (12) Storage shelf suitable for lunch or toolbox
Components (13) Color LCD display with warning, filter/fluid change, and working hour information
Components (14) Adjustable armrest
Components (15) Height-adjustable joystick consoles
Components (16) Neutral lever (lock out) for all controls
Components (17) Travel control pedals with removable hand levers
Components (18) Two power outlets, 10 amp (total)
Components (19) Laminated glass front upper window and tempered other windows
Automatic Lubrication System
Type (1) Central bank lubrication system
Type (2) Grease is automatically applied to all attachment pivot points (except bucket linkage) and slew bearing
Type (3) Standard grease reel on machine for bucket linkage
Type (4) Grease refill service point accessible from ground
Attachments
Type (1) Boom and stick torsion-resistant with welded box design
Type (2) High-tensile steel with solid steel castings at pivot areas
Type (3) Boom and stick stress-relieved after welding
Type (4) Float valve for boom down function
Buckets Equipped With – Special liner material covering main wear areas inside and outside – Lip shrouds – Wing shrouds – Heel shrouds
Backhoe Attachment (BH) - Backhoe
Number of Teeth 5
Tooth System Cat C70 or M75

Features

Powerful Engine

Powerful Engine

Optimized Truck Match

Optimized Truck Match

Productivity Enhancing Cat Buckets and G.E.T.

Productivity Enhancing Cat Buckets and G.E.T.

Proven Cat Cab Design

Proven Cat Cab Design

Cat Undercarriage Design

Cat Undercarriage Design

Robust Structures

Robust Structures

Fuel Efficiency Technologies

Fuel Efficiency Technologies

Closed-Loop Swing System

Closed-Loop Swing System

Efficient Hydraulic System

Efficient Hydraulic System

Safety Enhancements

Safety Enhancements

Cat Technology Solutions

Cat Technology Solutions

Emissions Technology

Emissions Technology

Sustainability

Sustainability

Seamless Dealer Support

Seamless Dealer Support

Serviceability

Serviceability
