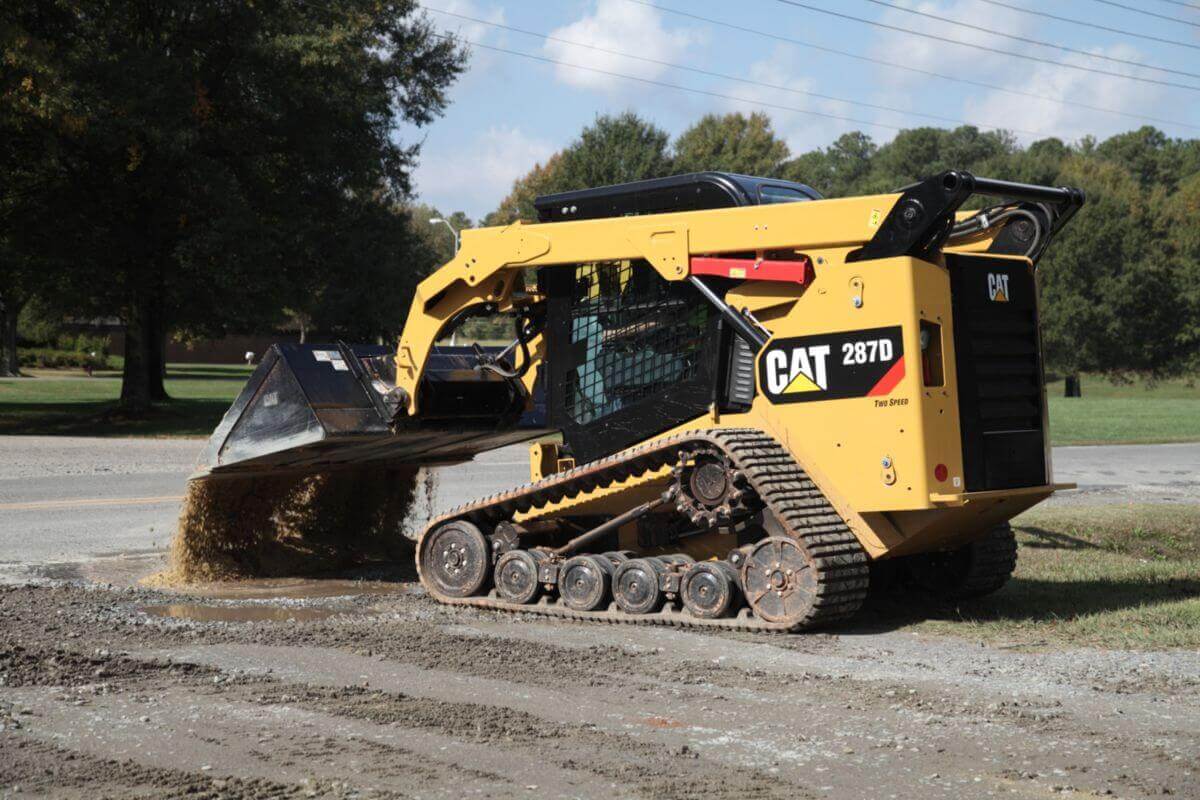

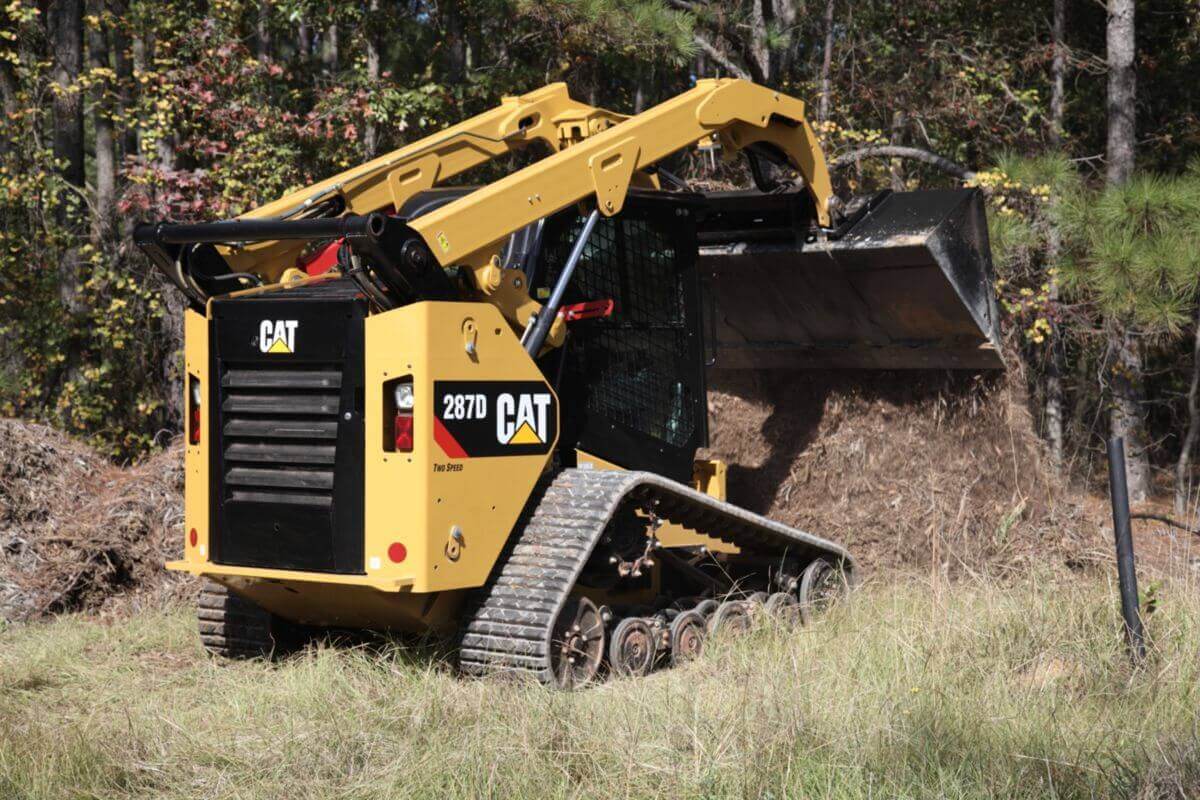

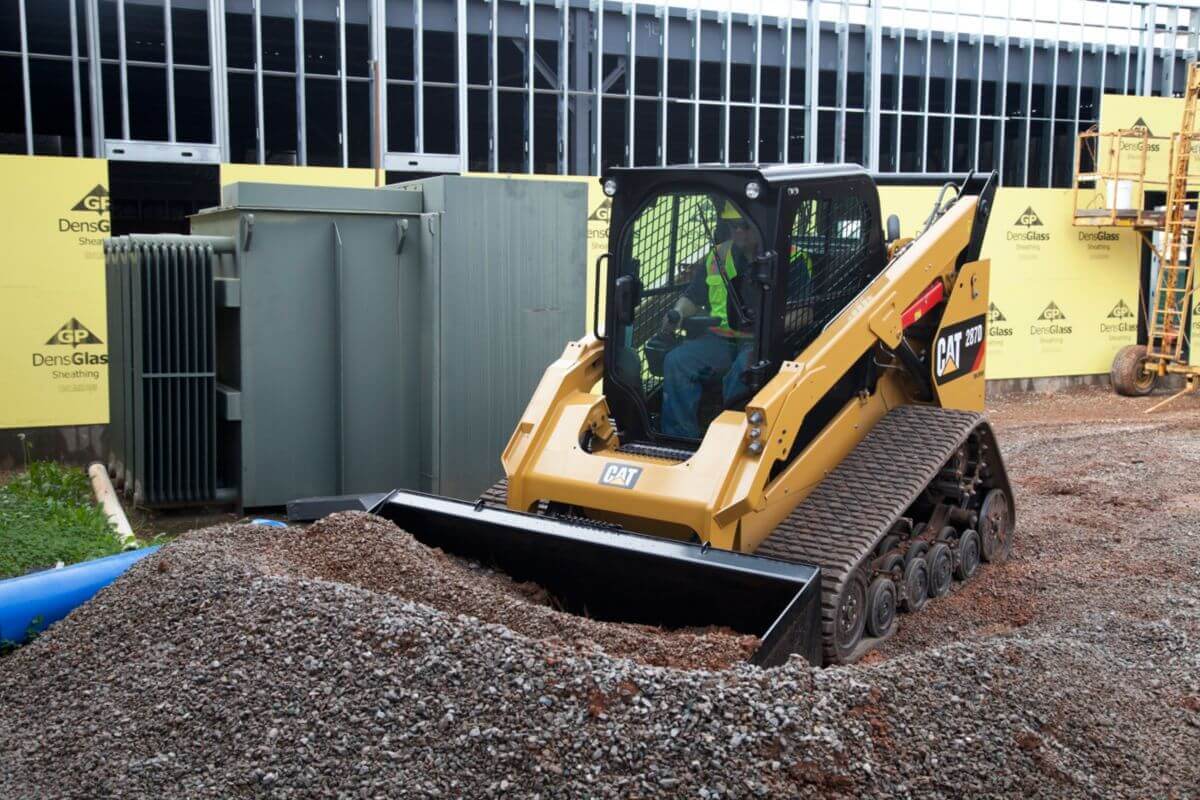

Cat 287D Multi Terrain Loader

About the Cat 287D Multi Terrain Loader

The Cat 287D Multi Terrain Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard, suspended undercarriage system provides superior traction, flotation, speed and ride quality with very low ground pressure and minimal ground disturbance across a wide range of underfoot conditions.

Specifications

Engine

Net Power	72.9 HP
Gross Power	74.3 HP
Gross Power - SAE J1995	74.3 HP
Net Power - SAE 1349	72.9 HP
Displacement	203 in³
Bore	3.7 in
Stroke	4.7 in
Net Power - ISO 9249	73.7 HP
Peak Torque - 1,500 rpm - SAE J1995	195 ft·lbf

Weights

Operating Weight

9929 lb

Operating Specifications

Rated Operating Capacities - 50% Tipping Load	4000 lb
Rated Operating Capacities - 35% Tipping Load	2800 lb
Ground Contact Area	2561 in²
Ground Pressure	3.9 psi
Tipping Load	8000 lb
Breakout Force - Tilt Cylinder	7291 lb
Rated Operating Capacity with Optional Counterweight	4250 lb

Dimensions

Length - Track on Ground	71.1 in
Overall Length - Track	90 in
Height - Top of Cab	83.2 in
Vehicle Width	78 in
Ground Clearance	8.9 in
Bucket Pin Height - Carry Position	7.5 in
Bucket Pin Height - Maximum Lift	125.1 in
Bucket Pin Reach - Maximum Lift	15.4 in
Clearance at Maximum Lift and Dump	94 in
Length - With Bucket on Ground	146.2 in
Length - Without Bucket	117.9 in
Maximum Overall Height	158.1 in
Maximum Reach - With Arms Parallel to Ground	50.9 in
Reach - Maximum Lift/Dump	30.8 in
Turning Radius from Center - Bucket	92 in
Turning Radius from Center - Coupler	58.8 in
Turning Radius from Center - Machine Rear	67.4 in

Hydraulic System

Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)	76 HP
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow	32 gal/min
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure	4061 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	44 HP
Hydraulic Flow - Standard - Loader Hydraulic Flow	23 gal/min
Hydraulic Flow - Standard - Loader Hydraulic Pressure	3335 psi

Power Train

Travel Speed - Forward or Reverse - One Speed	5.2 mile/h
Travel Speed - Forward or Reverse - Two Speed	8 mile/h

Service Refill Capacities

Cooling System	3.7 gal (US)
Engine Crankcase	3 gal (US)
Fuel Tank	24.8 gal (US)
Hydraulic System	13.7 gal (US)
Hydraulic Tank	10.3 gal (US)

Noise Level

Inside Cab**	81 dB(A)
Outside Cab***	103 dB(A)

Features

Comfortable Cab

Industry leading sealed and pressurized cab option provides a cleaner and quieter operating environment with excellent work tool visibility. Available high-back, heated, air ride seat with seat mounted adjustable joystick controls makes the D Series the industry leader in operator comfort.

Outstanding Power

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an industry exclusive electronic hand/foot throttle with decel pedal capability. Electronically controlled Cat C3.3B engine provides high horsepower and torque while meeting U.S. EPA Tier 4 Final (EU Stage IIIB) emission standards. High Flow XPS hydraulic system is available for applications that demand maximum hydraulic work tool performance.

Versatility to Tackle Any Job

Cat “Intelligent Leveling” system (ILEV) provides industry leading technology, integration and optional features such as dual direction self level, work tool return to dig and work tool positioner. Standard dual level suspension undercarriage combined with the optional Speed Sensitive Ride Control system provides better load retention, improved operator comfort and one of the smoothest rides in the industry. The dual suspension undercarriage features oscillating roller wheel assemblies that independently pivot to provide maximum track on the ground. Broad range of performance matched Cat Work Tools makes the Cat Multi Terrain Loader the most versatile machine on the job site.

Advanced Display

Maximize machine capability and control with optional Advanced Display providing on-screen adjustments for implement response, hystat response and creep control. The display also features multi-language functionality with customizable layouts, security system and rearview camera.
