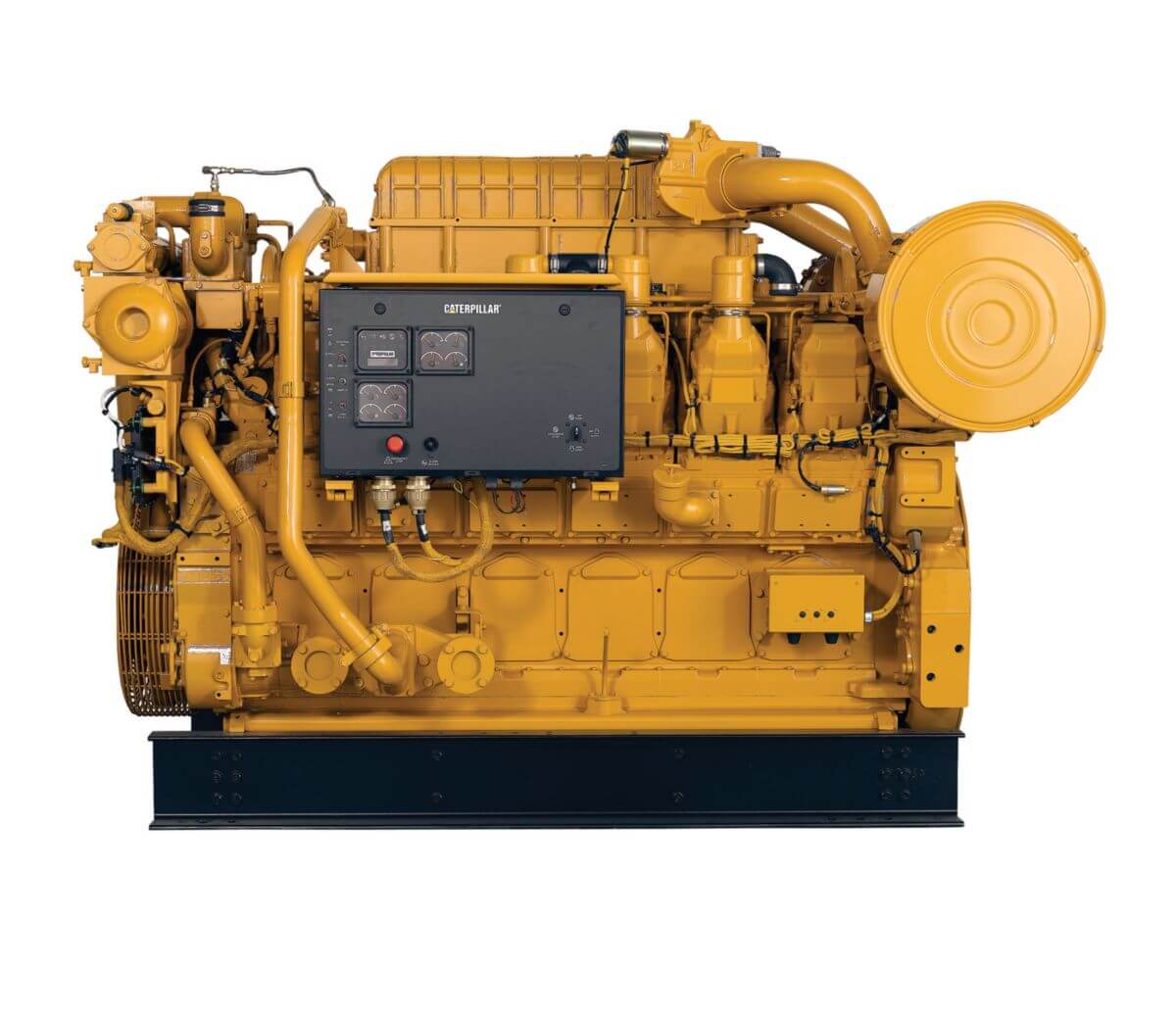

Cat 3512C

Land Mechanical Engines

Download specifications Request quotation
C833628

About the Cat 3512C



Cat 3512C (HD) engines set the standard in the drilling industry. For many years the 3500 has been the preferred choice by drillers due to their high performance, durability, and reliability in the oilfield while maintaining low emissions.The ideal application for the 3512C (HD) engine is mechanical drive for land drilling rigs.Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.3512C (HD) engines, with ratings: 932-1100 bkW (1250-1475 bhp) @ 1200 rpm meet U.S. EPA Non-road Tier 2 equivalent and CARB Tier 2 equivalent emission standards. They are available using U.S. EPA and EU Flexibility, and for other regulated and non-regulated areas.

Specifications

Engine Specifications
Minimum Rating 1250 BHP
Maximum Rating 1475 BHP
Emissions U.S. EPA Non-road Tier 2
Rated Speed 1200 r/min
Bore 6.69 in
Stroke 8.46 in
Displacement 3574 in³
Aspiration Turbocharged-Aftercooled
Governor and Protection ADEM A3
Engine Weight - Net Dry 11945 lb
Oil Change Interval 500
Rotation from Flywheel End Counterclockwise
Flywheel and Flywheel Housing SAE No. 00
Flywheel Teeth 183
Capacity for Liquids
Minimum Cooling System - Engine Only 41 gal (US)
Dimensions
Length 105.6 in
Width 70.5 in
Height 79.5 in

Features

Product Design

Product Design
- Developed specifically to meet the demands of oil and gas applications- Proven reliability and durability- Robust diesel strength design prolongs life and lowers owning and operating costs- Broad torque curve optimized for petroleum mechanical drive applications- Market-leading power density- Designed to perform in oilfield conditions, including high ambient and high altitude applications- Long overhaul life proven in oilfield applications- Core engine components designed for reconditioning and reuse at overhaul

Ease of Installation

Ease of Installation
- Inner-outer base mounting configuration simplifies rig integration - Wide range of attachments enable configuration flexibility - Inner base three-point generator mounting maintains factory alignment - Single lifting point simplifies installation work

Advanced Digital Engine Management

Advanced Digital Engine Management
- ADEM A3 engine management system provided engine control, monitoring, and protection.

Safety

Safety
- E-stop pushbutton on instrument panel - Air shutoff and explosion relief valves available - Configurable alarm, derate, and shutdown set points - Extra alarms, inputs, and outputs available

Custom Packaging

Custom Packaging
For any petroleum application, trust Caterpillar to meet your project needs with custom factory generator sets and mechanical packages. Cat engines, generators, controls, radiators, and transmissions can be custom designed and matched in collaboration with our local dealers to create unique solutions. Custom packages are globally supported and are covered by a one year warranty after startup.

Testing

Testing
Every Cat engine set is full-load tested to ensure proper engine performance.

Product Support Offered Through the Global Cat Dealer Network

Product Support Offered Through the Global Cat Dealer Network
More than 2,200 dealer outlets - Cat factory-trained dealer technicians service every aspect of your Cat petroleum product - Worldwide parts availability, service, and warranty - Preventive maintenance agreements available for repair-before- failure options - S•O•SSM program matches your oil and coolant samples against Caterpillar set standards to determine: • Internal engine component condition • Presence of unwanted fluids • Presence of combustion by-products • Site-specific oil change interval

Over 80 Years of Engine Manufacturing Experience

Over 80 Years of Engine Manufacturing Experience
Ownership of manufacturing processes enables Caterpillar to produce high quality, dependable products

Web Site

Web Site
For all your petroleum power requirements, visit www.catoilandgasinfo.com
