Cat C7 ACERT™

Industrial Diesel Engines - Lesser Regulated & Non-Regulated

Request quotation
C820021

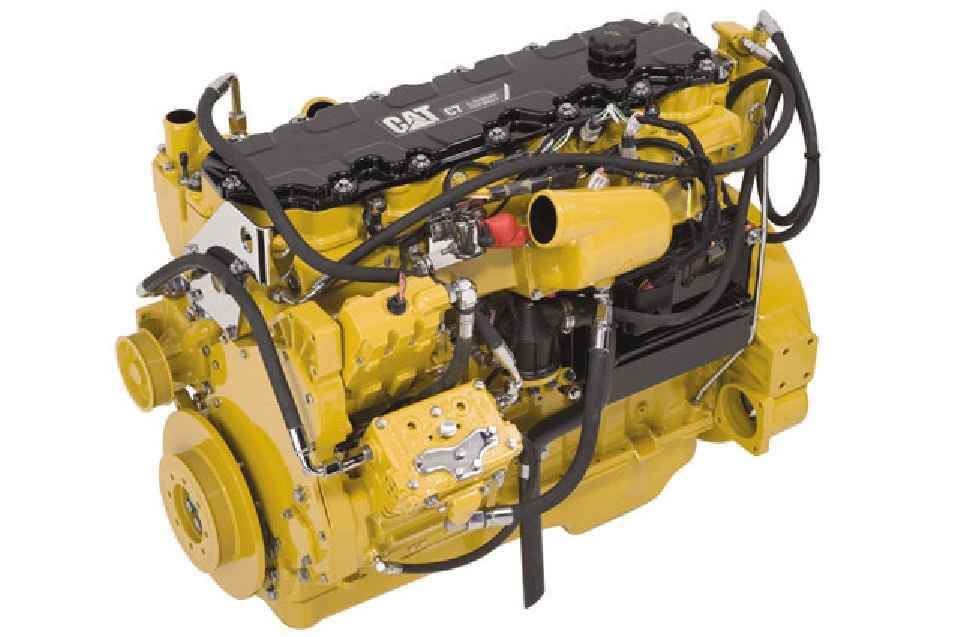

About the Cat C7 ACERT™



Demanding conditions, applications and environments make Cat® C7 ACERT™ Industrial Diesel Engines the perfect solution for your severe duty equipment. With decades of diesel engine innovation and expertise behind these engines, they deliver the low operating costs and legendary Cat reliability and durability that give you a powerful advantage. More importantly, they're backed by the world-class Cat dealer network ready to service and support every Cat industrial engine. Industries and applications powered by C7 ACERT engines include Agriculture, Ag Tractors, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Combines/Harvesters, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers and Underground Mining Equipment. The C7 ACERT engines, with ratings: 168-224 bkW (225-300 bhp) @ 1800-2200 rpm, meet China Stage II, EPA Tier 3 equivalent, EU Stage IIIA equivalent emission standards. They are available using U.S. EPA and EU Flexibility, and for other regulated and non-regulated areas.

Specifications

Power Rating
Minimum Power 225 BHP
Maximum Power 300 BHP
Rated Speed 1800-2200 rpm
Emission Standards
Emissions China Stage II, U.S. EPA Tier 3 Equivalent, EU Stage IIIA Equivalent
General
Engine Configuration Inline 6, 4-Stroke-Cycle Diesel
Bore 110 mm (4.33 in)
Stroke 127 mm (5.0 in)
Aspiration Turbocharged Aftercooled (TA)
Displacement 7.2 L (442 in³)
Compression Ratio 16.2:1
Combustion System Direct Injection
Rotation from Flywheel End Counterclockwise
Engine Dimensions - Approximate
Height 1032 mm (40.6 in)
Length 1053 mm (41.5 in)
Weight - Net Dry - Basic Operating Engine Without Optional Attachments 588 kg (1296 lb)
Width 758 mm (29.8 in)

Features

Features

Reliable, Quiet and Durable Power

Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

Broad Application Range

Broad Application Range
Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

Package Size

Package Size
Exceptional power density enables standardization across numerous applications. Multiple installation options minimize total package size. Ideal for equipment with narrow engine compartments.

World-class Product Support Offered Through Global Cat Dealer Network

World-class Product Support Offered Through Global Cat Dealer Network
  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
