Cat 910

Compact Wheel Loaders

View brochure Request quotation

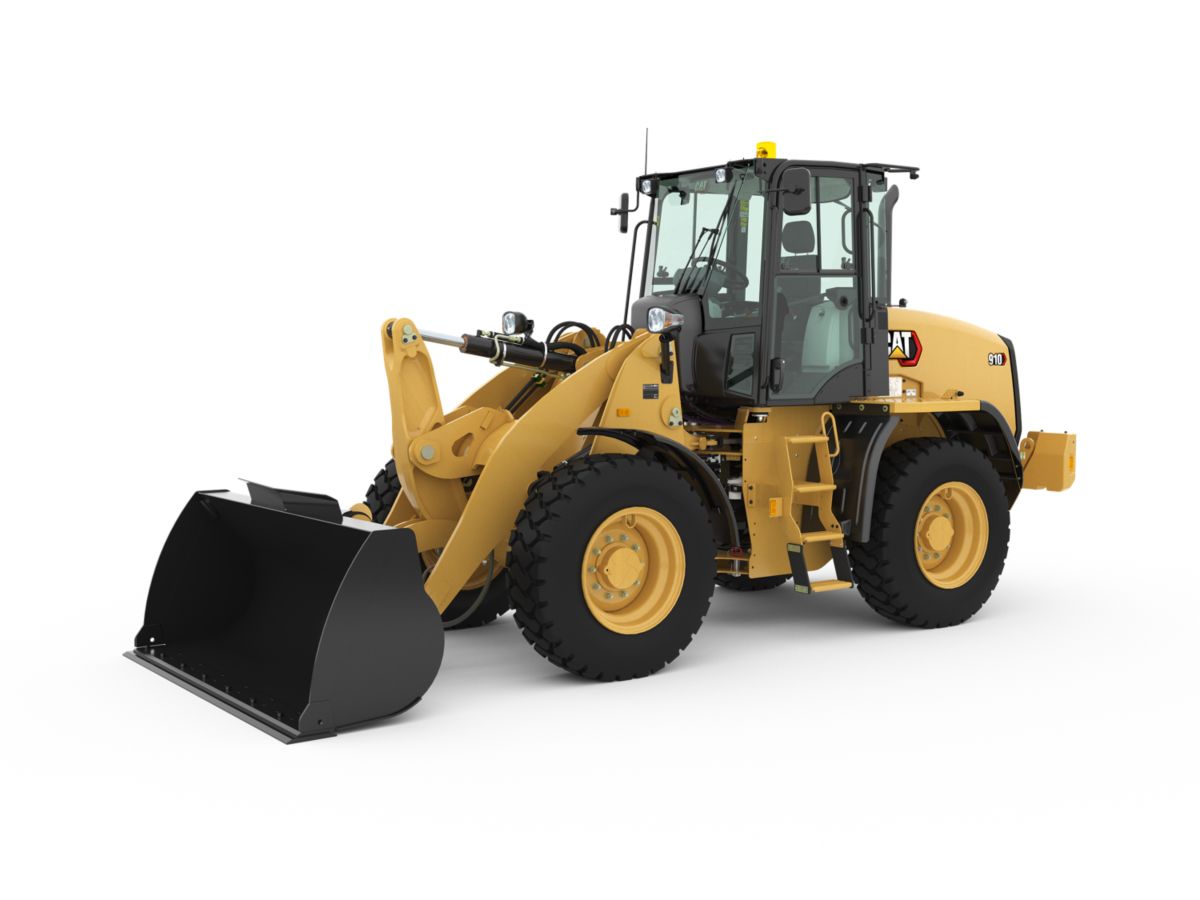

In een studio gemaakt

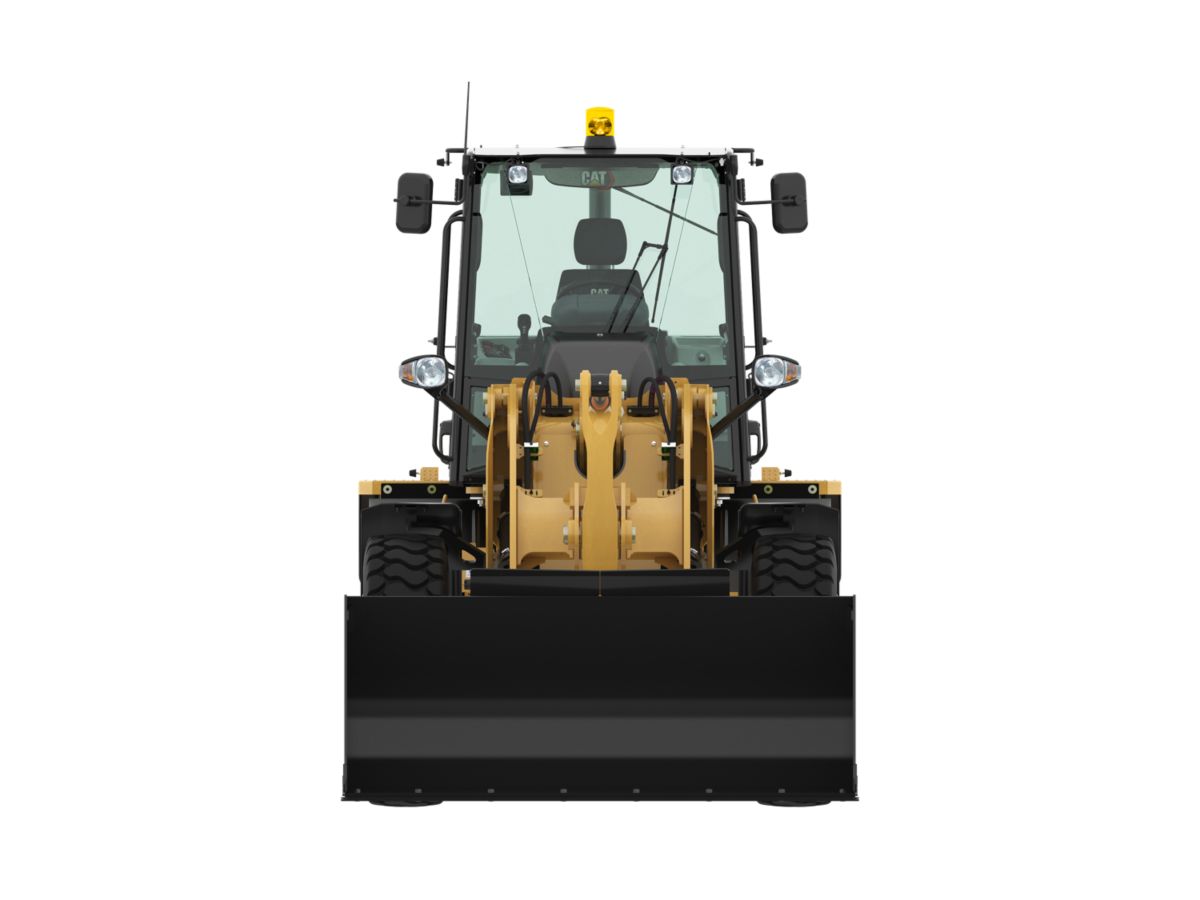

Vooraanzicht

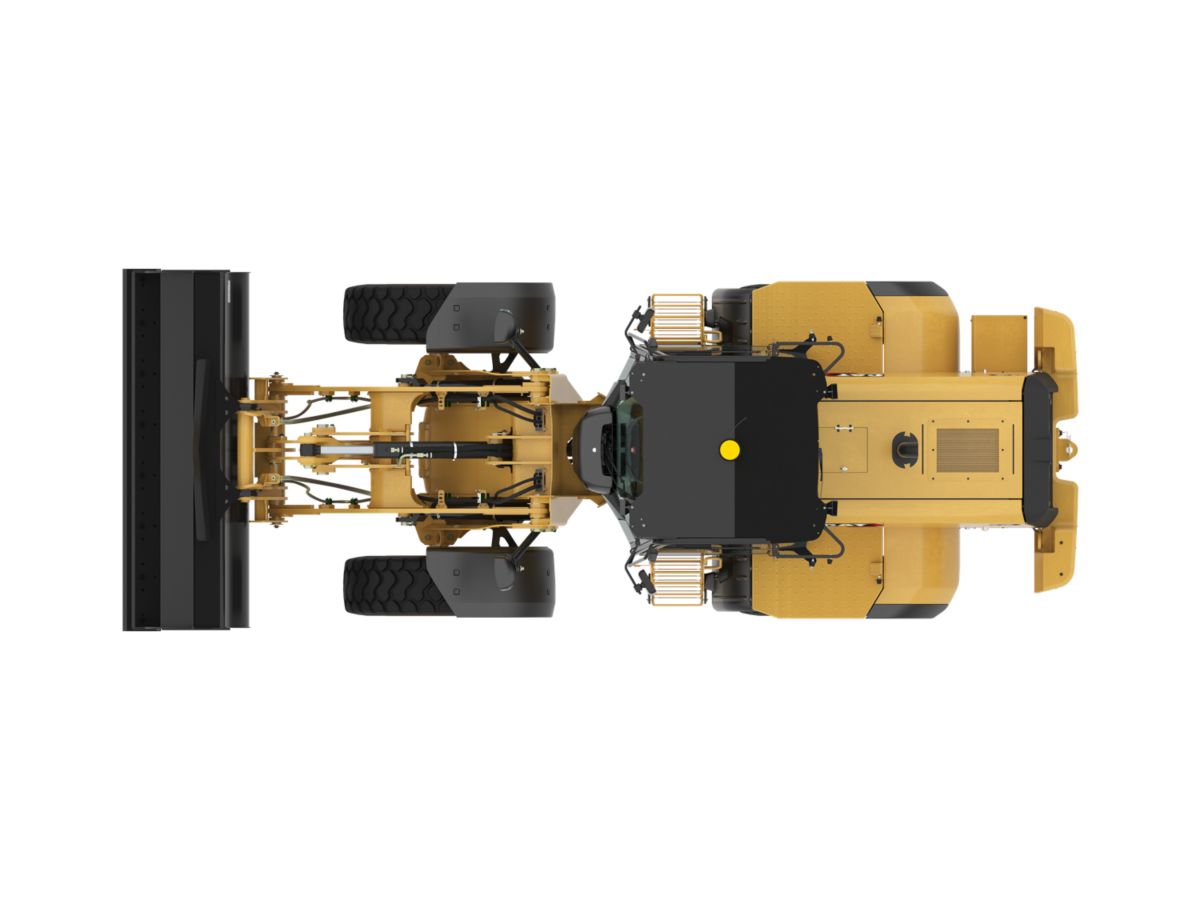

Bovenaanzicht

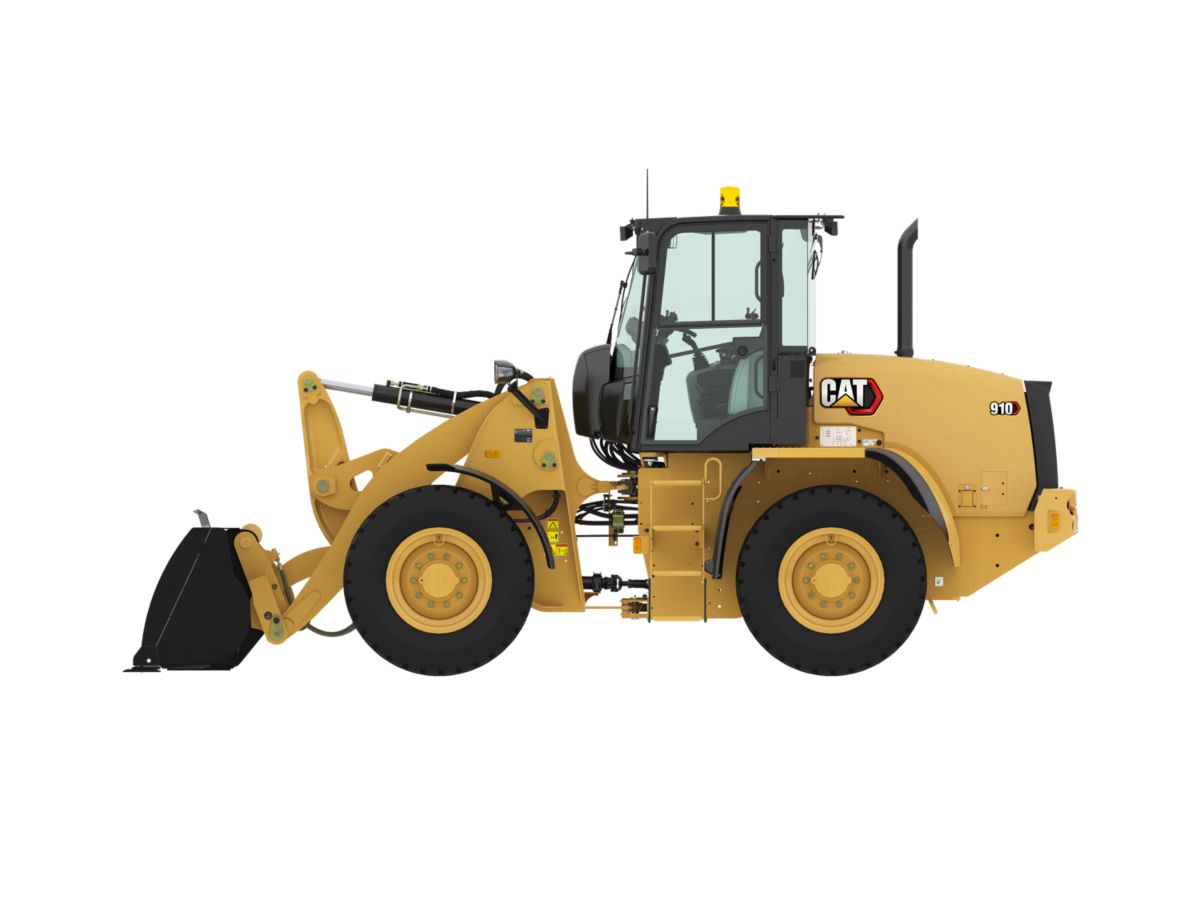

Aanzicht links

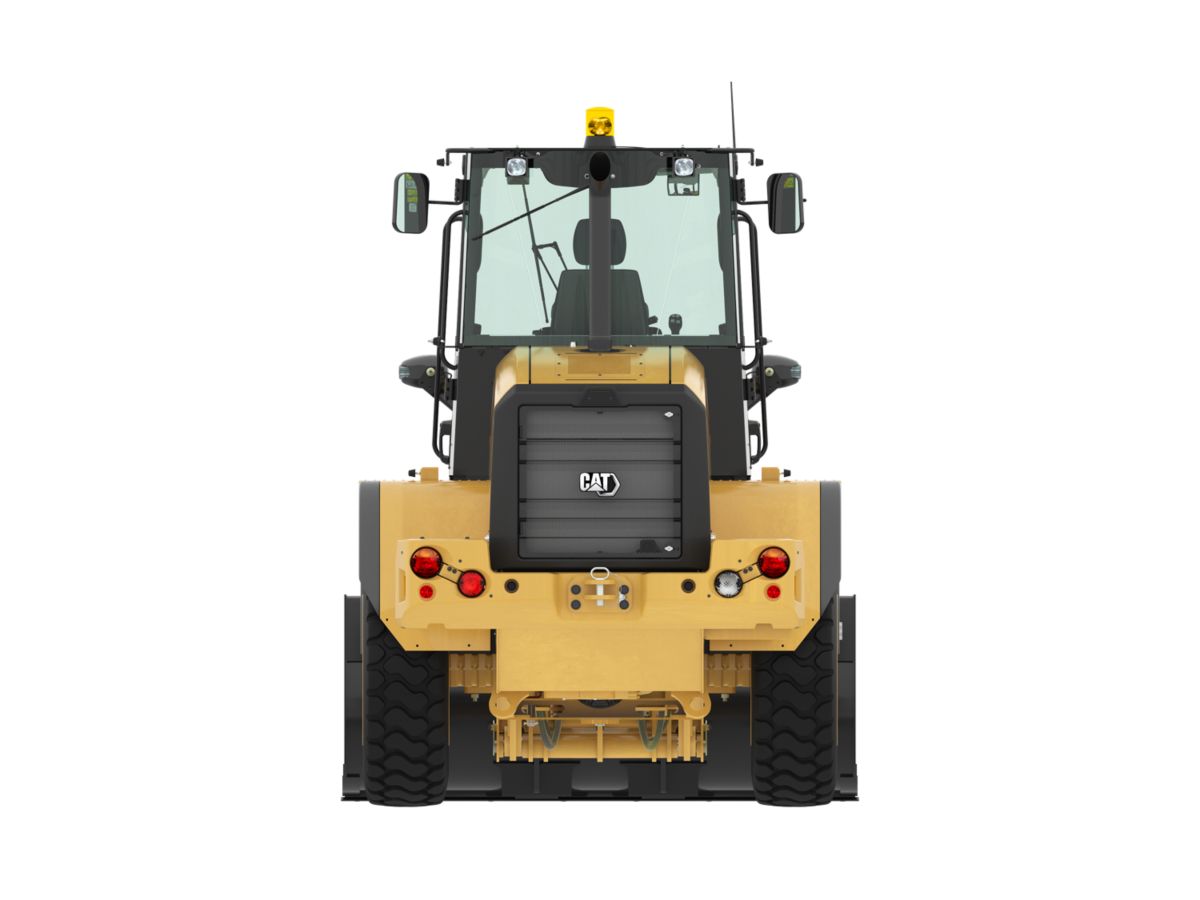

Achteraanzicht

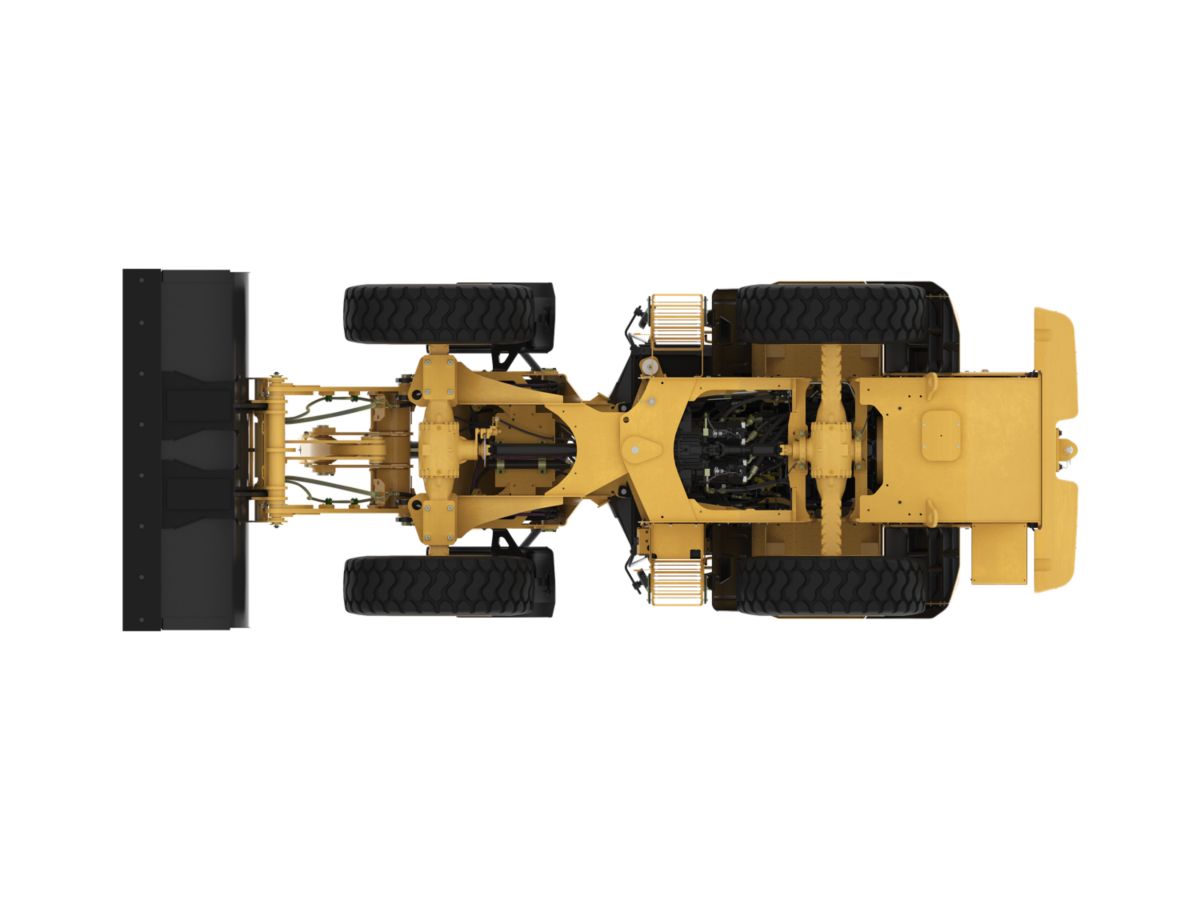

Onderaanzicht
Aanzicht rechts

About the Cat 910



The Cat® 910 Compact Wheel Loader features a C3.6 engine, the Cat Optimized Z-bar Loader linkage, various work tools, a state-of-the-art electro-hydraulic system, a tuned drivetrain, a cab with all-around visibility, extended service intervals and excellent service access, and standard fuel savings features.

Specifications

Engine
Maximum Gross Power - Rated Engine Speed 1800 r/min
Maximum Gross Power - ISO 14396 110 HP
Maximum Gross Power - ISO 14396 (metric) 112 HP
Rated Net Power - Rated Engine Speed 2200 r/min
Rated Net Power - SAE J1349 99 HP
Rated Net Power - ISO 9249 98 HP
Maximum Gross Torque - SAE J1995 335 ft·lbf
Maximum Gross Torque - ISO 14396 332 ft·lbf
Maximum Net Torque - SAE J1349 329 ft·lbf
Maximum Net Torque - ISO 9249 327 ft·lbf
Displacement 220 in³
Bore 3.85 in
Stroke 4.72 in
Engine Model Cat C3.6
Emissions Engine meets Tier 4 Final/Stage V emission standards.
Note Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.
Weights
Operating Weight 18102 lb
Buckets
Bucket Capacities 1.3-1.9 m3 (1.7-2.5 yd3)
Bucket Capacities - General Purpose 1.3-1.9 m³ (1.7-2.5 yd³)
Bucket Capacities - Light Material 2.5-3.5 m³ (3.3-4.6 yd³)
Steering
Maximum Working Pressure - Steering Pump 2683 psi
Steering Articulation Angle - Each Direction 40 °
Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed 3.2 s
Maximum Flow - Steering Pump 17 gal/min
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left 3.75 turns
Loader Hydraulic System
Hydraulic Cycle Time - Dump, at Maximum Reach 1.4 s
Hydraulic Cycle Time - Total Cycle Time 12.5 s
Maximum Working Pressure - Implement Pump 3408 psi
Relief Pressure - Tilt Cylinder 4931 psi
Hydraulic Cycle Time - Rackback 2.2 s
Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure 3046 psi
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift 5.2 s
Maximum Flow - Implement Pump 32 gal/min
Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure 3046 psi
Maximum Flow - Implement Pump - 4th Function, Maximum Flow 24 gal/min
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow 24 gal/min
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level 3.7 s
Service Refill Capacities
Cooling System 5.7 gal (US)
Fuel Tank 43.6 gal (US)
Hydraulic System - Including Tank 25.9 gal (US)
Hydraulic Tank 14.5 gal (US)
Transmission 0.8 gal (US)
Note DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.
Axles - Front Center Differential 2 gal (US)
Axles - Rear Center Differential 2 gal (US)
Engine Crankcase 2.6 gal (US)
Diesel Exhaust Fluid (DEF) Tank 4.8 gal (US)
Transmission
Note *Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1.
Forward and Reverse - Speed Range 3 25 mile/h
Forward and Reverse - Speed Range 2* 12.5 mile/h
Forward and Reverse - Speed Range 1* 6.3 mile/h
Tires
Note (2) In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
Standard Size 15.5 R25 L2 XTLA
Other Choices Include 17.5 R25 L2 XTLA; 15.5 R25 L3 XHA2; 17.5 R25 L3 XHA2; 17.5-25 L2/L3 SGL; 17.5-25 L3 HRL D/L-3A; 17.5 R25 L2 Snow
Note (3) Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Note (1) Other tire choices are available. Contact your Cat dealer for details.
Cab
ROPS ISO 3471:2008
FOPS EN ISO 3449:2008 (ISO 3449:2005)
Note (2) The declared dynamic operator sound pressure levels per ISO 6396:2008*, when the cab is properly installed and maintained, is 77 dB(A).
Note (3) The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC (as amended by 2005/88/EC) is 103 dB(A).
Note (1) Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (4) *The measurements were conducted with the cab doors and windows closed.
Axles
Front Fixed; Locking differential (standard)
Rear Oscillating ±11 degrees; Locking differential (Standard)

Features

Cat® C3.6 Engine

Cat® C3.6 Engine
EU Stage V and U.S. EPA Tier 4 Final compliant.
Cat® C3.6-motor

Cat Optimized Z-bar Loader Linkage

Cat Optimized Z-bar Loader Linkage
The Cat Optimized Z-bar Loader linkage combines the digging efficiency of a traditional Z-bar with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control.

Work Tools

Work Tools
The 910 features the Cat exclusive, Performance Series Buckets, as well as high visibility pallet forks. These tools enhance productivity and are available with either an Integrated Toolcarrier (IT) or ISO (wide) coupler style. Legacy coupler tools such as brooms, grapple buckets, multi-purpose buckets and other work tools remain compatible.

Hydraulics and Controls

Hydraulics and Controls
State of the art electro-hydraulic system provides low effort, fine control with fast cycle times. All-in-one joystick helps keep eyes on the work. Operator can adjust machine responsiveness with the push of a button, which allows the operator to set up the machine exactly the way they want it based on the application.

Tuned Drivetrain

Tuned Drivetrain
Smooth shifting and powerful acceleration is matched with modulated hydrostatic braking in the inching/braking pedal, creating a rhythm for material moving. Creeper and electronic engine speed control makes broom and snow blower work easy. Operator tunes between smooth or aggressive shifting with the push of a button.

Cab

Cab
All around visibility is further enhanced with the availability of a rearview camera. The deluxe cab ensures operator comfort with a heated, air suspension seat and easy to use controls. Available features such as Implement and Hystat Aggressiveness, Ride Control, Lift and Tilt Kickouts, Fork/Bucket Mode and Rimpull Control allow the operator to customize the machine via a soft touch keypad.

Serviceability

Serviceability
Extended service intervals and excellent service access make daily checks quick and easy allowing you to get to work sooner.

Efficiently Powerful

Efficiently Powerful
Efficiently Powerful with its high full turn tipping loads, powerful breakout forces and efficient engine power delivers a balanced solution for all customer applications.

Standard Fuel Savings Features

Standard Fuel Savings Features
Standard Fuel Savings Features such as Eco Mode, On Demand Cooling Fan, and Auto Engine Idle Shutdown make the 910 both powerful and fuel efficient.
