Cat 14

Motor Graders

View brochure Request quotation

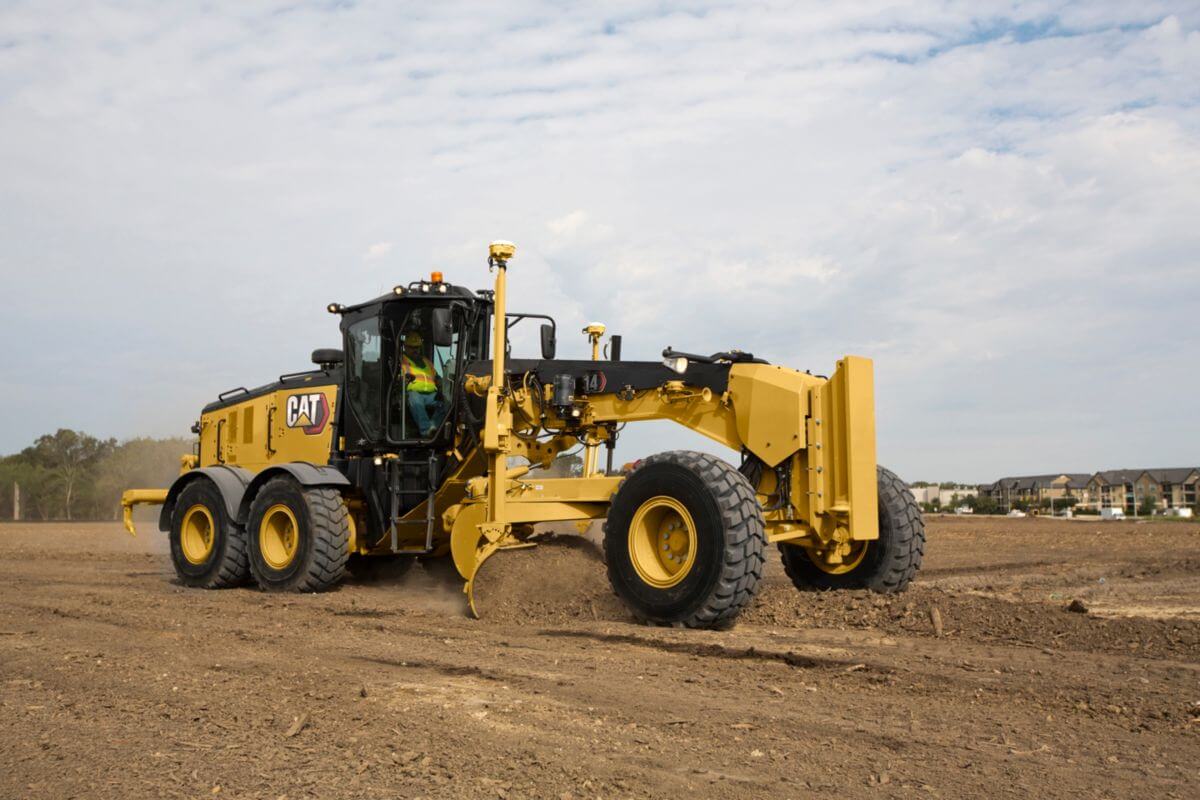

14 Motor Grader with push block and ripper

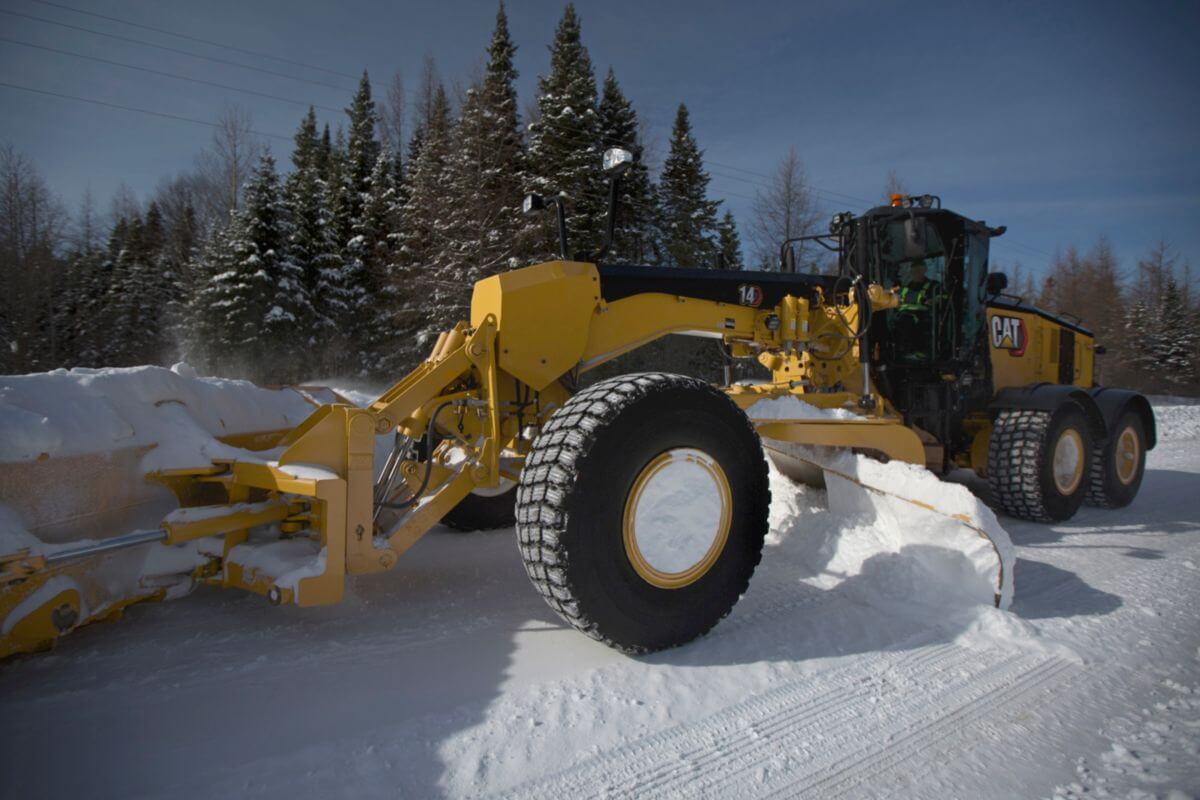

14 motor grader plowing with snow wing

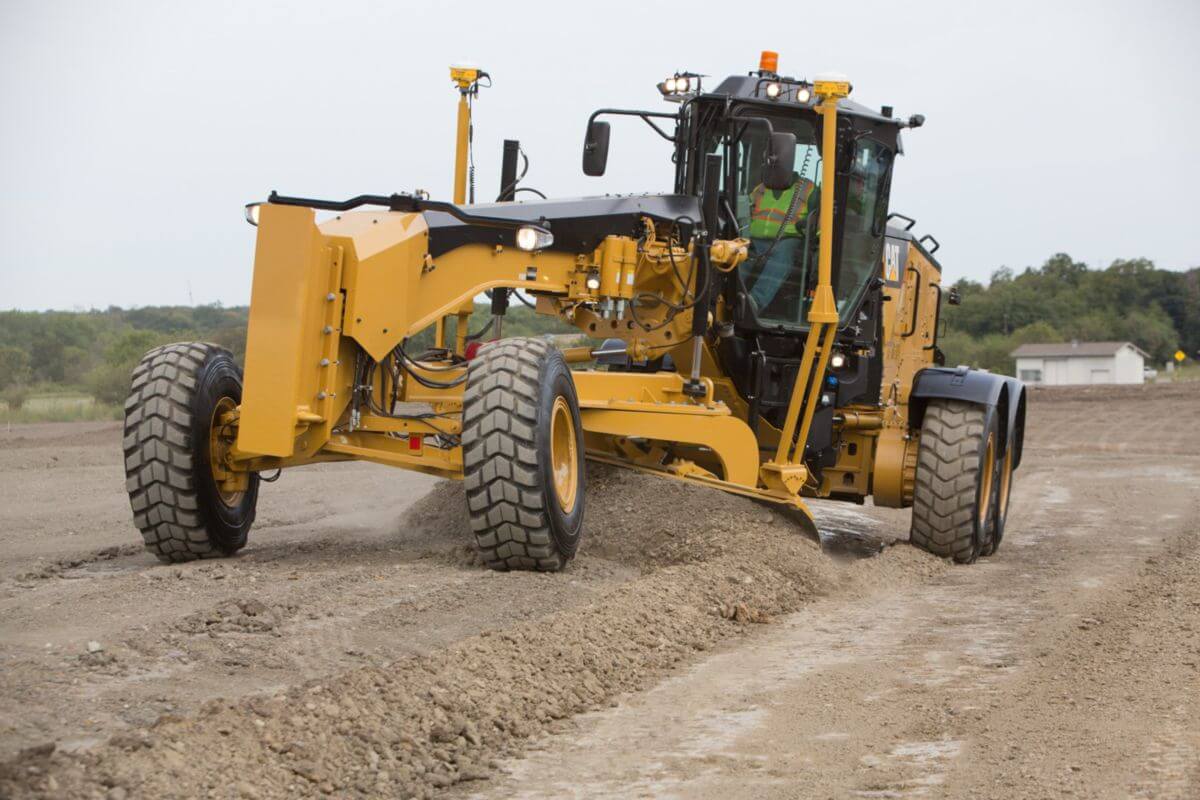

Leveling the ground with the 14 road grader
14 grader blading with GRADE Technology
Operating with advanced control joysticks on 14 grader

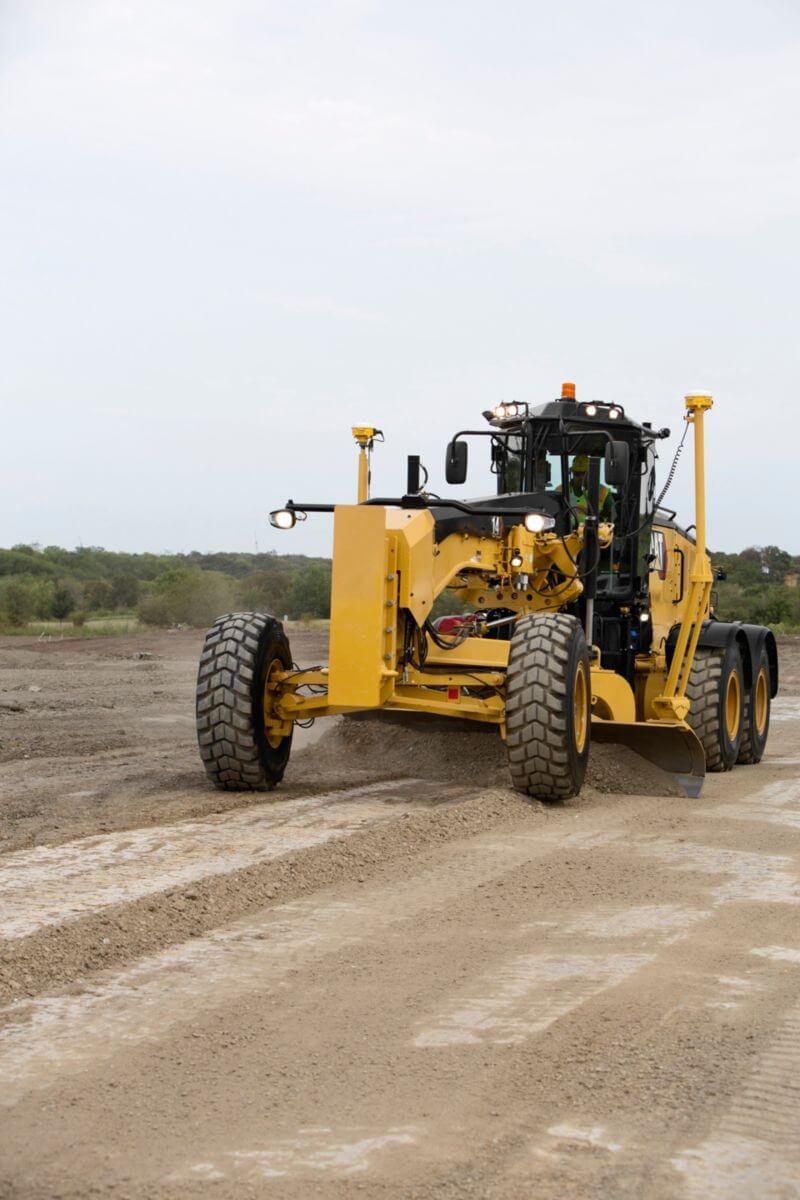

14 grading with GRADE technology

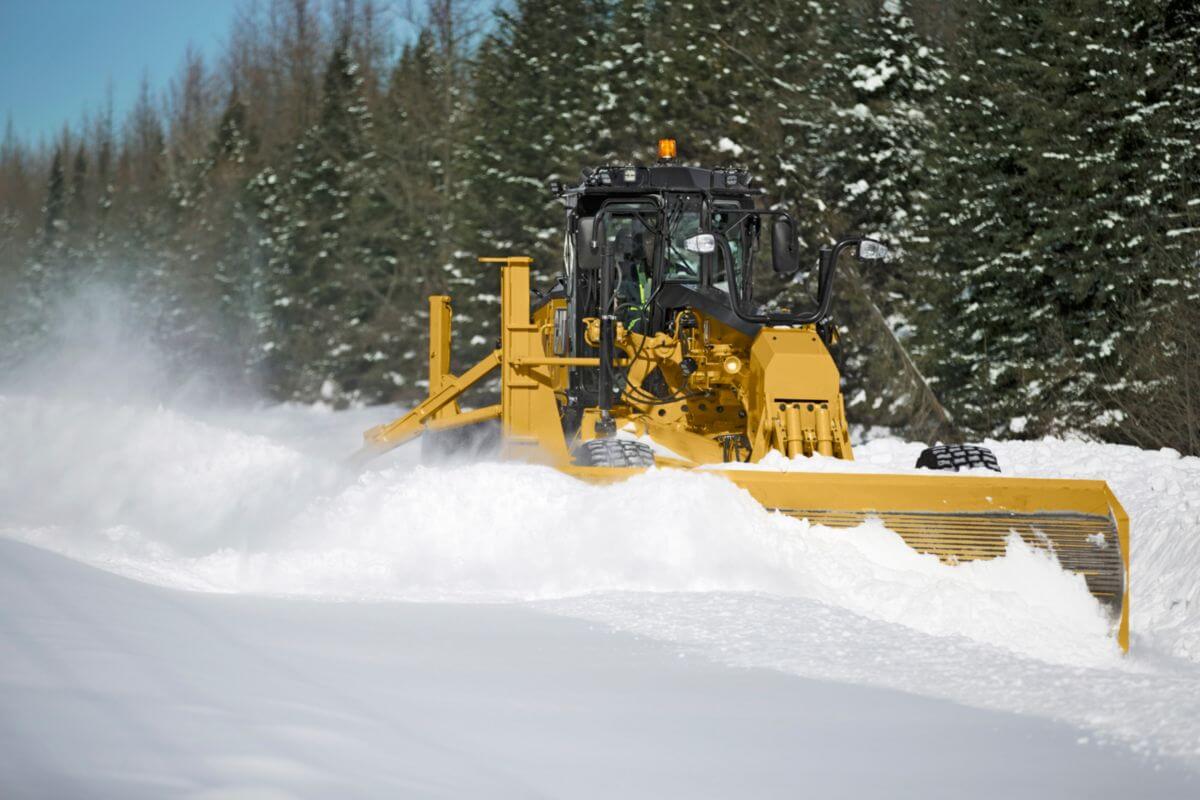

14 grader plowing snow with front blade

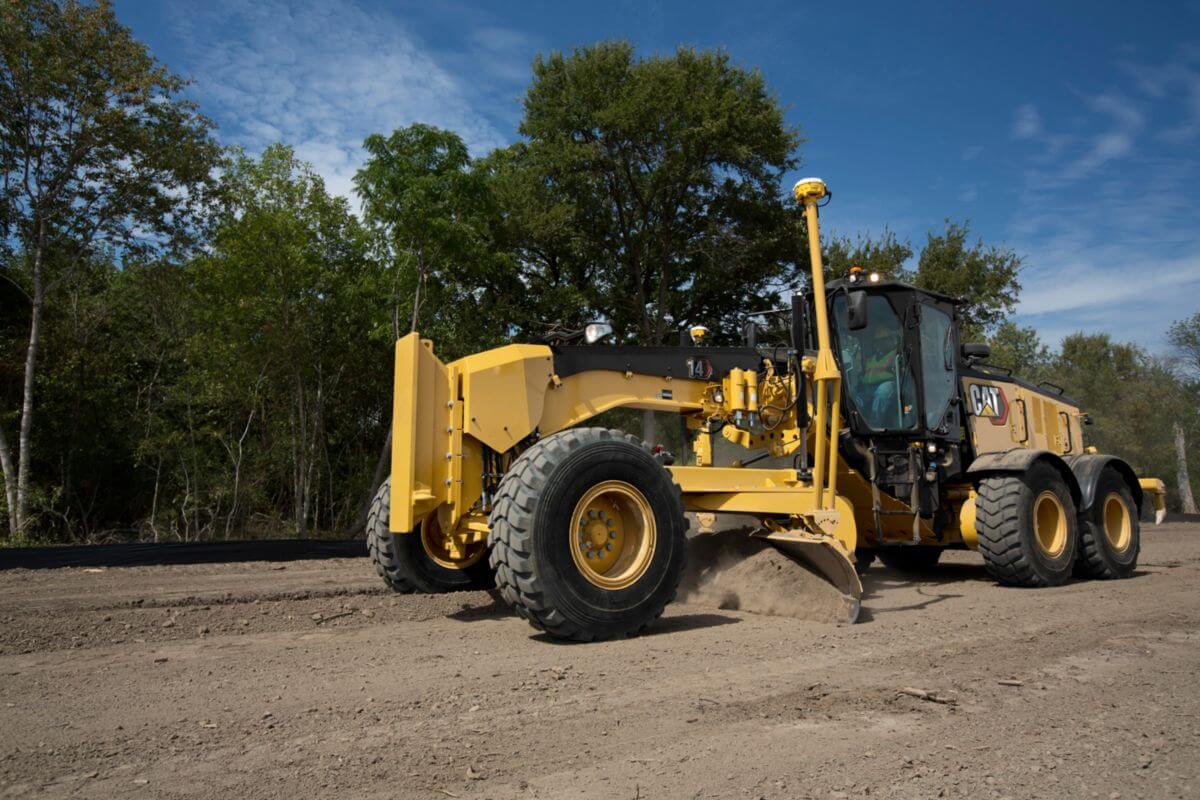

Heavy blading with the 14 motor grader
14 grader levels land for site prep

About the Cat 14



The industry standard continues to roll forward with the Cat® 14 (14M3) motor grader. With a larger engine, improved fuel economy and machine balance, enhanced transmission performance and a range of technology, this machine is ready to excel at your grading projects.

Specifications

Engine
Engine Model Cat C13
Speed at Rated Power 1,850 rpm
Note (3) Net power advertised is the power available at rated speed of 1,850 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
Note (2) Optimized VHP Plus is standard for the 14M3.
Torque Rise 41%
Emissions Tier 4 Final/Stage V, Tier 3/Stage IIIA equivalent or Tier 2/Stage II equivalent
Note (1) Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture.
Standard - Fan Speed - Minimum 550 rpm
Note (4) Power as declared per ISO 14396. Rated rpm 1,850. VHP+ = 228 kW (306 hp)
Number of Cylinders 6
Note (5) Cat engines equipped with a Selective Catalytic Reduction (SCR) system are required to use: Diesel Exhaust Fluid (DEF) which meets the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.
Standard - Fan Speed - Maximum 1,600 rpm
Frame
Front Axle - Wheel Lean - Left/Right 17.1°
Front Axle - Total Oscillation per Side 32°
Blade Range
Blade Tip Range - Backward 5°
Blade Tip Range - Forward 40°
Weights
Note *Base operating weight calculated on standard machine configuration with 20.5 R25 tires, full fuel tank operator and ROPS cab.
Air Conditioning System
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.0 kg (4.4 lb) of refrigerant which has a CO2 equivalent of 2.860 metric tonne (2.76 ton).

Features

TECHNOLOGY THAT GETS WORK DONE

MOVE MORE, BURN LESS

MORE CONTROL AND EFFICIENCY

DESIGNED FOR OPERATORS

BUILT-IN SAFETY FEATURES

SAVE MAINTENANCE TIME

View product in 360°

Drag your mouse to rotate the product
