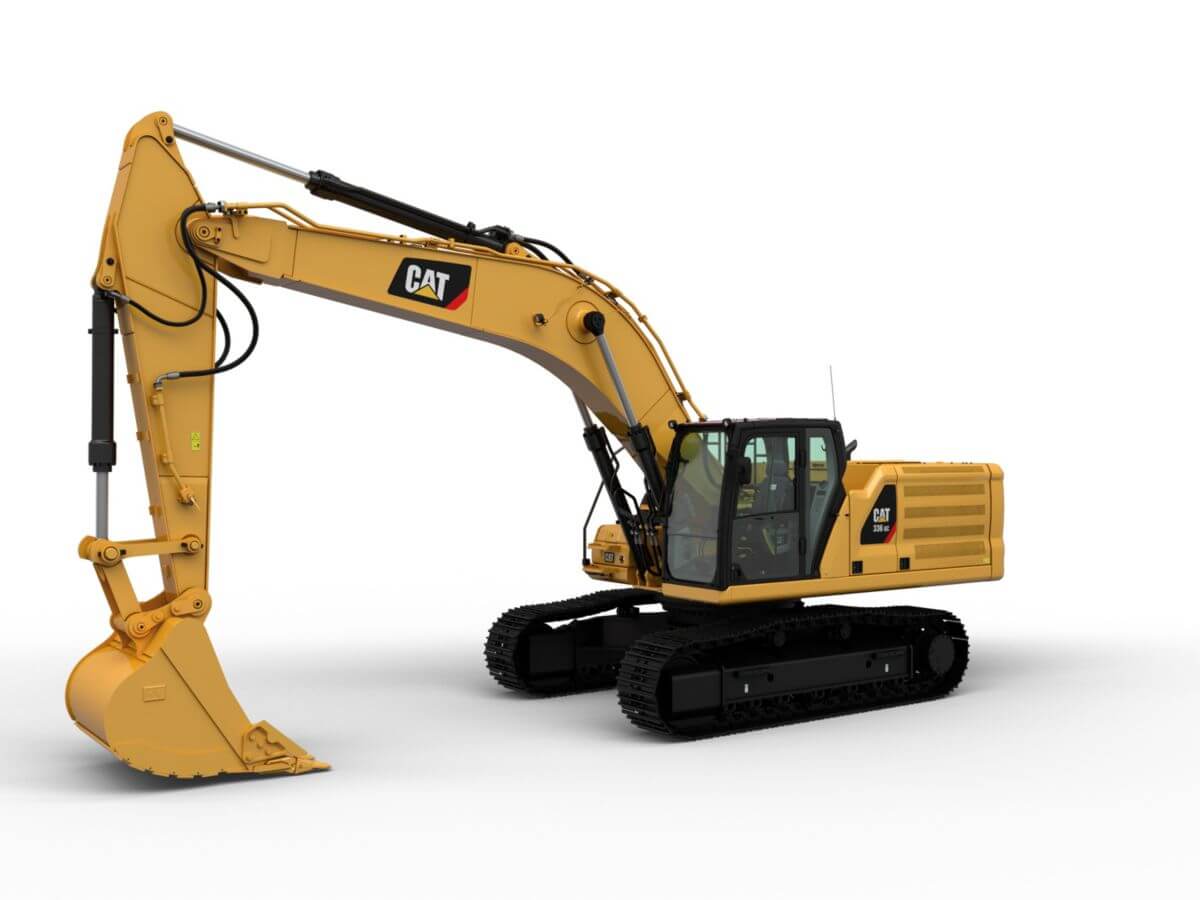

Cat 336 GC Hydraulic Excavator

Large Excavators

Download specifications Request quotation
Hydraulische graafmachine 336 GC
Hydraulische graafmachine 336 GC
Hydraulische graafmachine 336 GC
Hydraulische graafmachine 336 GC

About the Cat 336 GC Hydraulic Excavator



The Cat® 336 GC excavator balances productivity with easy-to-use controls, a new comfortable cab, improved fuel efficiency by up to 5 percent, and longer maintenance intervals that reduce maintenance costs up to 15 percent – all to give you a durable, low-cost per-hour excavator for your applications.

Specifications

Dimensions - Reach Boom - 6.5 m (21'4"); R3.2DB (10'6") Stick; 1.88 m3 (2.46yd3) HD Bucket
Counterweight Clearance 4.1 ft
Ground Clearance 1.7 ft
Handrail Height 10.4 ft
Shipping Height - Top of Cab 10.4 ft
Shipping Length 36.6 ft
Tail Swing Radius 11.6 ft
Track Gauge 8.5 ft
Track Length to Center of Rollers 11.8 ft
Transport Width - 600 mm (24 in) Shoes 10.5 ft
Hydraulic System
Main System - Maximum Flow - Implement 148 gal/min
Maximum Pressure - Equipment - Implement 5076 psi
Maximum Pressure - Swing 4061 psi
Maximum Pressure - Travel 5076 psi
Working Ranges - Reach Boom - 6.5 m (21'4"); R3.2DB (10'6") Stick; 1.88 m3 (2.46 yd3) HD Bucket
Bucket Digging Force (ISO) 44350 lbf
Bucket Digging Force (SAE) 38730 lbf
Maximum Cutting Height 33.8 ft
Maximum Depth Cut for 2440 mm (8'0") Level Bottom 7360 mm
Maximum Digging Depth 24.7 ft
Maximum Loading Height 23.2 ft
Maximum Reach - Ground Level 36.3 ft
Maximum Vertical Wall Digging Depth 18.6 ft
Minimum Loading Height 8.5 ft
Stick Digging Force (ISO) 32150 lbf
Stick Digging Force (SAE) 32060 lbf
Engine
Net Flywheel Power 259 HP
Bore 4 in
Displacement 433 in³
Engine RPM - Operation 1900 r/min
Engine RPM - Travel 2000 r/min
Gross Power - SAE J1995 261 HP
Net Power - SAE J1349 259 HP
Stroke 5 in
Weights
Operating Weight 74000 lb
Service Refill Capacities
Cooling System 4.9 gal (US)
Engine Oil - With Filter 5.3 gal (US)
Final Drive - Each 2.1 gal (US)
Fuel Tank Capacity 158.5 gal (US)
Hydraulic System - Including Tank 98.5 gal (US)
Hydraulic Tank 40.4 gal (US)
Swing Drive - Each 4.8 gal (US)
Swing
Maximum Swing Torque 80144 ft·lbf
Swing Speed 8.74 r/min

Features

High Performance with Lower Fuel Consumption

High Performance with Lower Fuel Consumption

  • The excavator is 5 percent more fuel efficient than the 336F in similar applications.
    •
  • The C7.1 ACERT TM engine can run on biodiesel up to B20 and meets U.S. EPA Tier 4 Final, EU Stage IV, and Japan 2014 emission standards.
    •
  • Match the excavator to the job with two power modes. Smart mode automatically matches engine and hydraulic power to digging conditions, providing max power when needed and reducing power when it isn’t to help save fuel.
    •
  • The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for precise digging requirements.
    •
  • Valve priority puts hydraulic pressure and flow where you command it to go for fast light- to medium-load cycle times.
    •
  • New self-sharpening Advansys bucket tips increase production and lower costs with up to 30 percent more tip life.
    •
  • Add auxiliary hydraulics to do more work with various Cat attachments.
    •
  • Product Link™ comes standard so you can remotely monitor machine health, location, hours, and fuel consumption on demand through the VisionLink® online interface.

Reliable, High and Low, Heat and Cold

Reliable, High and Low, Heat and Cold

  • Work up to 2300 m (7,550 ft) above sea level without de-rating.
    •
  • Standard high-ambient temperature capability is 52° C (125° F) with cold start capability at –18° C (0° F).
    •
  • Automatic hydraulic oil warm up gets you to work faster in cold temperatures and helps prolong the life of components.
    •
  • Two levels of filtration protect the engine from dirty diesel fuel.
    •
  • Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.
    •
  • The center track guiding guard helps keep the excavator track aligned when traveling and working on slopes.
    •
  • The sloped track frame prevents mud and debris accumulation, helping reduce risk of track damage.

Work in Comfort in the All-New Cab

Work in Comfort in the All-New Cab

  • The Comfort cab has a wide seat that adjusts for operators of all sizes.
    •
  • Control the excavator comfortably with easy-to-reach controls all located in front of you.
    •
  • Standard automatic climate control keeps you at the right temperature all shift long.
    •
  • Advanced viscous mounts reduce cab vibration by up to 50 percent over previous excavator models.
    •
  • Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
    •
  • Use the standard radio’s USB ports and Bluetooth® technology to connect to personal devices.

Simple to Operate

Simple to Operate

  • Start the engine with a push button; use a Bluetooth key fob, smartphone app, or Operator ID passcode.
    •
  • Program each joystick button, including power mode, response, and pattern, using Operator ID; the machine will remember what you set each time you go to work.
    •
  • Navigate quickly on the standard high-resolution 203 mm (8 inch) touchscreen monitor or with the aid of the jog dial control.
    •
  • Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.

Maintenance

Maintenance

  • Expect up to 15 percent less maintenance cost than the 336F due to extended service intervals. (Savings calculated over 12,000 machine hours.)
    •
  • Check hydraulic system oil and easily drain fuel system water and fuel tank water from ground level.
    •
  • Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
    •
  • Change all fuel filters at a synchronized 1,000 hours. Oil and fuel filters are grouped and located on right-hand side of machine for easy maintenance.
    •
  • The new air intake filter with pre-cleaner has double the dust holding capacity of the previous air intake filter.
    •
  • The new hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000 hour replacement interval – 50 percent longer than previous filter designs.
    •
  • S·O·SSM ports are on ground level, simplifying maintenance and allowing for quick, easy extraction of fluid samples for analysis.

Safety

Safety

  • Keep your excavator secure with Operator ID. Use your PIN code on the monitor to enable the push button starting feature.
    •
  • The standard ROPS cab meets ISO 12117-2:2008 requirements.
    •
  • A travel direction indicator helps operators know which way to activate the travel levers.
    •
  • A ground-level shut-off switch stops all fuel to the engine when activated and shuts down the machine.
    •
  • Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab posts and larger windows.
    •
  • Serrated steps and anti-skid punch plate on the service platform help prevent slipping.
    •
  • A rearview camera is standard.
