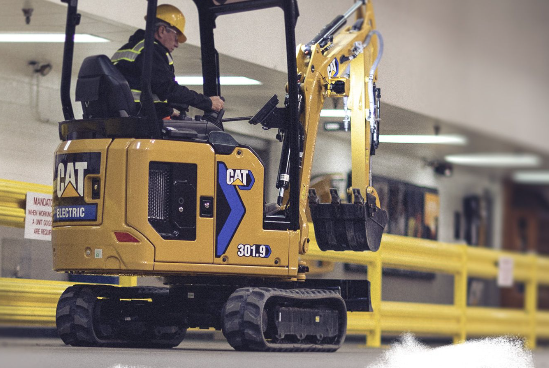

CAT 301.9

• Battery voltage / capacity: 48 v |32 kWh
• Operating weight: 2.2 metric tons
• Drawer capacity: 0.10 m³
• Run time: up to 8 hours on a single charge*
• Charging options: 3 kW max AC overnight charging and 9 kW charging available via Cat DC charger

*Based on typical use and application with a utilization rate of 40% to 60%

• Will be available with a built-in AC charger for overnight charging and an external DC charger for fast charging.
• Will have a 48-volt system with a 32 kWh battery – one of the largest battery capacity solutions for these 2-tons mini excavators.
• Comes with a portable EVSE (Electric Vehicle Supply Equipment).
• Onboard AC charging requires 120-volt or 240-volt outlet (supports NEMA 6-20/14-50 for 240 volts or NEMA 5-15 household outlet for 120 volts).
• Offboard DC charging is available trough an optional MEC009 DC charger (requires 240 volt/50 amp power source) (supports NEMA 14-50 connections).
• Will be available in Canopy or Cab Heat Only (not currently an AC option).
• Will include Next Generation Advanced Monitor for "live" monitoring of battery status.

HOW FAST AM I ABLE TO CHARGE MINE ELECTRIC MINIEXcAVATOR?

The charging time for a 301.9 depends on the type of charger; the built-in 120V or 240V AC charger or with the external DC charger. Overnight charging is recommended for the built-in AC charger, while the external DC charger will charge faster. The DC charger available for faster charging during breaks, charges the machine in approximately 3-3.5 hours, but requires the correct input for the DC charger.

120-volt AC charging – Adds 20 minutes of run time per hour of charging

240-volt AC charging – Adds 40 minutes of run time per hour of charging

240-volt DC charging – Adds 180 minutes of run time per hour of charging

FOR HOW LONG ARE CAT ELECTRIC MINIEXcAVATOR ABLE TO RUN?

Operating time is approximately 6-8 hours with extensive work at an occupancy rate of 40% to 60%. For example, in more demanding applications that require a lot of tracking, this is reduced to 3 to 4 hours.
