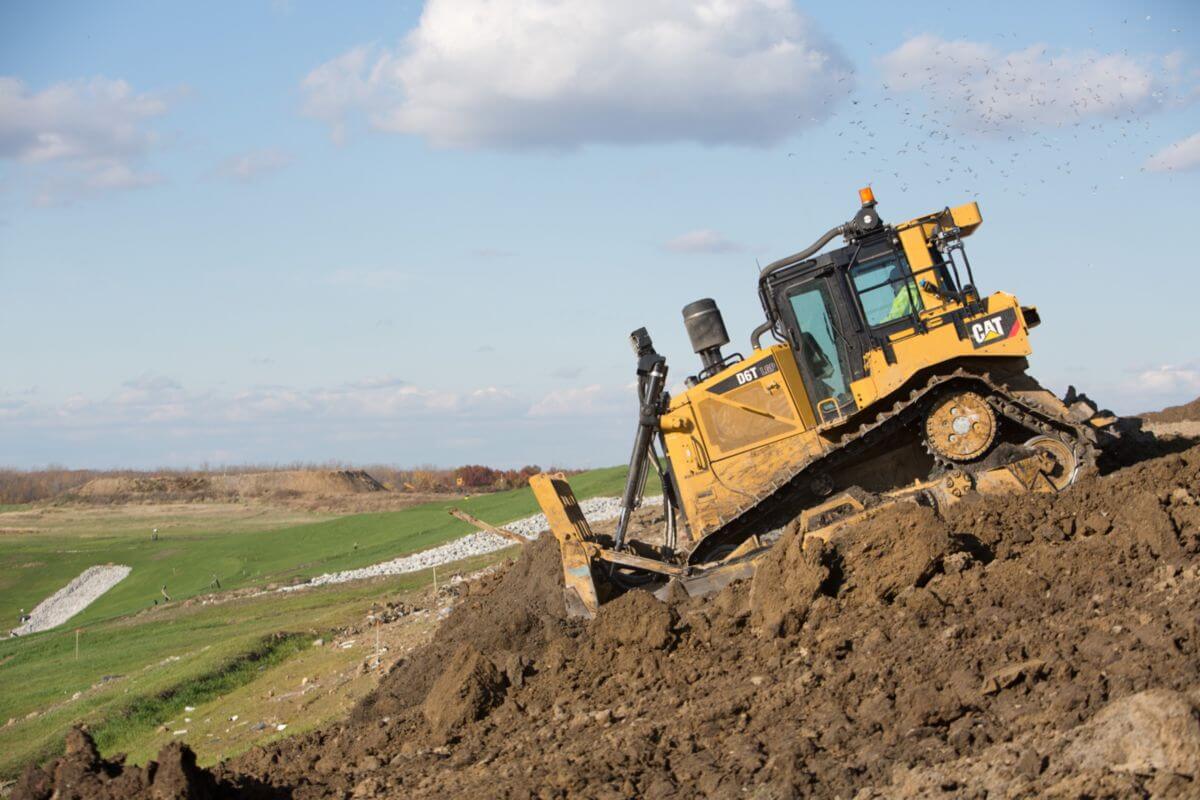

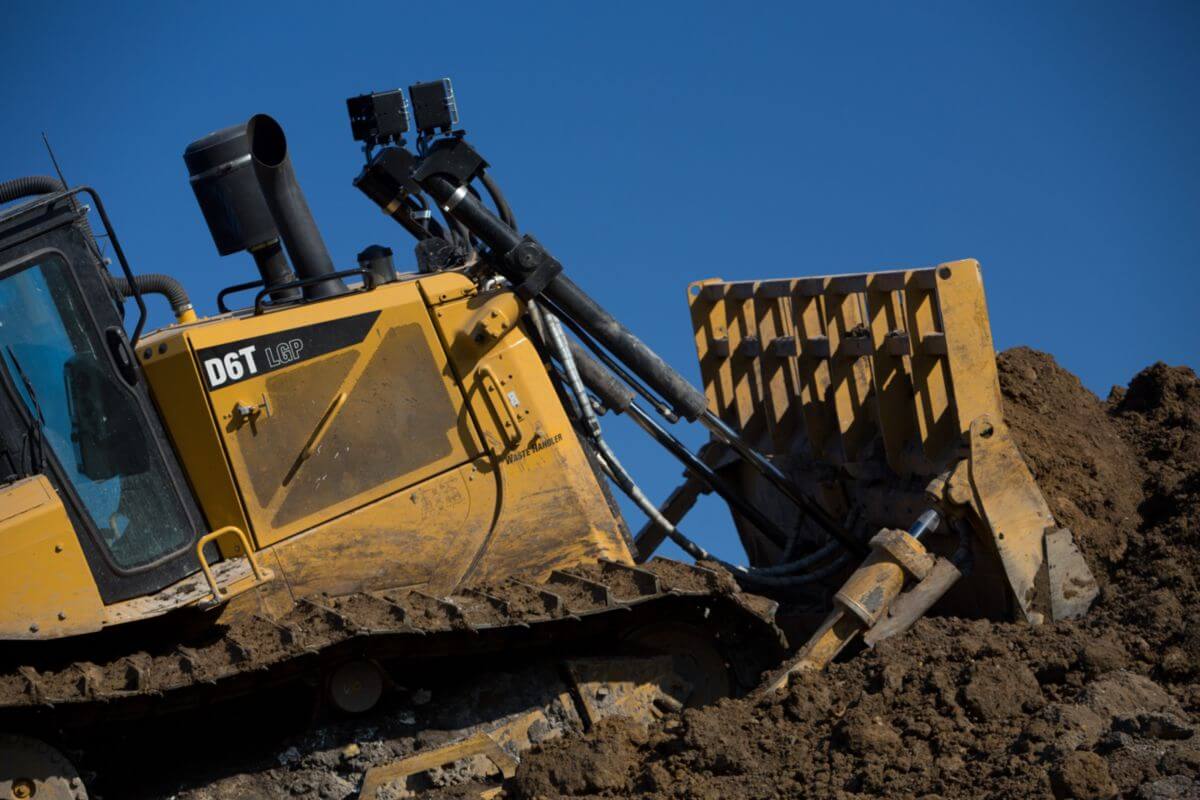

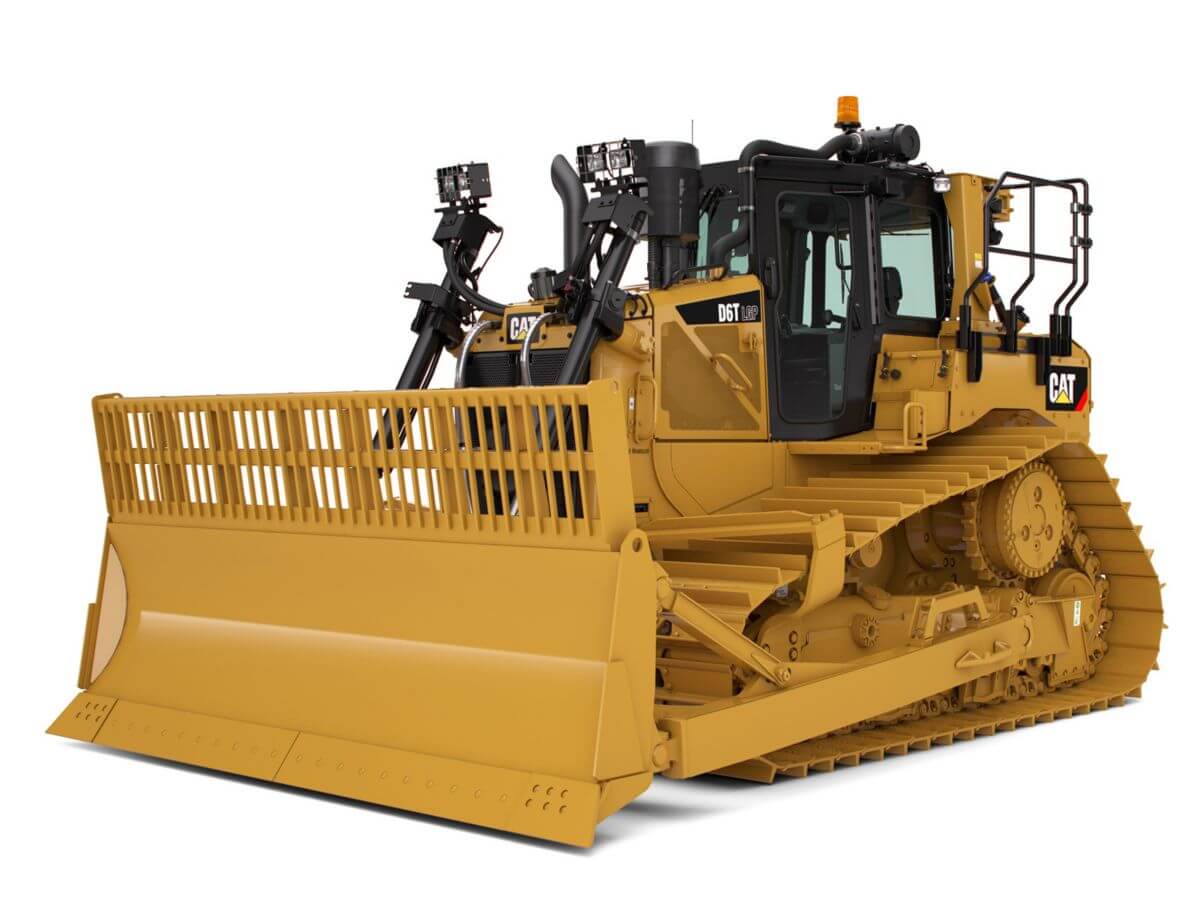

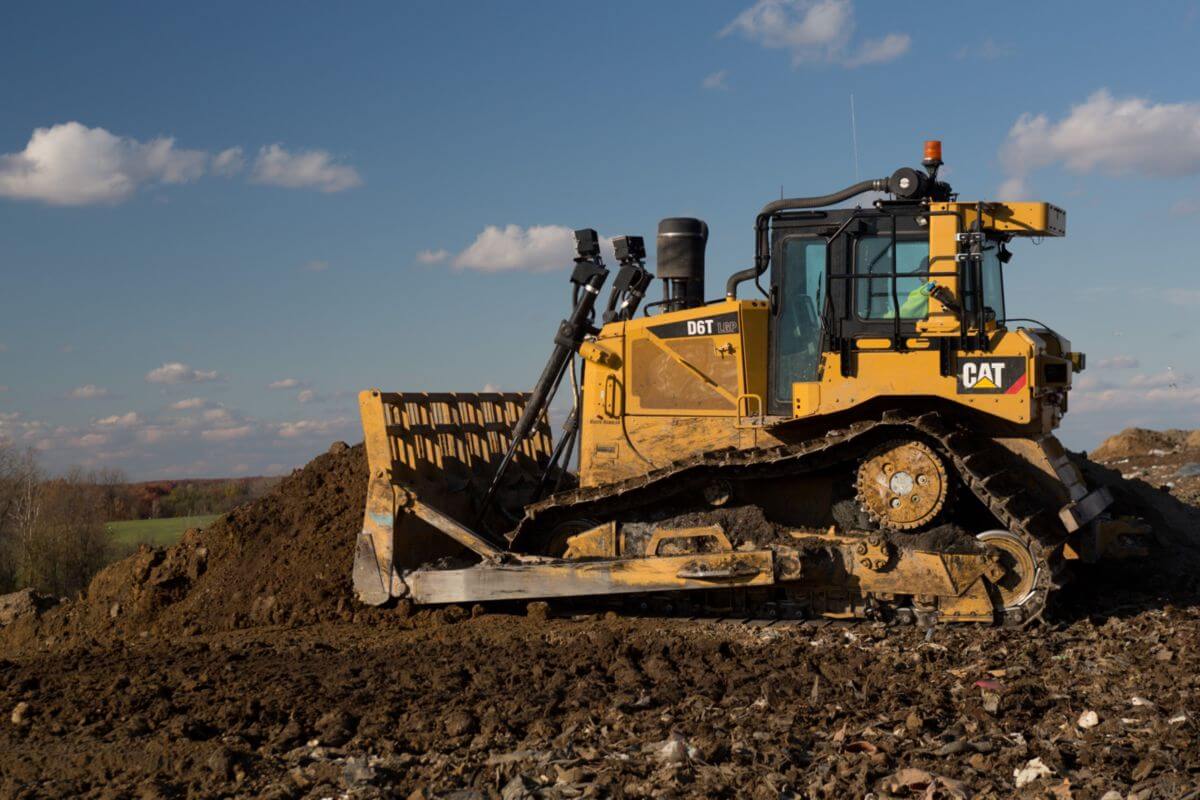

About the Cat D6T WH Waste Handler

The new D6T dozer makes high efficiency dozing easy. A smooth-shifting, fully automatic four-speed Cat® transmission continuously optimizes the power train for the application. You save a significant amount of fuel and operator effort, without sacrificing durability, power or productivity. Specialized guarding and durability features are designed and factory installed to take on the demands of waste applications.

Specifications

Engine

Flywheel Power	245 HP
Displacement	567.5 in³
Net Power - 2,200 rpm - ISO 9249/SAE J1349	215 HP
Net Power - 2,200 rpm - ISO 9249/SAE J1349 (DIN)	218 HP
Net Power - Maximum - ISO 9249/SAE J1349 (DIN) at 1,200 rpm	248 HP
Net Power - Maximum - ISO 9249/SAE J1349 at 1,200 rpm	245 HP

Weights

Operating Weight

56063 lb

Operating Weights

LGP S	56063 lb
LGP VPAT	59204 lb
XL SU	51652 lb
XW SU	53423 lb
XW VPAT	58723 lb

Dimensions

LGP - Ground Clearance	16 in
LGP - Ground Pressure (ISO 16754)	5.57 psi
LGP - Length of Basic Tractor with Striker Bars	17.25 ft
LGP - Length of Track on Ground	10.67 ft
LGP - Machine Height to Top of Precleaner	11.58 ft
LGP - Width of Tractor without Trunnions	10.5 ft
LGP VPAT - Ground Clearance	16 in
LGP VPAT - Ground Pressure (ISO 16754)	6.81 psi
LGP VPAT - Length of Basic Tractor with Striker Bars	19.08 ft
LGP VPAT - Length of Track on Ground	10.67 ft
LGP VPAT - Machine Height to Top of Precleaner	11.58 ft
LGP VPAT - Width of Tractor without Trunnions	10.33 ft
XL - Ground Clearance	15 in
XL - Ground Pressure - ISO 16754	9.52 psi
XL - Length of Basic Tractor with Striker Bars	16.25 ft
XL - Length of Track on Ground	9.25 ft
XL - Machine Height to Top of Precleaner	11.42 ft
XL - Width of Tractor - Without Trunnions	8 ft
XW - Ground Clearance	15 in
XW - Ground Pressure - ISO 16754	7.26 psi
XW - Length of Basic Tractor with Striker Bars	16.25 ft
XW - Length of Track on Ground	9.25 ft
XW - Machine Height to Top of Precleaner	11.42 ft
XW - Width of Tractor - Without Trunnions	9.17 ft
XW VPAT - Ground Clearance	16 in
XW VPAT - Ground Pressure - ISO 16754	7.5 psi
XW VPAT - Length of Basic Tractor with Striker Bars	19.08 ft
XW VPAT - Length of Track on Ground	10.67 ft
XW VPAT - Machine Height to Top of Precleaner	11.58 ft
XW VPAT - Width of Tractor - Without Trunnions	9.83 ft

Landfill Blades - Capacity

6 SU - XL Landfill	14.4 yd³
6 SU - XW Landfill	15.84 yd³
6S LGP Landfill	12.33 yd³

Landfill Blades - Width

6 SU - XL Landfill	10.7 ft
6 SU - XW Landfill	11.7 ft
6S LGP Landfill	13.3 ft

Features

Durability

Specialized guarding throughout the machine helps protect major components like the chassis, fuel tank and hydraulic tank from impact and airborne debris.
Multi-layer final drive guards, including a labyrinth-style guard with 90-degree turns, help keep dirt and debris away from the Duo-Cone™ seal to protect final drive oil.
Pivot shaft seal guards help prevent debris from entering and damaging seals.
Striker bars help prevent debris from damaging the machine, and added seals help reduce the amount of material entering engine and transmission compartments.
Tilt cylinder with rotating bushing type design help wrapping materials to roll off hoses.
Heavy duty hinged radiator guard protects radiator and fan from penetration by material coming straight in or from under the blade.
Cooling system designed for high debris environments, with automatic reversing fan and swing-out access for cleanout.
Laminated thermal shields and insulated Clean Emissions Module.
Hinged belly guard for easy cleaning.
Landfill blades and center-hole track shoes help you optimize your waste handler for the job.
Lights mounted up and away from main debris area for protection, while still giving you plenty of light on the work area.

Performance

New, fully automatic four-speed lock-up clutch transmission continuously optimizes gear and engine speed for the application without added operator input.
Added gear between first and second, and seamless lock-up clutch engagement, for exceptionally smooth shifting.
Full-time Auto Shift for significantly better fuel efficiency with less operator effort – without sacrificing performance.
Up to 20 percent more fuel efficient* – as much as 30 percent better in lighter load applications.
Sustainable: fuel savings reduces CO2 production by an average of approximately 16.6 metric tons (17.7 tons) per year.

*Compared to previous model.

Cat Connect Technology

Automatically maintain established blade position with Cat GRADE with Slope Assist (Standard). Finish jobs faster, with better surface quality and significantly less operator effort. No additional hardware required.
Whether production dozing or finish grading, take on 3D design plans more efficiently with Cat GRADE with 3D (Optional). Factory integrated grade control system features cab roof-mounted GNSS antennas to eliminate blade masts and cables. Includes AutoCarry™ to further boost productivity.
Versatile, scalable Cat AccuGrade™ (Optional) is a dealer-installed grade control system. Choice of Laser, Global Navigation Satellite System (GNSS) or Universal Total Station (UTS) so you get the right level of accuracy to match your job requirements.
Factory equip your dozer for easy installation of an AccuGrade system with the AccuGrade Ready Option (ARO) (Optional).
Manage your fleet more effectively and profitably with Product Link™/VisionLink® remote monitoring.
