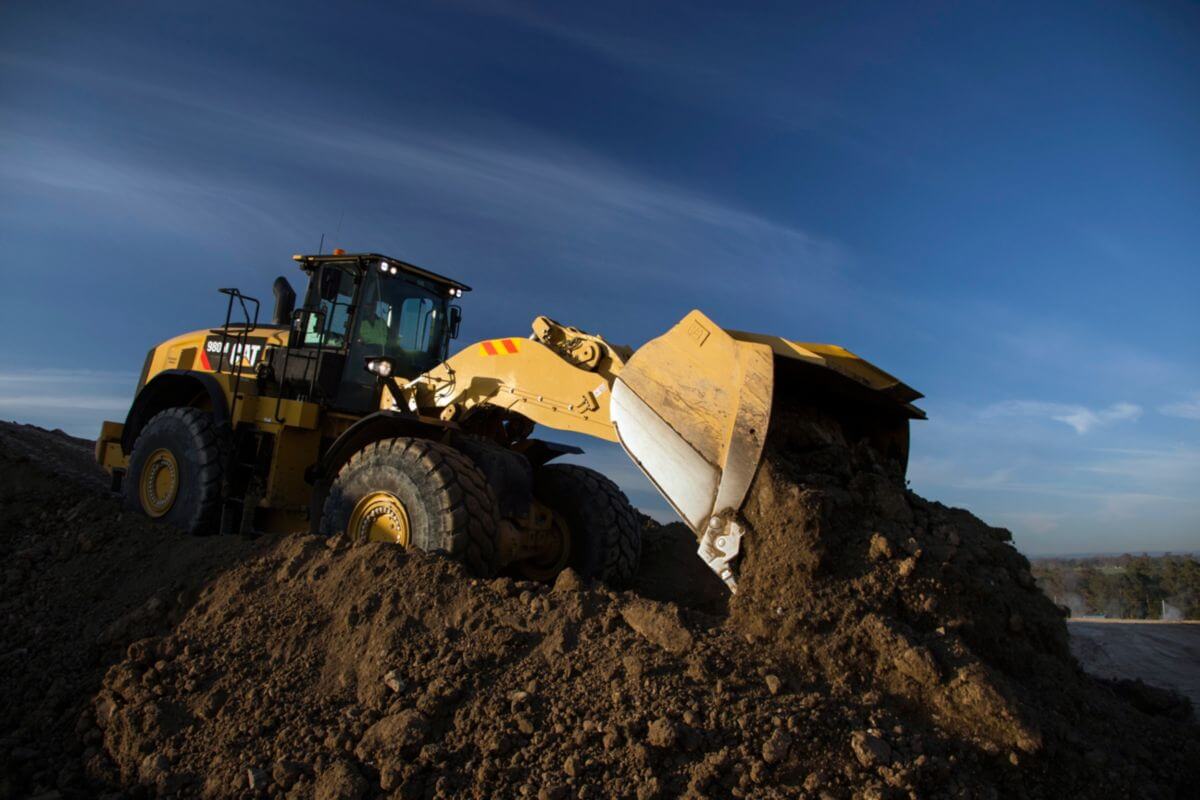

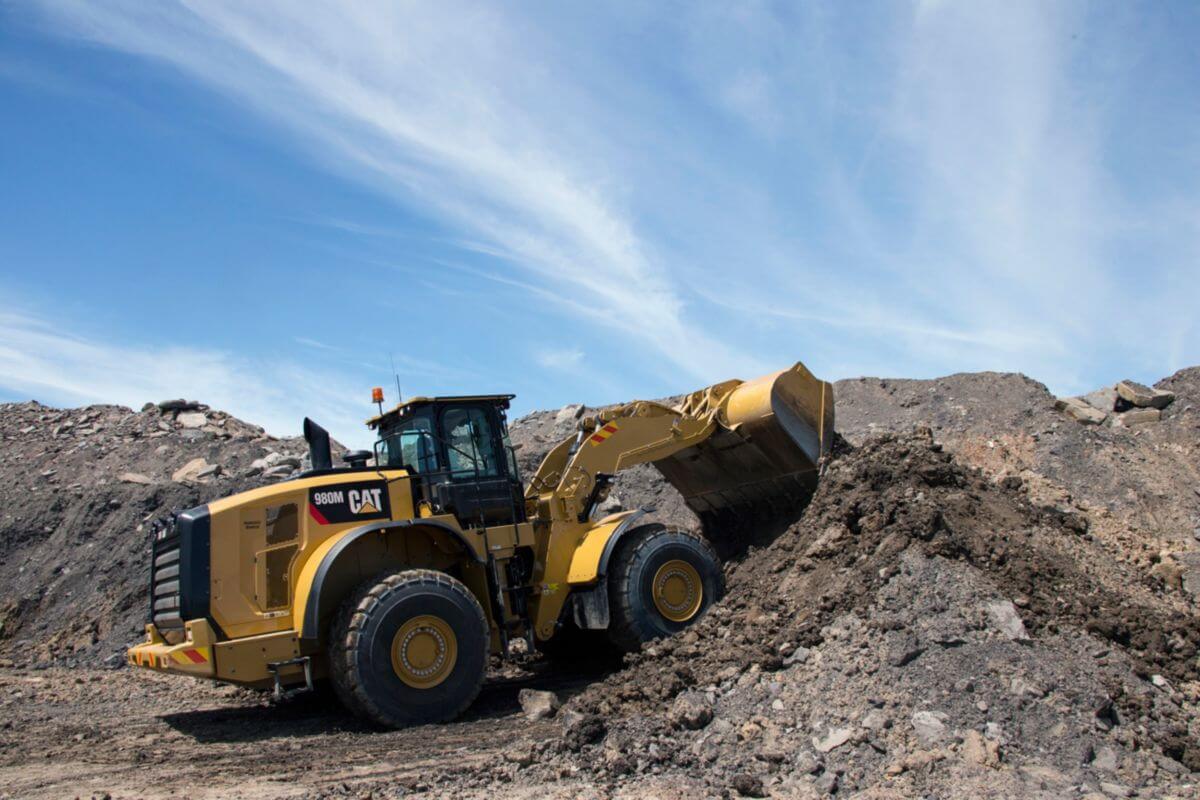

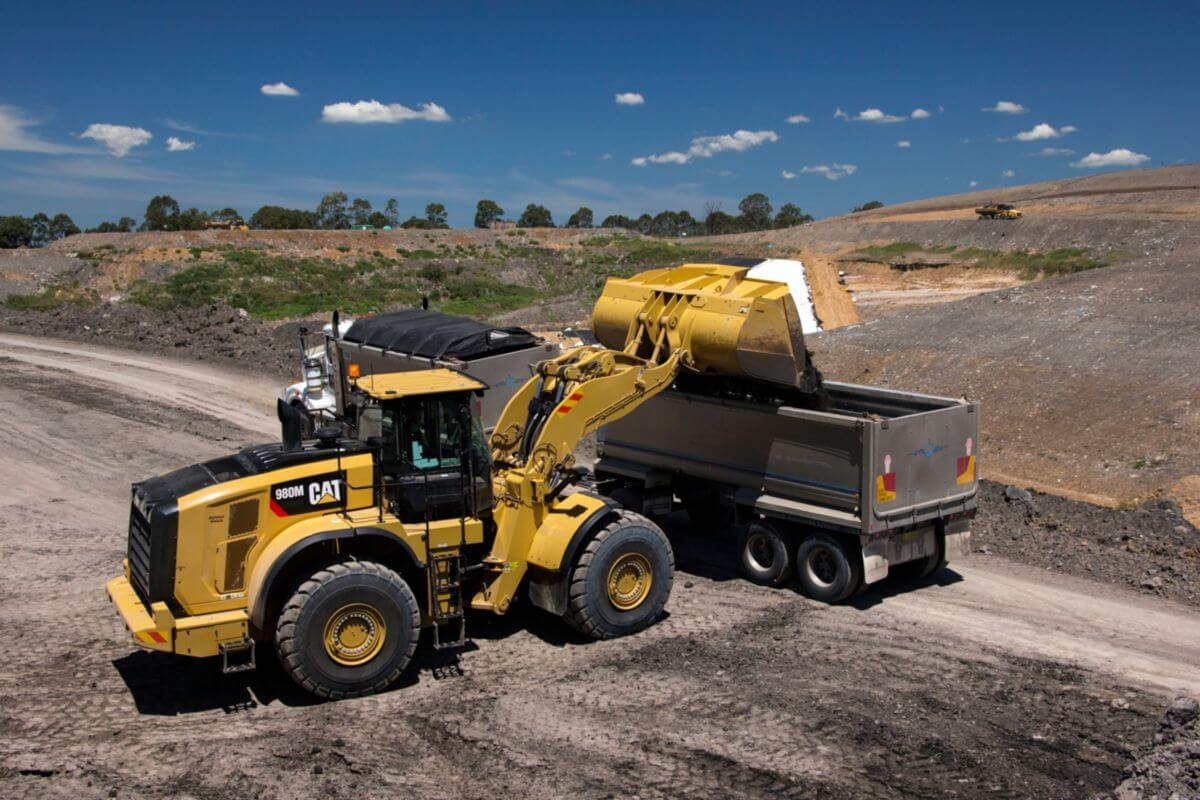

Cat 980M Medium Wheel Loader

This product has expired

About the Cat 980M Medium Wheel Loader

This product has expired. The 980M Wheel Loader is equipped with built-in proven technologies to help meet your expectations for productivity and fuel efficiency. Deep system integration provides you with a machine that has reduced emissions, improved performance and improved fuel economy without interrupting machine performance making it seamless to you. This machine delivers the reliability, durability, and versatility you’ve come to expect from a Cat machine.

Specifications

Engine - Tier 4 Final/Stage IV

Emissions

Tier 4/Stage IV

Engine

Engine Model	Cat C13 ACERT
Maximum Power - 1,700 rpm - SAE J1995	425 HP
Net Power - ISO 9249	386 HP
Maximum Power - 1,700 rpm - SAE J1995 - Metric	431 HP
Displacement	763 in³
Maximum Net Power - 1,700 rpm - ISO 9249	386 HP
Maximum Net Power - 1,700 rpm - ISO 9249 - Metric	392 HP
Maximum Net Power - 1,700 rpm - SAE J1349	386 HP
Maximum Net Power - 1,700 rpm - SAE J1349 - Metric	392 HP
Maximum Net Torque - 1,100 rpm	1515 ft·lbf
Maximum Power - 1,700 rpm - ISO 14396	420 HP
Maximum Power - 1,700 rpm - ISO 14396 - Metric	426 HP
Note	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.
Peak Gross Torque - 1,200 rpm - ISO 14396	1609 ft·lbf
Peak Gross Torque - 1,200 rpm - SAE J1995	1627 ft·lbf

Service Refill Capacities

Cooling System	14 gal (US)
Crankcase	9.8 gal (US)
Differential - Final Drives - Front	22 gal (US)
Differential - Final Drives - Rear	22 gal (US)
Hydraulic Tank	40 gal (US)
Transmission	20.3 gal (US)
Fuel Tank	112.5 gal (US)
DEF Tank	5.5 gal (US)

Sound

Note (1)	*Distance of 15 m (49.2 ft), moving forward in second gear ratio.
With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)	72 dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008)	112 dB(A)
Note (2)	**For machines in European Union countries and in countries that adopt the ?EU Directives.?
Note (3)	***European Union Directive ?2000/14/EC? as amended by ?2005/88/EC.?
With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)**	109 LWA***
With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)**	72 dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013)	78 dB(A)*

Weights

Operating Weight	66337 lb
Note	Weight based on a machine configuration with Michelin 29.5R25 XLDD1 L4 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link?, open differential axles, secondary steering, sound suppression, and a 5.4 m3 (7

Buckets

Bucket Capacities

4.2-12.2 m³ (5.25-16.0 yd³)

Operating Specifications

Breakout Force	50357 lbf
Static Tipping Load - Full 40° Turn - No Tire Deflection	45847 lb
Static Tipping Load - Full 40° Turn - With Tire Deflection	43133 lb
Note (1)	For a machine configuration as defined under ?Weight.?
Note (2)	Full compliance to ISO 143971:2007 Sections 1 thru 6.

Transmission

Forward - 1	4.3 mT/hr
Forward - 2	8.3 mT/hr
Forward - 3	14.6 mT/hr
Forward - 4	24.5 mT/hr
Reverse - 1	4.8 mT/hr
Reverse - 2	9.4 mT/hr
Reverse - 3	16.7 mT/hr
Note	Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 933 mm (37 in) roll radius.
Reverse - 4	24.5 mT/hr

Hydraulic System

Implement System - Maximum Operating Pressure	4975 psi
Implement System - Maximum Pump Output at 2,250 rpm	119 gal/min
Hydraulic Cycle Time - Total	10.1 s

Bucket Capacities

Bucket Range

4.2-12.2 m³ (5.25-16.0 yd³)

Dimensions - High Lift

Centerline of Rear Axle to Edge of Counterweight	8.17 ft
Centerline of Rear Axle to Hitch	6.25 ft
Ground Clearance	1.42 ft
Height - Top of Exhaust Pipe	12.33 ft
Height - Top of Hood	10.25 ft
Height - Top of ROPS	12.58 ft
Hinge Pin Height at Carry	2.25 ft
Hinge Pin Height at Maximum Lift	15.58 ft
Lift Arm Clearance at Maximum Lift	13.08 ft
Maximum Width over Tires	10.83 ft
Note	All dimensions are approximate and based on Michelin 29.5R25 XLDD1 L4 radial tires.
Overall Length - Without Bucket	26.83 ft
Rack Back - Carry Height	48 degrees
Rack Back - Maximum Lift	61 degrees
Rack Back at Ground	39 degrees
Tread Width	8 ft
Wheel Base	12.5 ft

Dimensions - Standard Lift

Centerline of Rear Axle to Edge of Counterweight	8.17 ft
Centerline of Rear Axle to Hitch	6.25 ft
Ground Clearance	1.42 ft
Height - Top of Exhaust Pipe	12.33 ft
Height - Top of Hood	10.25 ft
Height - Top of ROPS	12.58 ft
Hinge Pin Height at Carry	2.08 ft
Hinge Pin Height at Maximum Lift	14.83 ft
Lift Arm Clearance at Maximum Lift	12.42 ft
Maximum Width over Tires	10.83 ft
Note	All dimensions are approximate and based on Michelin 29.5R25 XLDD1 L4 radial tires.
Overall Length - Without Bucket	26.17 ft
Rack Back - Carry Height	48 degrees
Rack Back - Maximum Lift	61 degrees
Rack Back at Ground	40 degrees
Tread Width	8 ft
Wheel Base	12.5 ft

Features

Reliability

Cat® C13 ACERT™ engine and automatic Cat Regeneration System offer increased power density with a combination of proven electronic, fuel and air systems.
Utilizing rigorous component design and machine validation processes results in unmatched reliability, durability and high uptime.

Durability

Heavy-duty planetary powershift transmission and axles handle extreme applications.
Full flow hydraulic filtration system with additional loop filtration improves hydraulic system robustness and component life.

Productivity

Engine power increased by approximately 5% improves machine performance and response (compared to H Series).
Lock-up clutch torque converter, combined with lock-to-lock shifting, delivers smooth shifts, fast acceleration and speed on grade.
Easy-to-load Performance Series Buckets feature a wider mouth and curved side plates that improve material retention (fill factor) and decrease cycle times.
Optional limited slip differentials improve performance in the pile and poor underfoot conditions.
Optional Aggregate Handler configuration offers slightly higher payload capability for loose aggregate rehandling.*

*Optional configurations and equipment may vary from region to region and requires conformance to Caterpillar payload policy. Consult your dealer or Caterpillar representative for details.

Fuel Efficiency

Up to 10% more fuel efficient than K Series and up to 25% more fuel efficient than H Series loaders.**
Power dense ACERT engine burns less fuel by providing power and torque when needed.
Standard productive Economy Mode provides maximum fuel savings with minimal productivity impact.

**Actual results may vary based on factors such as, but not limited to, machine configuration, operator technique, machine application, climate, etc.

980M Medium Wheel Loader Fuel Efficiency

Ease of Operation

Best-in-class operator environment provides unmatched comfort, visibility, and efficiency.
E-H joystick steering with force feedback for precision control and dramatically decreases operator arm fatigue.
Intuitive, ergonomic controls and touch screen multifunction display keep operators focused on their work.
Ride control system with dual accumulators provides excellent ride quality and lowers cab vibrations.

Safety

Excellent cab access with wide door, remote door opening option and stair-like steps.
Floor to ceiling windshield, large mirrors with integrated spot mirrors and rear vision camera provide industry leading all-around visibility.

Serviceability

One-piece tilting hood with side and rear doors; hydraulic and electrical service centers make access fast and easy.
Safe, ground level access to fuel fill and daily maintenance points means less servicing time is required.
Optional, fully integrated Cat Autolube system provides full lube system monitoring and diagnostic test visibility.

Cat Connect Technology

Monitor, manage and enhance job site operations.
Cat LINK Technologies: VisionLink® enables owners to access data wirelessly to monitor machine health, utilization and location.
Cat DETECT Technologies: Integrated rear vision camera enhances visibility behind machine to help operators work safely. Optional Cat Rear Object Detection increases operator awareness of the working environment.
Cat PAYLOAD Technologies: Optional Cat Production Measurement 2.0 brings simple and accurate on-the-go payload scale allowing operators to deliver exact loads and work more efficiently. Advanced Productivity subscription provides comprehensive actionable information to help you manage and improve the productivity and profitability of your operations.
