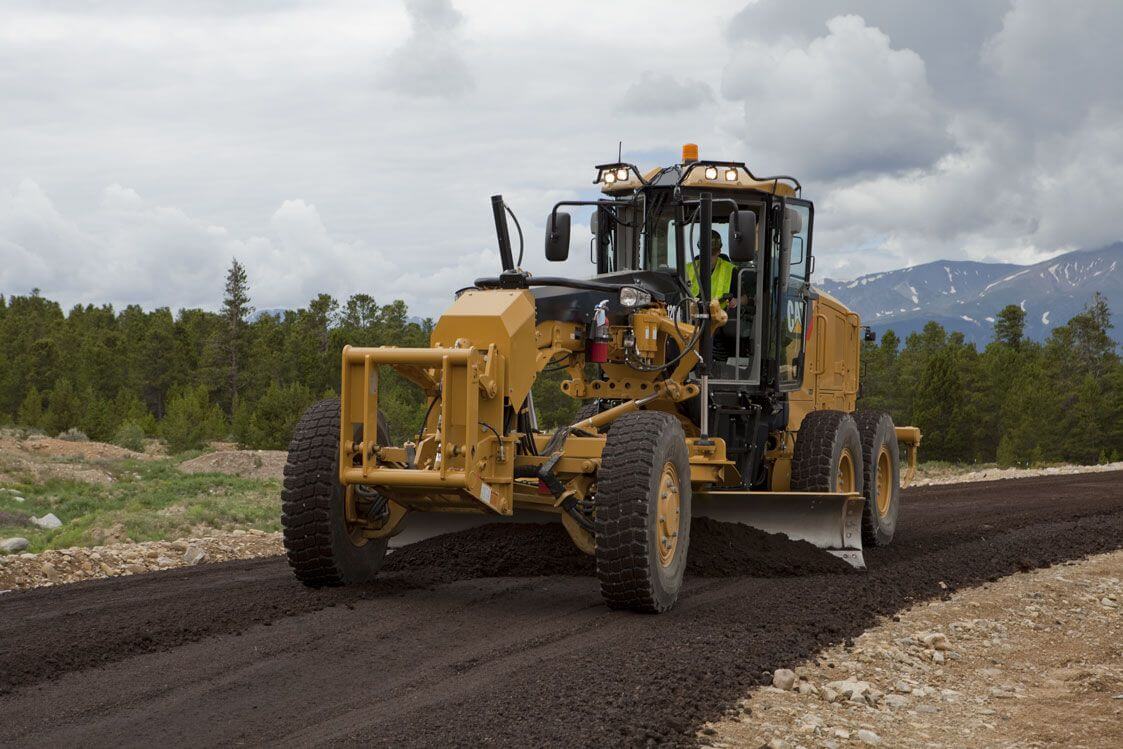

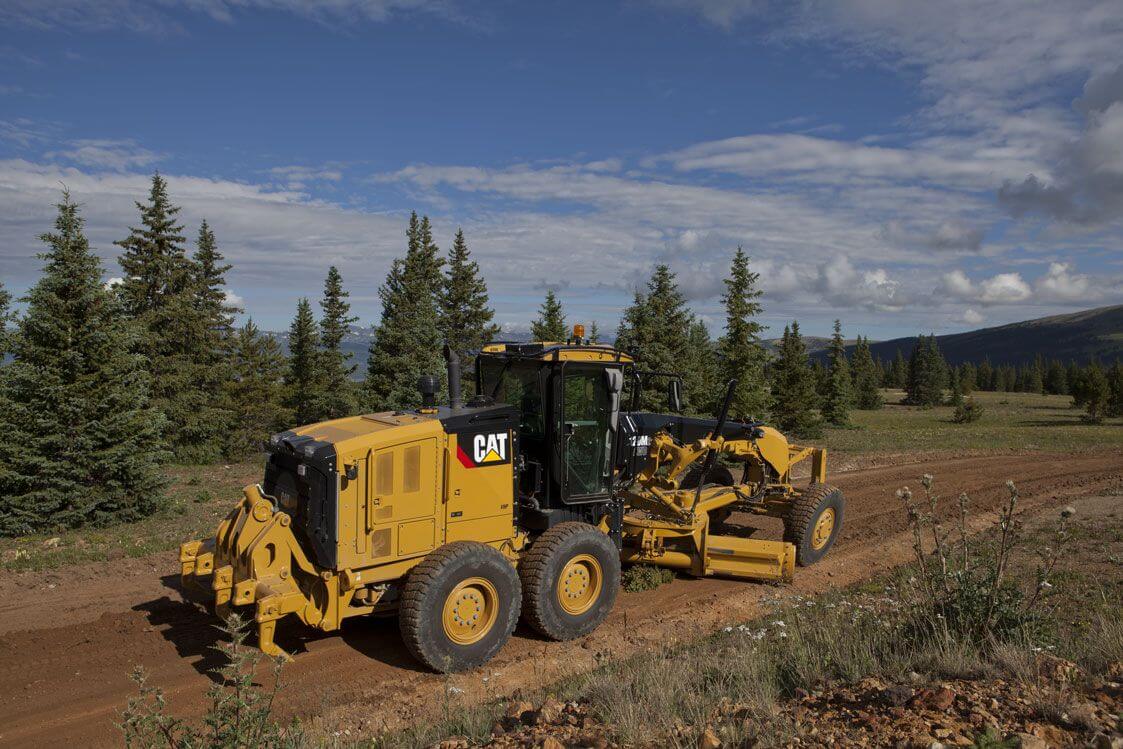

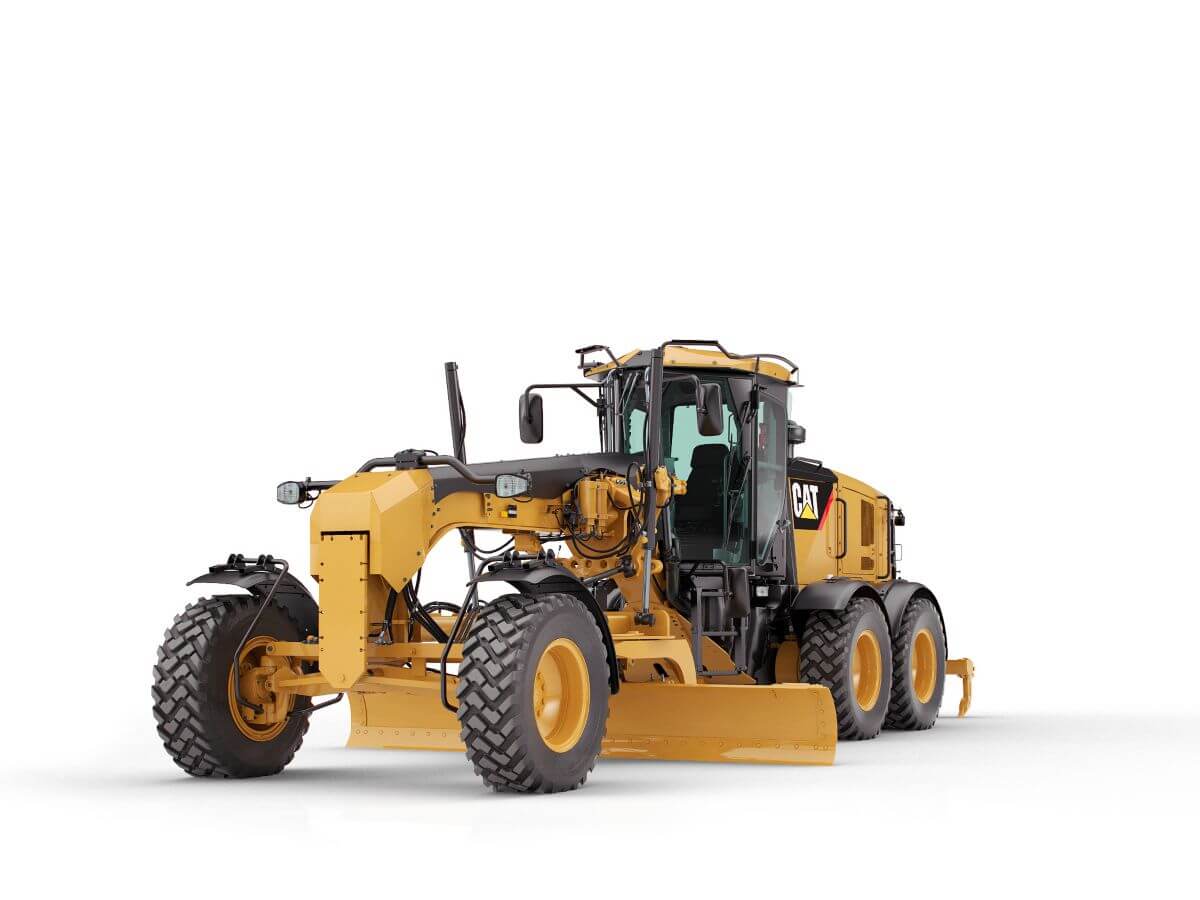

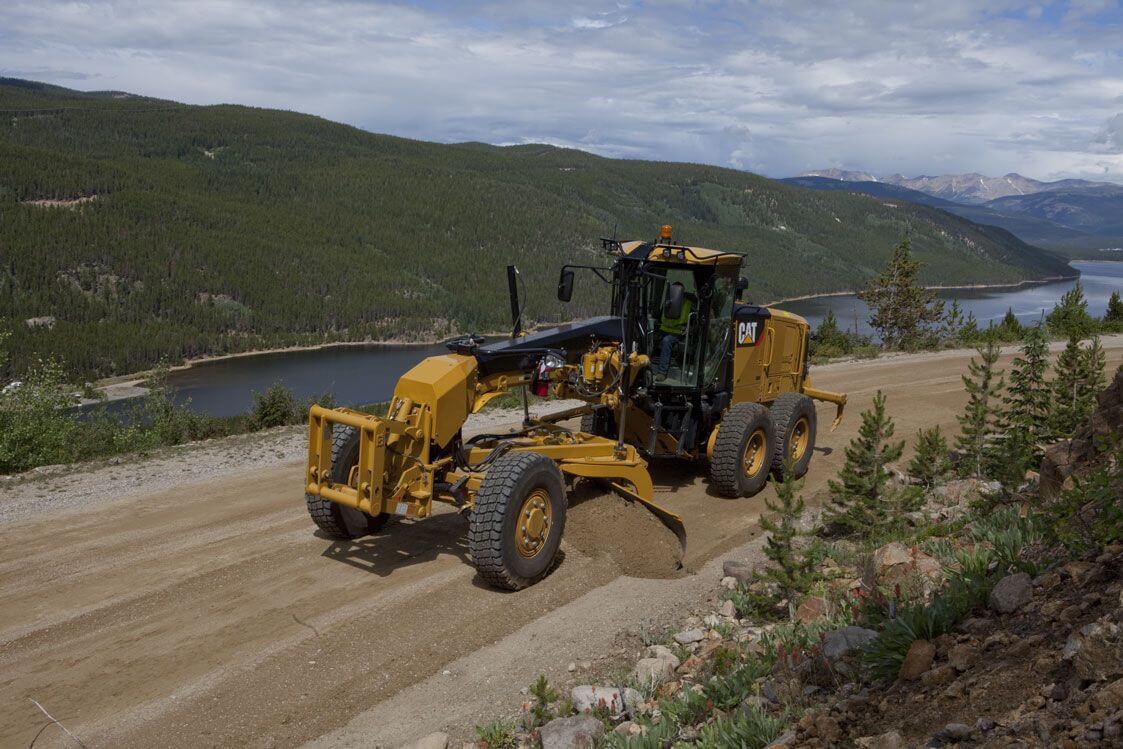

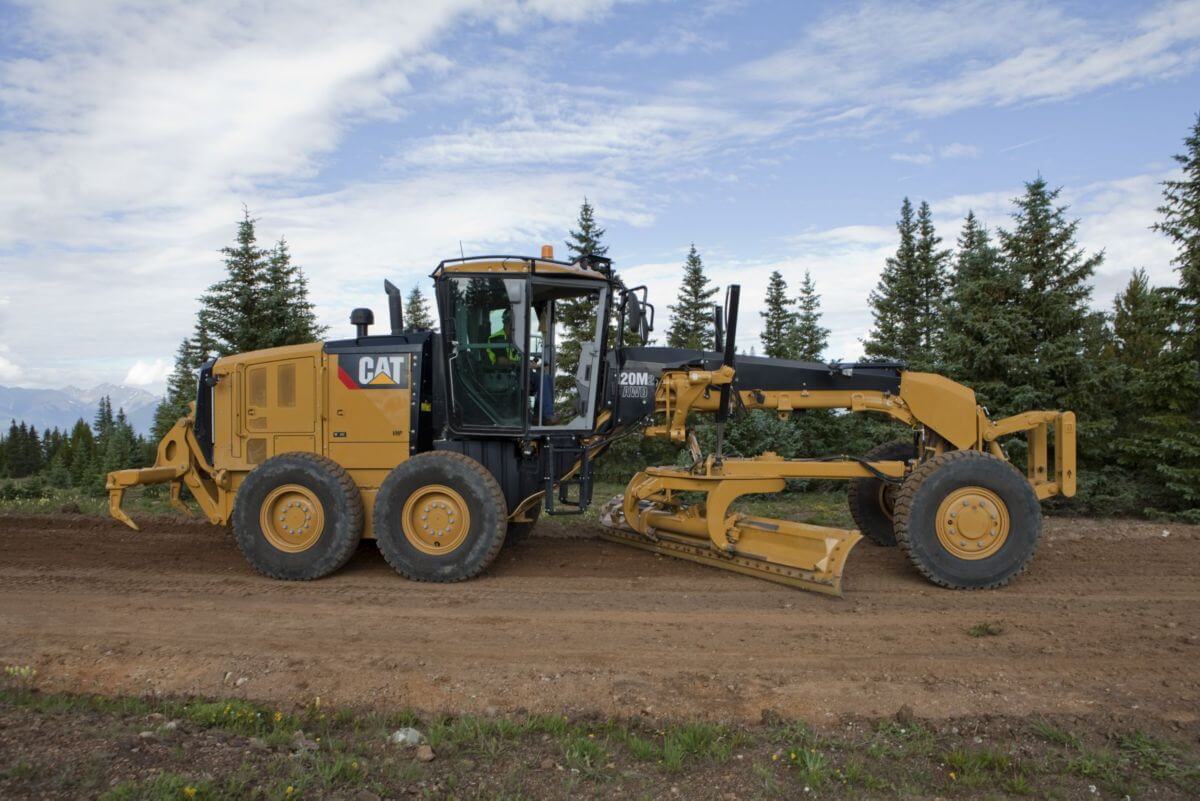

About the Cat 120M2/120M2 AWD



This product has expired. The M Series 2 continues the legacy of quality already established by Cat Motor Graders. The extensive validation program, combined with improvements to the manufacturing process, allows Caterpillar to further enhance our quality. The end result of this development process is a motor grader line with breakthrough technologies, tested in the field and built around real applications and real customer needs. M Series 2 Motor Graders meet Tier 4 Interim/Stage IIIB equivalent emission standards.

Specifications

Engine
Base Power (1st Gear) - Net 145 HP
Engine Model Cat® C7.1 ACERT™
Bore 4.13 in
Stroke 5.31 in
Speed at Rated Power 2,100 rpm
Base Power (1st Gear) - Net - Metric 147 HP
Base Power (All Gears) - Net 145 HP
Emissions Tier 4 Interim/Stage IIIB equivalent
High Ambient - Fan Speed - Standard 1,000 rpm
Maximum Torque 693 lb/ft
Standard Capability 109 °F
Torque Rise 45%
VHP Plus - Gear 1F, Net 145 HP
VHP Plus - Gear 2F, Net 153 HP
VHP Plus - Gear 3F, Net 161 HP
VHP Plus - Gear 4F, Net 169 HP
VHP Plus - Gear 5F, Net 174 HP
VHP Plus - Gear 6F, Net 179 HP
VHP Plus - Gear 7F, Net 184 HP
VHP Plus - Gear 8F, Net 189 HP
VHP Plus Range - Net 108-141 kW (145-189 hp)
VHP Plus Range - Net - Metric 108-141 kW (147-192 hp)
Displacement 428 in³
Number of Cylinders 6
Derating Altitude 10000 ft
High Ambient - Fan Speed - Maximum 1,350 rpm
High Ambient - Fan Speed - Minimum 500 rpm
High - Ambient Capability 122 °F
Power Train
Forward/Reverse Gears 8 Forward/6 Reverse
Transmission Direct Drive, Powershift
Brakes - Service Multiple Oil Disc
Brakes - Service - Surface Area 3565 in²
Brakes - Parking Multiple Oil Disc
Brakes - Secondary Dual Circuit
Hydraulic System
Circuit Type Parallel
Pump Type Variable Piston
Pump Output 55.7 gal/min
Maximum System Pressure 3500 psi
Reservoir Tank Capacity 15.85 gal (US)
Standby Pressure 609 psi
Operating Specifications
Top Speed - Forward 28.4 mile/h
Top Speed - Reverse 22.4 mile/h
Turning Radius - Outside Front Tires 24.3 ft
Steering Range - Left/Right 47.5°
Articulation Angle - Left/Right 20°
Forward - 1st 2.5 mile/h
Forward - 2nd 3.4 mile/h
Forward - 3rd 4.9 mile/h
Forward - 4th 6.7 mile/h
Forward - 5th 10.4 mile/h
Forward - 6th 14.2 mile/h
Forward - 7th 19.5 mile/h
Forward - 8th 28.4 mile/h
Reverse - 1st 1.9 mile/h
Reverse - 2nd 3.9 mile/h
Reverse - 3rd 5.3 mile/h
Reverse - 4th 8.2 mile/h
Reverse - 5th 15.4 mile/h
Reverse - 6th 22.4 mile/h
Service Refill
Fuel Capacity 100 gal (US)
Cooling System 12.9 gal (US)
Hydraulic System - Tank 16.9 gal (US)
Engine Oil 7.9 gal (US)
Transmission - Differential - Final Drives 16.5 gal (US)
Tandem Housing - Each 15.6 gal (US)
Front Wheel Spindle Bearing Housing 0.13 gal (US)
Circle Drive Housing 1.8 gal (US)
Frame
Drawbar - Width 3 in
Circle - Diameter 60.2 in
Circle - Blade Beam Thickness 1.4 in
Drawbar - Height 6 in
Front Frame Structure - Height 11 in
Front Frame Structure - Width 8 in
Drawbar - Thickness 0.4 in
Front-Top/Bottom Plate - Width 10 in
Front-Top/Bottom Plate - Thickness 0.87 in
Front Axle - Height to Center 22.5 in
Front Axle - Wheel Lean - Left/Right 18°
Front Axle - Total Oscillation per Side 32°
Tandems
Height 19.8 in
Width 6.8 in
Sidewall Thickness - Inner 0.5 in
Sidewall Thickness - Outer 0.6 in
Drive Chain Pitch 1.8 in
Wheel Axle Spacing 59.5 in
Tandem Oscillation - Front Up 15°
Tandem Oscillation - Front Down 25°
Moldboard
Blade Width 12 ft
Moldboard - Height 24 in
Moldboard - Thickness 0.87 in
Arc Radius 16.3 in
Throat Clearance 4.9 in
Cutting Edge Width 6 in
Cutting Edge Thickness 0.6 in
End Bit - Width 6 in
End Bit - Thickness 0.6 in
Blade Pull - Base GVW 23737 lb
Blade Pull - Maximum GVW 29980 lb
Blade Down Pressure - Base GVW 15030 lb
Blade Down Pressure - Maximum GVW 27235 lb
Blade Range
Circle Centershift - Right 25.8 in
Circle Centershift - Left 25.8 in
Moldboard Sideshift - Right 26 in
Moldboard Sideshift - Left 20.1 in
Maximum Blade Position Angle 90°
Blade Tip Range - Forward 40°
Blade Tip Range - Backward
Maximum Lift Above Ground 16.8 in
Maximum Depth of Cut 28.3 in
Maximum Shoulder Reach Outside of Tires - Left 68.6 in
Maximum Shoulder Reach Outside of Tires - Right 75 in
Ripper
Ripper Shank Holder Spacing 21 in
Ripping Depth - Maximum 8.9 in
Ripper Shank Holders 5
Penetration Force 17692 lb
Pry-Out Force 5660 lb
Machine Length Increase, Beam Raised 41.5 in
Scarifier
Front, V-Type - Working Width 47.4 in
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing 4.6 in
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holders 5/11
Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum 18.4 in
Front, V-Type, 5 or 11 Tooth - Working Width 40.6 in
Mid, Straight - Ripping Depth, Maximum 12.5 in
Mid, Straight - Scarifier Shank Holder Spacing 4.4 in
Mid, Straight - Scarifier Shank Holders 17
Mid, Straight - Scarifying Depth, Maximum 16.8 in
Mid, Straight - Working Width 71 in
Mid, V-Type - Scarifier Shank Holder Spacing 4.6 in
Mid, V-Type - Scarifier Shank Holders 11
Mid, V-Type - Scarifying Depth, Maximum 11.5 in
Mid, V-Type - Working Width 46.6 in
Weights
Operating Weight - Typically Equipped 39892 lb
Gross Vehicle Weight - Maximum - Rear Axle 33312 lb
Gross Vehicle Weight - Base - Front Axle 8651 lb
Gross Vehicle Weight - Base - Rear Axle 26374 lb
Gross Vehicle Weight - Maximum - Total 48987 lb
Gross Vehicle Weight - Base - Total 35025 lb
Gross Vehicle Weight - Maximum - Front Axle 15675 lb
Operating Weight - Typically Equipped - Front Axle 10563 lb
Operating Weight - Typically Equipped - Rear Axle 29329 lb
Operating Weight - Typically Equipped - Total 39892 lb
Standards
Brakes ISO 3450
ROPS/FOPS ISO 3471/ISO 3449
Sound ISO 6394; ISO 6395
Steering ISO 5010
Air Conditioning System
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.88 metric tonnes.
Emissions
Note U.S. EPA Tier 4 Interim/EU Stage IIIB equivalent
Tires
17.5 R25 Tire (14x25 Rim) Dimension Adjustments - Height to Dimensions 1, 2, 8, 9, 10 -0.8 in
17.5 R25 Tire (14x25 Rim) Dimension Adjustments - Length Front Tire to Rear of Machine Dimension 6 -0.6 in
17.5 R25 Tire (14x25 Rim) Dimension Adjustments - Width to Tire Centerline Dimension 11 4.1 in
17.5 R25 Tire (14x25 Rim) Dimension Adjustments - Width to Tire Front/Rear Tires Dimensions 12, 13 7.6 in
Note Dimension changes may vary by brand/type and inflation of tires.

Features

Operator Station

Visibility
Angled cab doors, a tapered engine enclosure and patented sloped rear window assure excellent visibility to the work area.
C616104
Maximum Control, Maximum Comfort
Caterpillar has built the most comfortable cab in the industry, replacing the control levers and steering wheel with two joystick controls, and lengthening the cab for more leg room. Machine design features, like angled doors, provide excellent visibility.
CM20130807-32295-00731
Operator Comfort
The Cat Comfort Series suspension seat and arm/wrist rests are fully adjustable for improved comfort and productivity. Extra leg room, easy-to-reach long-life rocker switches and revolutionary joystick controls make this the most comfortable cab in the industry.
Standard HVAC System
The high capacity system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust and keeps windows clear.
Low Interior Sound and Vibration Levels
Multiple isolation mounts along with relocated hydraulic pump and valves significantly improve operator comfort and productivity.
CM20130807-32279-21110
In-Dash Instrument Cluster
Easy-to-read, high-visibility gauges and warning lamps keep the operator aware of critical system information.

Steering and Implement Controls

Ease of Operation
Two electro-hydraulic joysticks require up to 78% less hand and wrist movement than conventional lever controls for greatly enhanced operator comfort and efficiency. The intuitive control pattern allows both new and experienced operators to quickly become productive.
CM20130807-32275-08569
Electronically adjustable control pods help position joysticks for optimal comfort, visibility and proper operation.
Joystick Functions
  • The left joystick primarily controls the machine direction and speed including steering, articulation, return-to-center, wheel lean, gear selection, left moldboard lift cylinder and float.
  • The right joystick primarily controls drawbar, circle and moldboard functions including right moldboard lift cylinder and float, moldboard slide and tip, circle turn, drawbar center shift, electronic throttle control and manual differential lock/unlock.
Intuitive Steering Control
Joystick lean angle mirrors the steer tires' turning angle. A brake tensioning system holds the joystick in position until the operator moves it. The steering control automatically reduces steering sensitivity at higher ground speeds for comfortable and predictable control.
Electronic Throttle Control
Provides easy, precise and consistent throttle operation. An automatic/manual mode switch offers flexibility for different applications and operator preferences.
CM20130807-32319-32262
Articulation Return-to-Center
Automatically returns the machine to a straight frame position from any angle with the touch of a button.
CM20130807-32322-04894
Auxiliary Pod and Ripper Control (Optional)
Ergonomically positioned to allow simple, comfortable operation for the multiple hydraulic options.
  • Four fingertip controls and a mini joystick maximize control of up to six hydraulic circuits. Individual functions can be programmed with Electronic Technician (Cat ET). The auxiliary hydraulic pod is provided when the machine is configured with three or more auxiliary functions.
  • Infinitely variable roller switches provide precise control of the rear ripper and/or front lift group (when equipped).
Optional Advanced Control Joysticks
Cat Advanced Control Joysticks allow the operator to easily control automated grading solutions, Cat GRADE with Cross Slope, AccuGrade™, and Snow Wing. Both new and experienced operators can also configure auxiliary hydraulic functions (such as ripper, front plow blade, etc.) without taking their hands off the controls decreasing fatigue, increasing productivity.
C10555257

Emissions Technology

Cat NOx Reduction System
The Cat NOx Reduction System captures and cools a small quantity of exhaust gas, then routes it into the combustion chamber where it drives down combustion temperatures and reduces NOx emissions.
Aftertreatment Technologies
To meet Tier 4 Interim/Stage IIIB equivalent emission standards and beyond, Cat aftertreatment components have been designed to match application needs. System components include a Diesel Oxidation Catalyst (DOC), which uses a chemical process to convert regulated emissions in the exhaust system, and a Diesel Particulate Filter (DPF) that traps particulate matter that is carried into the exhaust stream.
CM20130807-32338-17732
The DOC, DPF and Cat Regeneration System are contained in a Caterpillar designed Clean Emission Module (CEM) that protects the components, minimizes the aftertreatment footprint and simplifies maintenance.
Cat Regeneration System
The Cat Regeneration System is designed to work transparently, without any interaction needed from the operator. Under most operating conditions, engine exhaust is hot enough to oxidize soot through passive regeneration. If supplemental regeneration is needed, the Cat Regeneration System elevates exhaust gas temperatures to remove soot in the Diesel Particulate Filter (DPF). This is a process that happens automatically, but the operator can initiate the cycle when convenient or interrupt regeneration as needed. A soot level monitor can be viewed on the Cat Messenger screen and regeneration indicator lights are integrated into the front console.

Engine

A C7.1 ACERT engine and Cat Clean Emissions Module deliver the performance and efficiency that customers demand, while meeting Tier 4 Interim/Stage IIIB equivalent emission standards.
C699273
The C7.1 ACERT has superior torque and lugging capability to pull through sudden, short-term loads and maintain consistent, desirable grading speeds to get work done faster without downshifting. The High Pressure Common Rail Fuel System improves precision and control with full electronic injection that boosts performance and reduces soot.
Hydraulic Demand Fan
The hydraulic demand fan automatically adjusts cooling fan speed according to engine cooling requirements. This reduces demand on the engine, putting more horsepower to the ground and improves fuel efficiency. Swing-out design allows easy access to cooling cores and reduces clean out time.

Power Train

Automatic Differential Lock
Unlocks the differential during a turn, re-locks when straight, for easier operation and lower power train protection.
Front Axle
The Cat sealed spindle keeps bearings free from contaminants and lubricated in a light weight oil. The Cat “Live Spindle” design places the larger tapered roller bearing outboard where the load is greater, extending bearing life.
Inching Pedal
Allows precise control of machine movements and excellent modulation, critical in close-quarter work or finish grading.
Smooth Shifting Transmission
Several key innovations ensure smooth, powerful shifts.
  • Full Electronic Clutch Pressure Control (ECPC) system optimizes inching modulation for smooth shifts and directional changes, reducing stress on gears.
  • Controlled Throttle Shifting helps to smooth directional and gear changes without using the inching pedal.
  • Load Compensation ensures consistent shift quality regardless of blade or machine load.
  • This standard feature automatically shifts the transmission at optimal points so the operator can focus on the work to help improve safety, productivity and ease of operation.
  • Power Shift Countershaft Transmission and the Cat C7.1 engine maximize power to the ground. Eight forward/six reverse gears optimize productivity.
  • Engine Over-Speed Protection prevents downshifting until an acceptable safe travel speed has been established.
Bolt-On Modular Rear Axle
Improves serviceability and contamination control with easy access to differential components.
Hydraulic Brakes
Hydraulically actuated, oil bathed, multi-disc service brakes at each tandem wheel (1) offer the industry's largest total brake surface area (2) for dependable stopping power and long brake life. The brake wear indicator/compensator system (3) maintains brake performance and indicates brake wear without disassembly, for fast servicing and longer brake service life. The spring-applied, hydraulically released multi-disc parking brake, sealed and oil-cooled for long life and low service, is integrated into the Operator Presence System to prevent unintended machine movement.
C616108

Structures and DCM

Heavy Duty Durability
The frame, drawbar and one-piece forged steel circle are designed for durability in heavy duty applications. The strong A-frame drawbar uses a durable tubular design. The front 240° of circle teeth are hardened to reduce wear and ensure component reliability.
CM20130914-65252-23919
Articulation Hitch
A large tapered roller bearing at the lower pivot carries loads evenly and smoothly. Sealed to prevent contamination, a locking pin prevents articulation for safety during service or transport.
CM20130807-32303-00381
Aggressive Blade Angle
Allows material to roll more freely along the blade, particularly dry materials or cohesive soils. Better material control gets the job done faster, requires less power and saves fuel.
Fast, Easy Adjustment Means Tight Components
Shims and patented top-adjust wear strips are easy to add or replace, dramatically reducing downtime and operating costs. Durable nylon composite wear inserts maximize circle torque and component life. Sacrificial brass wear strips between the blade mounting group and moldboard can be replaced easily. Shimless Moldboard Retention System uses vertical and horizontal adjusting screws to keep moldboard wear strips aligned for reduced blade chatter, precise blade control and dramatic reductions in service time.
Moldboard
Heat-treated rails, hardened cutting edges and end bits, and heavy duty bolts assure reliability and long service life. The link bar allows extreme moldboard positioning for bank sloping, ditch cutting and cleaning.
C616104

“Smart” Machine Systems

Sharing key data among systems helps optimize machine performance and aids serviceability.
  • Cat Messenger, combined with full systems integration, enhances diagnostic capability. Machine system errors are displayed in both text and fault codes for quick analysis of critical data.
  • Electronic Technician (Cat ET) lets service technicians access stored diagnostic data and configure machine parameters through the Cat Data Link.
  • Low Battery Elevated Idle raises idle speed when low system voltage is detected, ensuring adequate system voltage and improving battery reliability.
  • Automatic Engine Deration protects the engine and aftertreatment by automatically lowering engine torque output and alerting the operator if critical conditions are detected.

Integrated Technologies

Cat Connect makes smart use of technology and services to improve your job site efficiency. Using the data from technology-equipped machines, you'll get more information and insight into your equipment and operations than ever before.
LINK Technologies
LINK technologies, like Product Link™, are deeply integrated into your machine and wirelessly communicates key information, including location, hours, fuel usage, idle time and event codes.
Product Link/VisionLink®
Easy access to Product Link data via the online VisionLink user interface can help you see how your machine or fleet is performing. You can use this information to make timely, fact based decisions that can boost job site efficiency and productivity, and lower costs.
GRADE Technologies
Grade technologies combine digital design data and in-cab guidance to help you reach target grade quickly and accurately, with minimal staking and checking. That means you'll be more productive, complete jobs faster, in fewer passes, using less fuel, at a lower cost.
C616107
Cat GRADE with Cross Slope
Cat GRADE with Cross Slope is an integrated 2D system that provides automated control to one side of the blade to help operators more easily achieve accurate surface cross slope. The system calculates blade slope positioning and adjusts the left or right cylinder to achieve target slope, reducing operator inputs by up to 50%. The operator can select which side of the blade to control automatically and swap direction on the return pass without readjusting the settings. Elevation is controlled manually by matching grade or automatically by adding an elevation control device, such as a sonic or laser. The operator can monitor cross slope in real-time on the in-cab display and make quick adjustments using integrated joystick buttons while keeping hands on the controls.
C616108
Cross slope systems are ideal for maintaining accurate cross slope over long distances with greater consistency and less effort. Add AccuGrade for additional 2D and/or 3D control.
Cat AccuGrade™
The dealer-installed AccuGrade system uses a dedicated monitor with a digital design plan for 3D blade slope and elevation control. AccuGrade indicates precisely where to work and how much to cut or fill – eliminating staking and checking. Plug and play capability simplifies upgrading. Choose from sonic or laser for flat planes and slopes, and satellite (GNSS) or total station (UTS) control for large complex designs.
Stable Grade
Optional Stable Grade detects and reduces machine bounce during operation before it negatively affects the desired grade by reducing engine rpm at 15% intervals as needed to stabilize machine bounce. Once the motor grader has stabilized, Stable Grade modulates increased speed back to the set level.

Hydraulics

Advanced Electro-Hydraulic System
Incorporates a state-of-the-art electro-hydraulic system as the foundation for revolutionary changes in machine and advanced joystick controls.
Blade Float
Allows the blade to move freely under its own weight. By floating both cylinders, the blade can follow the contours of the road, especially useful when removing snow. Floating only one cylinder permits the toe of the blade to follow a hard surface while the operator controls the slope with the other lift cylinder.
Independent Oil Supply
Large, separate hydraulic oil supplies prevent cross-contamination and provide proper oil cooling, which reduces heat build-up and extends component life.
Load Sensing Hydraulics (PPPC)
The proven load-sensing system and the advanced Proportional Priority Pressure-Compensating (PPPC or “triple P – C”) electro-hydraulic valves provide superior implement control and enhanced machine performance in all applications. Continuously matching hydraulic flow/pressure to power demands creates less heat and reduces power consumption.
  • Consistent, Predictable Movement – PPPC valves have different flow rates for the head (red) and rod ends (blue) of the cylinder, ensuring consistent extension and retraction speeds.
  • Balanced Flow – Hydraulic flow is proportioned so all implements operate simultaneously with little effect on the engine or implement speeds.
C699273

Work Tools and Attachments

Moldboard Options
Standard 3.7 m (12 ft) or optional 4.3 m (14 ft). Left and right side extensions are also available.
Ground Engaging Tools (GET)
A variety of tools are available from Cat Work Tools, including cutting edges, graderbits and end bits, all designed for maximum service life and productivity.
Front Mounted Groups
A front mounted push plate/counterweight or front lift group are available. The front lift group can be combined with a front dozer blade or front scarifier for added versatility.
CM20130807-32289-56776
Rear Ripper/Scarifier
Made to penetrate tough material fast and rip thoroughly for easier movement with the moldboard. The ripper includes three shanks (with holders for five). Nine scarifier shanks can also be added for additional versatility.
C616115
Snow Removal Work Tools
Multiple snow plow, snow wing and mounting options increase machine versatility and utilization throughout the year.

Safety

Designed with Protection in Mind
Features are designed to enhance operator and job site safety, such as drop-down rear lights and a rearview camera. Among many standard safety features are laminated glass, back-up lights, and perforated tandem walkways and grab rails.
C616115
Operator Presence System
The parking brake remains engaged and hydraulic implements disabled until the operator is initially seated and the machine is ready for operation.
CM20140915-34992-36503
Secondary Steering System
Automatically engages an electric hydraulic pump in case of a drop in steering pressure, allowing the operator to steer the machine to a stop.
Hydraulic Lockout
A simple switch located in the cab disables all implement functions while still providing machine steering control. This safety feature is especially useful while roading.
Brake Systems
Brakes are located at each tandem wheel to eliminate braking loads on the power train. Redundant brake systems utilize accumulators to enable stopping in case of machine failure, further increasing operational safety.
CM20130807-32354-42473
Circle Drive Slip Clutch
This standard feature protects the drawbar, circle and moldboard from shock loads when the blade encounters an immovable object. It also reduces the possibility of abrupt directional changes in poor traction conditions.
Blade Lift Accumulators (Optional)
This optional feature uses accumulators to help absorb impact loads to the moldboard by allowing vertical blade travel. Blade lift accumulators help reduce unnecessary wear and also help reduce impact loading for enhanced operator safety.
C616107
Rearview Camera (Optional)
Visibility is further enhanced with an optional Work Area Vision System (WAVS) through a 178 mm (7 in) LCD color monitor in the cab. Developed specifically for rugged applications, this durable camera improves productivity and increases operator awareness of surroundings.
Front and Rear Fenders (Optional)
To help reduce objects flying from the tires, as well as build-up of mud, snow and debris, optional fenders can be added.
CM20150927-34828-23290

Customer Support

Renowned Dealer Service
From helping you choose the right machine to financing and ongoing support, your Cat dealer provides the best in sales and service.
Manage your costs with preventive maintenance programs like S∙O∙SSM analysis, Coolant Sampling and guaranteed maintenance contracts.
Stay productive with best-in-class parts availability. Your Cat dealer can even help boost your profits with operator training.
C10555257
And when it's time for component replacement, your Cat dealer can help you save even more. Genuine Cat Remanufactured parts carry the same warranty and reliability as new products at savings of 40 to 70 percent for power train and hydraulic components.
CM20150927-34828-23290

Sustainability

M Series 2 Motor Graders are designed to benefit your business and reduce emissions.
  • Cat engine and aftertreatment meet Tier 4 Interim/Stage IIIB equivalent emission standards.
  • Integrated machine systems and technologies improve productivity for greater accuracy, lower fuel use and reduced machine wear.
  • Replaceable wear parts save maintenance time and cost, and extend major component life.
  • Major structures and components are built to be rebuilt, reducing waste and replacement costs.
  • Extended service intervals reduce maintenance time/cost and waste.
  • A variety of safety features help safeguard operators and others on the job site.
C670255

View product in 360°

Drag your mouse to rotate the product

Contact



Please contact us for requests or advise.



  • Call
  • Arrow

Request a quotation



250/250
Contact Close Icon - Contact Sticky Cross
  • Call
  • Arrow

Call us

Send us an e-mail

How would you like us to contact you? *
250/250



Fill in the form below and I will contact you as soon as possible.



How would you like us to contact you? *
250/250
web-monitoring-ok
