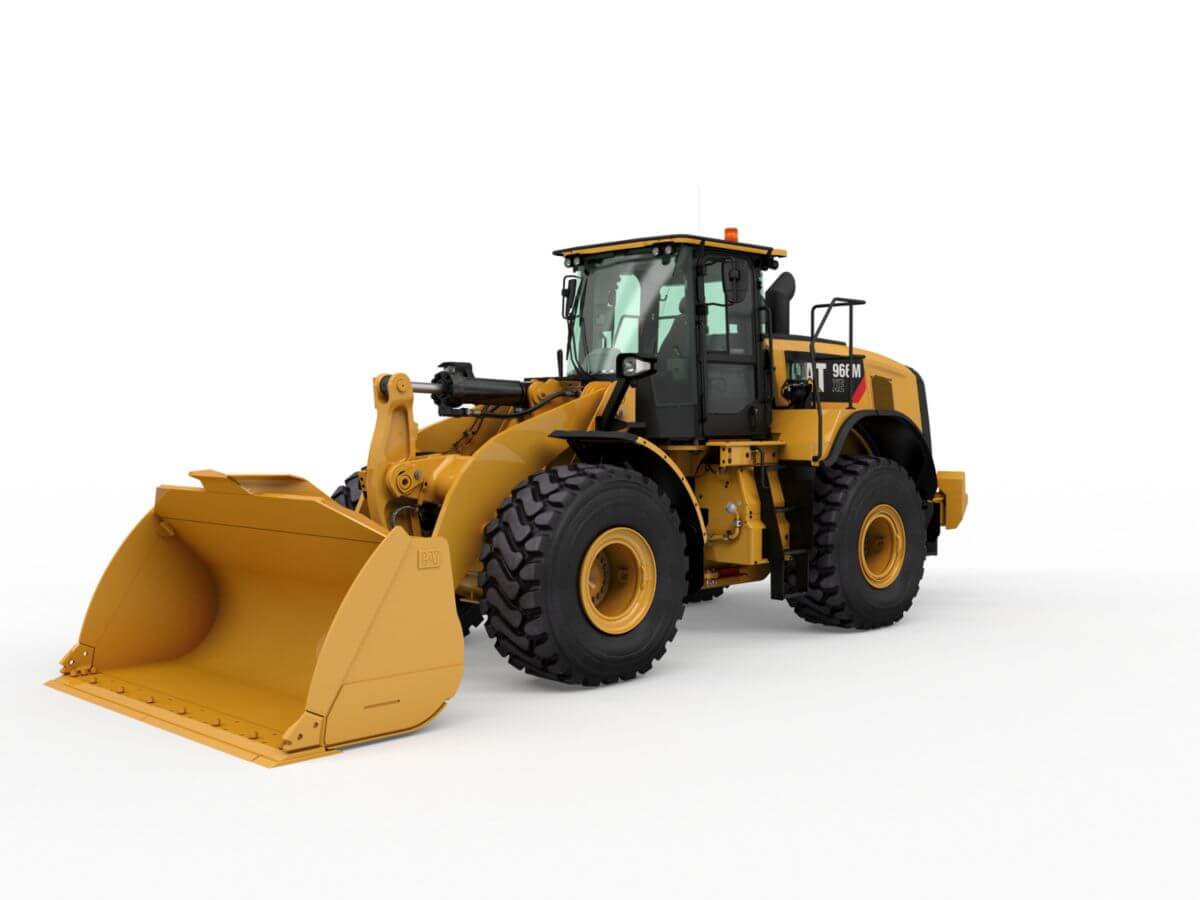

Cat 966M XE

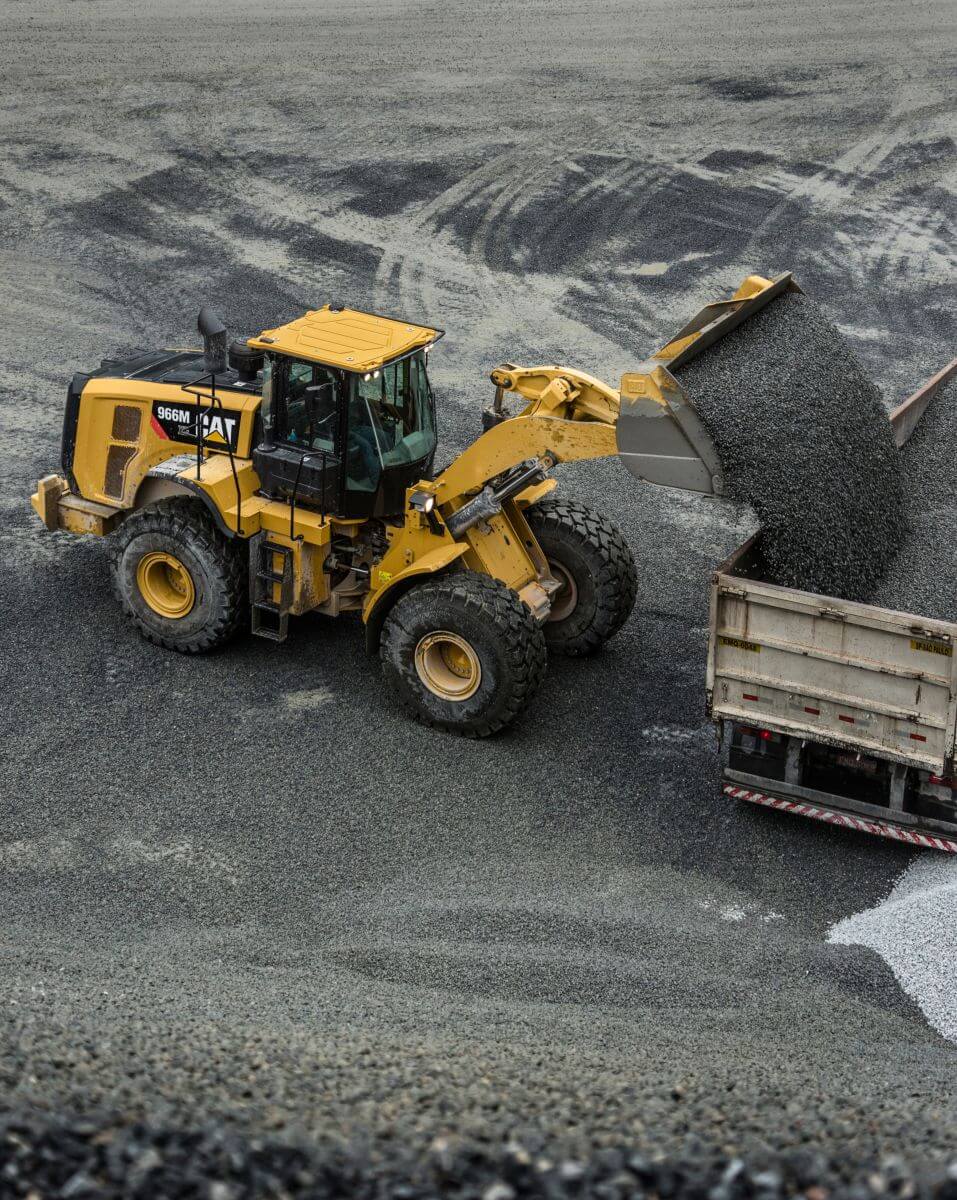

966M XE Medium Wheel Loader Filling a Truck

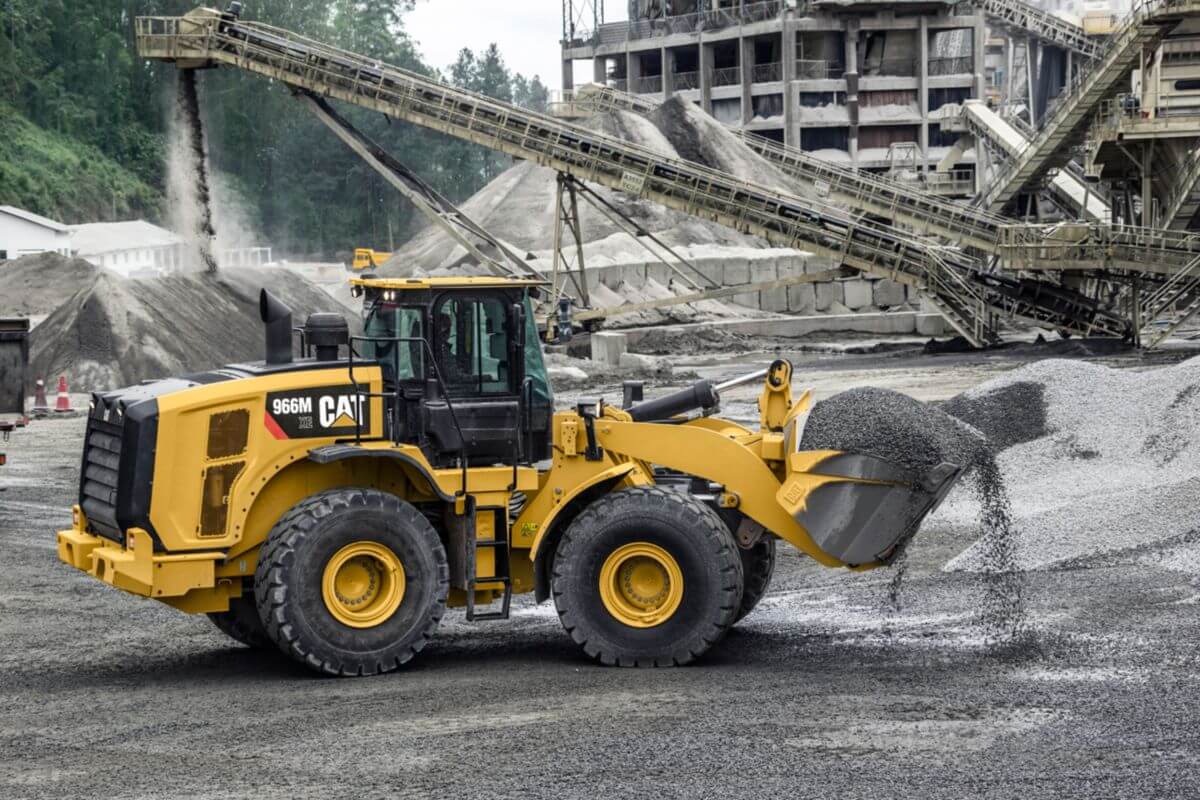

966M XE Medium Wheel Loader Moving Gravel

966M XE Medium Wheel Loader Scooping Gravel

About the Cat 966M XE

This product has expired. The Cat® 966M XE Wheel Loader is the class leader in fuel efficiency and offers significantly lower long-term costs. This machine meets emission standards and is designed to improve fuel economy without interrupting performance. The reliability, durability, and versatility results in a machine that is better built to meet your needs.

Specifications

Engine

Emissions	Tier 4/Stage IV
Engine Model	Cat C9.3
Note	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.

Buckets

Bucket Capacities

3.20-7.40 m³ (4.19-9.68 yd³)

Sound

Note (1)	*Distance of 15 m (49.2 ft), moving forward in second gear ratio.
Note (2)	**For machines in European Union countries and in countries that adopt the EU Directives.
With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)**	105 LWA***
With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013)	76 dB(A)*
Note (3)	***European Union Directive 2000/14/EC as amended by 2005/88/EC.

Hydraulic System

Implement Pump Type

Variable Displacement Piston

Operating Specifications

Note (2)	Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Note (1)	For a machine configuration as defined under "Weight."

Dimensions - High Lift

Rack Back - Carry Height	49 degrees
Rack Back at Ground	39 degrees
Note	All dimensions are approximate and based on L3 XHA2 tires.
Rack Back - Maximum Lift	71 degrees

Dimensions - Standard Lift

Note	All dimensions are approximate and based on L3 XHA2 tires.
Rack Back - Carry Height	50 degrees
Rack Back - Maximum Lift	62 degrees
Rack Back at Ground	42 degrees

Weights

Note	Weight based on a machine configuration with Michelin 26.5R25 XHA2 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, manual diff lock/open axles (front/rear), power train guard, secondary steering,

Transmission - Virtual Gears

Note	Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 826 mm (32.5 in) roll radius.

Bucket Capacities

3.20-7.40 m³ (4.19-9.68 yd³)

Engine - Tier 4 Final/Stage IV

Emissions

Tier 4/Stage IV

Features

SUPERIOR FUEL EFFICIENCY

Deep system integration of the Cat continuously variable transmission, engine system, hydraulic system, transmission and cooling system results in significantly increased performance and fuel efficiency.
Lowering the rated engine speed and eliminating the torque converter results in speed that can be controlled independently of the engine speed.
Our high-power density and fuel efficient engines feature Cat electronics, a fuel injection process, and air-management systems.

ACHIEVE GREATER PRODUCTIVITY

Continuously variable transmission delivers smooth shifts, fast acceleration, and speed on grade.
Machine maneuvering on grade is made easy with steady deceleration and anti-rollback.
Integrated continuously variable transmission provides maximum, steady power at optimal speeds.
Easy-to-load performance series buckets improve material retention and reduce dig times, significantly improving productivity and fuel efficiency.
Differential locks are activated on the spot, improving traction for increased productivity.
Dual ride control accumulator system enables a wide payload range and better ride quality.
Aggregate packages with specialized offerings for loose aggregate rehandling applications.*

* Optional configurations and equipment may vary from region to region and requires conformance to Caterpillar payload policy. Consult your dealer or Caterpillar representative for details.

PROVEN RELIABILITY

Cat C9.3 engine offers increased power density with a combination of proven electronic fuel and air systems.
Equipped with automatic Cat regeneration system, Cat clean emissions module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump.
Features an electric fuel priming pump and a fuel/water separator.
Thorough component design and machine validation processes result in unmatched reliability and uptime.

LONG TERM VALUE AND DURABILITY

Advanced transmission and axles handle the most extreme applications.
The durable frame absorbs excavation and loading impact while the hitch system provides high-bearing force capacity.
Full-flow hydraulic filtration system with additional loop filtration improves hydraulic system strength and component life.

TECHNOLOGY THAT GETS WORK DONE

Developed to monitor, manage, and enhance your job site operations.
PAYLOAD provides accurate weighing* of the materials you are loading and hauling. Payload data is displayed in real-time to improve productivity and reduce overloading.
DETECT enhances awareness of the environment around working equipment and provides alerts to help keep people and assets safe on the job site.
LINK wirelessly connects you to your equipment, giving you access to essential information you need to know to run your business. Gain valuable insight into how your machine or fleet is performing allowing you to make timely, fact-based decisions that can boost job site efficiency and productivity.
Optional Advanced Productivity subscription provides comprehensive actionable information to help you manage and improve the productivity and profitability of your operations.

* Not legal for trade.

SAFELY HOME EVERY DAY

Cab access with wide door, optional remote door opening, and stair-like steps add solid stability.
Floor-to-ceiling windshield, large mirrors with integrated spot mirrors, and rear-vision camera provide industry leading all-around visibility.
Computerized monitoring system includes several warning indicators.
Rear vision camera enhances visibility behind the machine, helping you work safely and confidently.
Optional rear object detection radar system warns you of an object in critical zone while going in reverse, enhancing job site safety.

SAVE ON SERVICE AND MAINTENANCE

Extended service intervals including -

Engine oil and engine oil filter change interval up to 1000 hours
Hydraulic filter change interval up to 1000 hours
Transmission oil change interval up to 4000 hours

One-piece tilting hood makes cab access fast and easy.
Electrical service centers enhance convenience and accessibility.
Access to fuel fill and daily maintenance points means less servicing time is required.
Optional integrated Cat autolube system provides full lube system monitoring and diagnostic test visibility.
Remote flash support.
Longer tire life with on-the-go traction aids.

Cat 966M XE Wheel Loader - SAVE ON SERVICE AND MAINTENANCE

DESIGNED FOR OPERATORS

The next generation easily adjustable seat with updated styling and a revolutionary suspension system. It comes in three trim levels and can be equipped with a 4-point harness.
Sound-suppression, seals, and damping cab mounts decrease noise and vibration for a quieter work environment.
The seat-mounted electro-hydraulic joystick steering system provides precision control and dramatically reduces arm fatigue, resulting in excellent comfort and accuracy.
Electrohydraulic (EH) controls, parking brake, and Single Axis Lever (SAL) lift and tilt function allow for better handling and control management.
Smart ergonomic controls are easy to use, intuitive, and user-friendly.
Touchscreen multi-function color display keeps operators focused.
The next generation of ride control works as a shock absorber, improving ride quality over rough terrain.
Inclined steps and convenient grab handles ease accessibility to the operating space.
Extended windows enhance visibility while convex and spot mirrors extend the driver’s view on the sides and rear.

PURPOSE BUILT SPECIALTY MODELS

INDUSTRIAL & WASTE

Engineered for work in Transfer Stations, Recycling Depots, Scrap Yards and Demolition Sites.
Factory installed guarding improves uptime; guards protect axle seals, steering cylinders, crankcase, front frame, powertrain, tilt cylinders, lower cab and rear box. Package includes reinforced service centers, heavy duty cable steps, lift cylinder baffles, narrow front fenders, and steel rear fender deflectors.
Factory installed options available are solid tires, rear machine guard, rubber mounted cab glass, engine precleaner, powered and filtered cab precleaner and variable pitch cooling fan.
Cat Waste Buckets available separately are Load & Carry, Tamp & Clamp, Dozing, and Grapple can be fitted with steel or rubber cutting edge.

FORESTRY

Designed for efficiency and productivity log and chip handling in paper, pellet and saw mills.
966M XE Forest Machine includes logger counterweight to maintain stability carrying heavy loads, logger lift arm and tilt lever with larger tilt cylinders increase machine capacity 19% over base model and logger implement valve.
Factory options available are Fusion or VCE quick coupler, 3rd or 4th function hydraulics to operate top or high dump bucket, front windshield guard, variable pitch fan, high debris cooler cores, engine precleaner, axle oil coolers and premium LED lighting package.
Work Tools available separately are Sorting Grapple, Millyard, Logging, Pole and Log & Lumber Forks and Light Material High Dump and Chip Buckets.

CORROSION RESISTANCE

Designed for corrosive environments such as fertilizer plants, chemical industries, agriculture, salt water ports and others.
Factory protection of all machine components that can be affected by corrosive materials.
Treatment includes E-Coat cooler cores, additional coating on main hydraulic valve, heat treated shrink sealant on hydraulic hoses, fittings and electrical wiring, all hinges greased, Zerust® vapor enclosure for electronic components, extra heavy duty alternator, turbine engine precleaner and varnish protection on engine compartment, internal chassis and all non-painted metallic parts.
