Cat 930M Waste Handler Small Wheel Loader

View brochure Request quotation
Studio Shot
Front View
Top View
Left View
Rear View
Bottom View
Right View

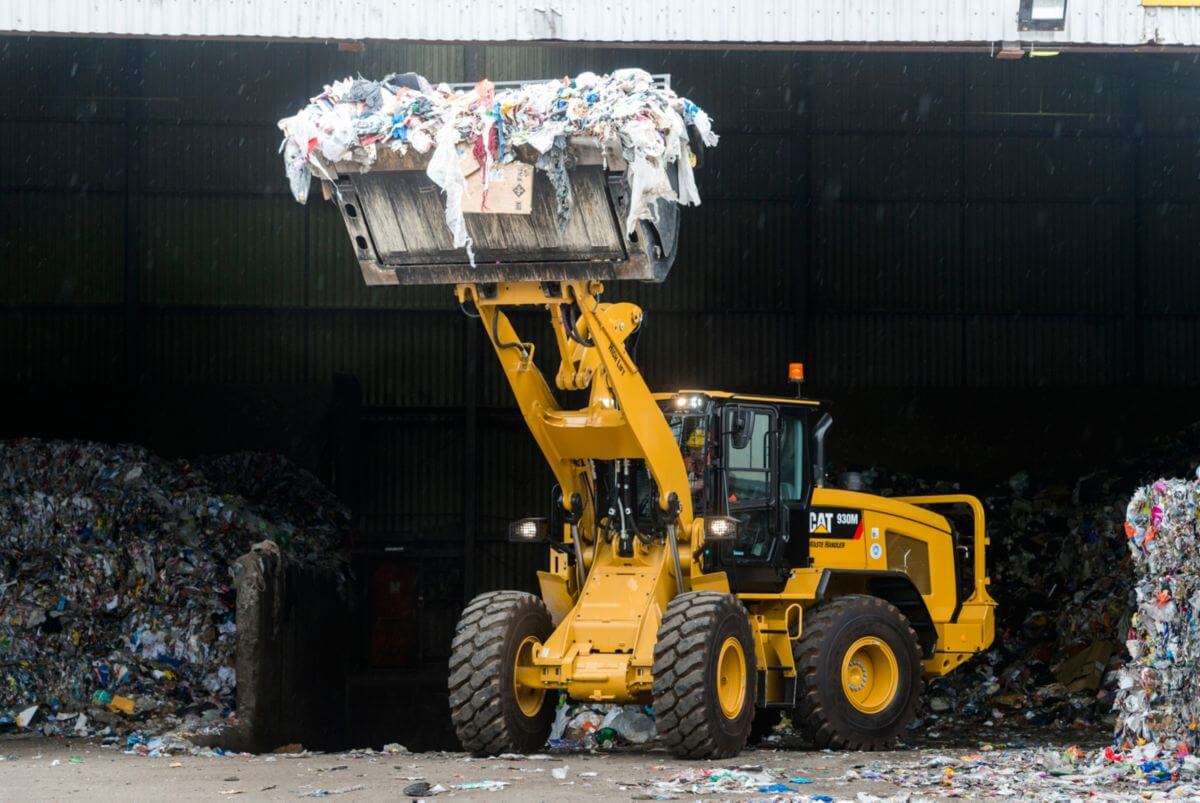

930M Waste Handler

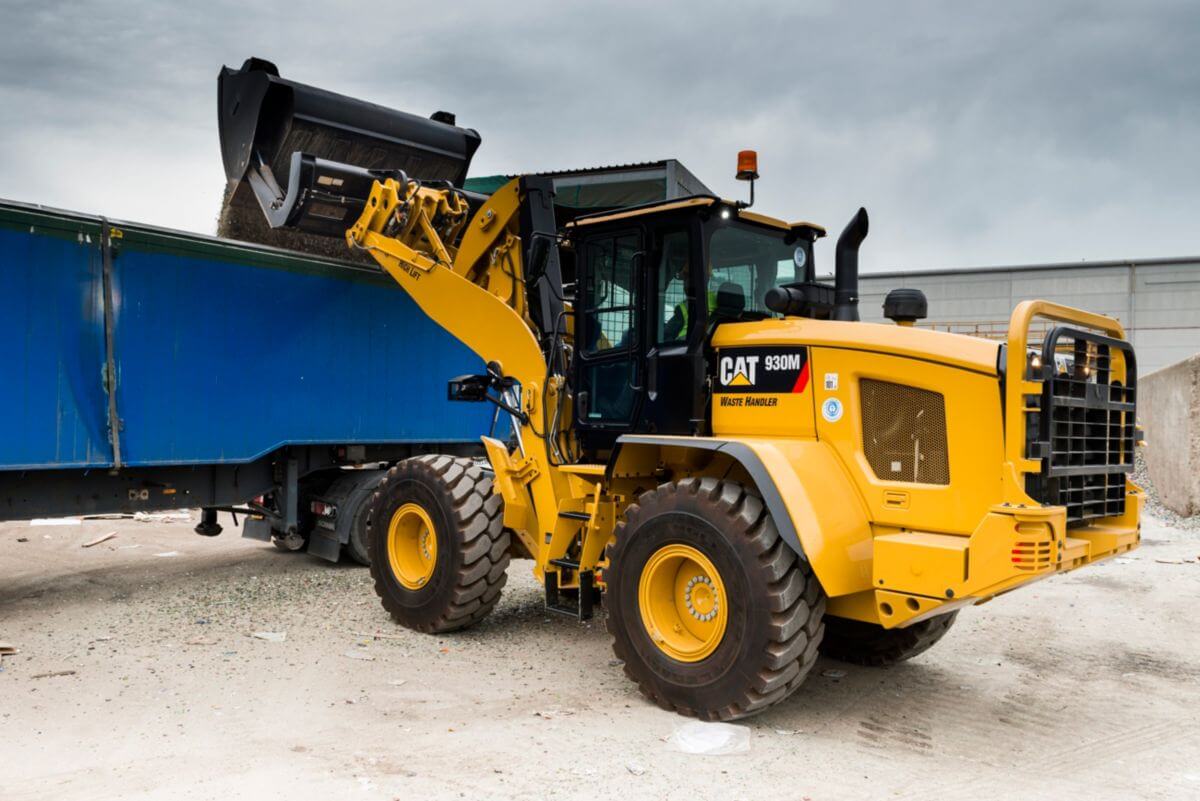

930M Waste Handler
930M Waste Handler
930M Waste Handler
930M Waste Handler

About the Cat 930M Waste Handler Small Wheel Loader



The Cat 930M Waste Handler sets a new standard for productivity, fuel efficiency and comfort. A high torque, low speed C7.1 ACERT engine works in concert with an intelligent hystat power train to deliver fuel efficiency as standard. A complete range of guarding and debris management solutions are available to meet the needs of the most demanding environments. Extremely low sound levels, large spacious cab and intuitive controls keep you working comfortably all day and even all night! Experience the new industry benchmark.

Specifications

Engine
Maximum Rated Gross Power - ISO 14396 164 HP
Maximum Rated Gross Power - ISO 14396 (DIN) 166 HP
Maximum Rated Gross Power - ISO 14396 (DIN) (Performance [HP+] Power Mode: Range 1-4) 166 HP
Maximum Rated Gross Power - ISO 14396 (Performance [HP+] Power Mode: Range 1-4) 164 HP
Maximum Rated Gross Power - Maximum Engine Speed (Performance [HP+] Power Mode: Range 1-4) 1800 r/min
Rated Net Power - 1,800 rpm - ISO 9249 (1977)/EEC 80/1269 at Minimum Fan Speed (Performance [HP+] Power Mode: Range 1-4) 160 HP
Rated Net Power - 1,800 rpm - SAE J1349 at Minimum Fan Speed (Performance [HP+] Power Mode: Range 1-4) 157 HP
Maximum Gross Power 164 HP
Bore 4 in
Stroke 5 in
Displacement 427 in³
Maximum Gross Torque - ISO 14396 (Performance [HP+] Power Mode: Range 1-4) 592 ft·lbf
Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3*) 592 ft·lbf
Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Performance [HP+] Power Mode: Range 1-4) 572 ft·lbf
Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Standard Power Mode: Range 1-3*) 572 ft·lbf
Maximum Net Torque - SAE J1349 (Performance [HP+] Power Mode: Range 1-4) 566 ft·lbf
Maximum Net Torque - SAE J1349 (Standard Power Mode: Range 1-3*) 566 ft·lbf
Maximum Rated Gross Power - ISO 14396 (DIN) (Standard Power Mode: Range 1-3*) 162 HP
Maximum Rated Gross Power - ISO 14396 (Standard Power Mode: Range 1-3*) 160 HP
Maximum Rated Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3*) 1600 r/min
Rated Net Power - 1,600 rpm - ISO 9249 (1977)/EEC 80/1269 at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 156 HP
Rated Net Power - 1,600 rpm - ISO 9249 (DIN) at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 158 HP
Rated Net Power - 1,600 rpm - SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 154 HP
Rated Net Power - 1,800 rpm - ISO 9249 (DIN) at Minimum Fan Speed (Performance [HP+] Power Mode: Range 1-4) 162 HP
Weights
Operating Weight 33396 lb
Cab
Declared Sound Levels - Exterior Sound Power Level (ISO 6395:2008)* 101 dB(A)
Declared Sound Levels - Operator Sound Pressure Level (ISO 6396:2008)* 68 dB(A)
Loader Hydraulic System
Lift Cylinder, Double Acting - Bore Diameter 4.7 in
Lift Cylinder, Double Acting - Rod Diameter 2.6 in
Lift Cylinder, Double Acting - Stroke 28.7 in
Maximum Flow - Implement Pump 50 gal/min
Maximum Flow - Implement Pump - 3rd Function* 50 gal/min
Maximum Working Pressure - Implement Pump 3626 psi
Relief Pressure - Tilt Cylinder 4061 psi
Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure 3626 psi
Relief Pressure - Tilt Cylinder - 3rd Function Relief Pressure 4061 psi
Tilt Cylinder, Double Acting - Bore Diameter 5.9 in
Tilt Cylinder, Double Acting - Rod Diameter 3.5 in
Tilt Cylinder, Double Acting - Stroke 21.9 in
Operating Specifications
Full Turn Tip Load 18163 lb
Service Refill Capacities
Cooling System 7.9 gal (US)
Diesel Exhaust Fluid (DEF) Tank 5 gal (US)
Engine Crankcase 5.3 gal (US)
Front Axles 6.9 gal (US)
Fuel Tank 51.5 gal (US)
Hydraulic System - Including Tank 43.6 gal (US)
Hydraulic Tank 23.8 gal (US)
Rear Axles 6.6 gal (US)
Transmission - Gear Box 2.2 gal (US)
Steering
Maximum Flow - Steering Pump 34 gal/min
Maximum Steering Torque - 0° (Straight Machine) 37155 ft·lbf
Maximum Steering Torque - 40° (Full Turn) 27747 ft·lbf
Maximum Working Pressure - Steering Pump 3500 psi
Steering Cycle Times - Full Left to Full Right - Maximum RPM: 90 rpm Steering Wheel Speed 2.4 s
Steering Cycle Times - Full Left to Full Right - Minimum RPM: Pump Flow Limited 2.8 s
Steering Cylinder, Double Acting - Bore Diameter 2.8 in
Steering Cylinder, Double Acting - Rod Diameter 1.6 in
Steering Cylinder, Double Acting - Stroke 17.2 in
Transmission
Forward and Reverse - Range 2 8 mile/h
Forward and Reverse - Range 3 17 mile/h
Forward and Reverse - Range 4 25 mile/h

Features

Application Specific Configuration

Guard Your Investment
Choose from a complete range of optional guarding to protect your machine from the harsh environment of a waste handling application. The machine guarding is purpose built to protect the machine's major components and systems to keep you on the job and maximize production rates.
Breathe Clean
Maximize your engine life and extend filter cleaning intervals with a turbine pre-cleaner. Keep cool with a reversing fan to purge the single plane, widely spaced core cooling package and brush-less sealed alternator. Breath clean with a powered RESPA system for the operator environment designed to eliminate 90% of the particulate in the air and filter the remaining 10%.
Maximize Tire Life
Fine tune your wheel torque to match the underfoot conditions and maximize performance while extending tire life. Cat Waste Handlers feature wheel torque adjustments through an exclusive Rimpull Control feature designed to keep your operating costs low.

Customize Your Experience

Work as one with your machine by customizing the controls.
Flexible Power Train
A smooth, step-less electronically controlled hydrostatic transmission provides adjustable power to the ground with excellent groundspeed control and customizable feel.
  • Select your Power Train Mode:
    • Torque Converter (TC) for smooth rollout.
    • Hystat for aggressive engine braking.
    • Default mode which blends the best of Hystat and Torque Converter characteristics.
  • Reduce tire wear using Rimpull control which enables you to match available tractive power to underfoot conditions
  • Set Directional Shift Response, soft and smooth for material handling applications or sharp for aggressive operation.
Adjustable Electro Hydraulic Controls
Easily customize the hydraulic performance through touch screen display to optimize your efficiency.
  • Optimize hydraulic modulation with Fine Mode control when working with forks.
  • Quicker Hydraulic response for fine grading at speed and quick functions through Lift and Tilt response settings.
  • Fully adjustable ride control activation speed along with 3rd function auxiliary flow for powering a roll out bucket.
Operator Profiles and Coded Start
  • The M Series Wheel Loaders will remember you and your personal settings with unique operator codes to make this machine truly yours and keep it secure on the job site.

Efficiently Powerful

Power on Demand
A choice of Power Modes allows you to choose between maximum fuel efficiency or boosted power along with hydraulic speed to get your work done even quicker.
Standard Power Mode
  • Saves up to 10% fuel compared to previous K Series models while running at an efficient 1,600 rpm.
  • Recommended for load and carry to maximize fuel efficiency.
  • Power-by-range logic increases power in speed Range 4 automatically to maximize travel speed and grade climbing performance.
  • Reduces cab sound levels down to a whisper quiet 64 dB(A) typical.
Performance Power Mode
  • Enabled at the push of a button (HP+).
  • Boosts engine power by up to 10% in all speed ranges.
  • Boosts engine speed by over 12%.
  • Increases hydraulic cycle times and productivity.
Six Cylinders of Efficient Power
The Cat C7.1 ACERT engine provides more efficient, quieter operation while delivering superior performance and durability through a high torque, low speed design. The engine meets U.S. EPA Tier 4 Final and EU Stage IV emission standards with a Clean Emissions Module that is designed to manage itself so you can concentrate on your work.
  • No downtime for regeneration with a passive low temperature system that keeps you on the job.
  • Fit for Life Diesel Particulate Filter that is designed to exceed the engine overhaul life.
  • Extended fluid fill intervals with minimal use of Diesel Exhaust Fluid (DEF) with up to four fuel tank fills per DEF fill.
  • Configurable auto idle shut down based on time and ambient temperature to further reduce fuel burn and keep operating costs low.
  • Spark arrester performance as standard – Meets the performance requirements of EN 1834-1.2000 (section 6.4.2 Visual Test)
Power to the Ground
Lock up and go with fully locking front differential axles that can be engaged on the move at full torque with the pull of a trigger on the seat mounted joystick. Maximize your traction with optional Limited Slip Differential on the rear axle to keep you climbing.
Independent service brakes on front and rear axles provide robust stopping performance while a push button electronic park brake allows you to safely secure the machine with ease.

Work Made Easy

Optimized Z-bar Linkage
The Caterpillar patented optimized Z-bar linkage combines the digging efficiency of a traditional Z-bar with integrated tool carrier capabilities for great performance and versatility.
  • Perfect Parallelism functionality available in Fork Mode gives truly predictable performance while high tilt forces throughout the working range help you safely and confidently handle loads with precise control.
  • Visibility to bucket corners and fork tips at ground level remain excellent while sight lines at maximum lift are improved with a Generation II lift arm design.
Quick Loading, Performance Series Buckets
Performance Series Buckets deliver up to 10% higher fill factors and better material retention for significant productivity and fuel efficiency improvements. The buckets feature a longer floor to take a bigger bite of the pile, an open throat to heap higher and curved side bars to help with material retention. This optimized shape is echoed across the General Purpose, Light Material, and High Dump bucket families.
Smooth and Predictable Multi-Function Performance
M Series machines feature an electro-hydraulic control system that is governed by the Intelligent Power Management system for peak efficiency. The load-sensing, variable flow system senses work demand and adjusts flow and pressure to match the operators request.
  • Multi-Function without compromise through Caterpillar's exclusive dedicated hydraulic systems featuring three pumps:
    • 1st pump for Intelligent Hydrostatic drive
    • 2nd pump for implements
    • 3rd pump for steering system
Drive, Lift and Steer simultaneously with smooth predictable control. The M Series simply does what you ask it to.
  • Programmable in-cab kick-outs are easy to set on the go for tilt, lower and lift. This feature is ideal for applications where the work cycle is repeatable allowing you to quickly return to programed set points such as ground and level.
  • Fine tune hydro-mechanical performance with fully adjustable 3rd function flow through the touch screen display (when equipped) for a perfect marriage between machine and attachments.

Enjoy All Day Comfort

Have a Seat and Experience:
  • Seat-mounted controls featuring a low effort joystick for lift and tilt functions along with integrated Forward/Neutral/Reverse switch, differential lock trigger and optional third and fourth auxiliary functions.
  • Superior all around visibility with single piece front windshield, new parabolic external mirrors, redesigned Generation II linkage and clean hydraulic lines routing.
  • Automatic climate control with heated rear glass and external mirrors for a quick defrost.
  • Fully adjustable controls including steering column, joystick and seat suspension.
  • Information at a glance with large primary LCD display and optional full color touch screen display.
  • An extra eye on the job site with optional integrated rear object detection and optional* rearview camera.
  • A heated and cooled seat option for added comfort in a wide range of climates.
*Standard in Europe.
An easy day at work with:
  • A spacious, safe, quiet operator environment featuring ergonomic controls, seat belt notification and optional Bluetooth™ radio with integrated microphone plus an auxiliary port.
  • Easy access to vital machine parameters with the optional touch screen display that works in conjunction with the standard soft touch panel to allow real time adjustments to machine features and an integrated help button with over 25 languages.
  • Comfortable soft stops at cylinder end stroke conditions and programmable kickout points with Caterpillar's exclusive electro-hydraulic cylinder snubbing.
  • An even smoother ride with optional Ride Control when working unloaded and loaded with excellent material retention.
  • Early starts and late finishes are made easier with optional LED lighting package that includes engine compartment lighting to illuminate the way for checking oil, and coolant level along with refueling the machine in dark conditions.

Configured for Success

The Way You Want It
A complete range of optional equipment and work tools gives you the versatility to configure a Waste Handler to be successful in your business. Get with your Caterpillar dealer to configure yours.
Guards:
  • Windshield
  • Tilt cylinder
  • Lights
  • Fender deflectors
  • Drive shaft
  • Hitch
  • Steering cylinders
  • Side power train
  • Lower power train
  • Crank case
  • Rear radiator
Debris Packages:
  • Reversing fan
  • Sealed alternator
  • Turbine precleaner
  • RESPA precleaner
Work Tools:
  • Full range of tools
Operator Environment:
  • Seat, deluxe or premium
  • Deluxe cab (with touch screen display)
Other Options:
  • Autolube
  • High lift linkage
  • Coupler: Fusion™ and ISO 23727
  • Auxiliary hydraulics: 3rd and 4th
  • Window washing access
  • Ride control
  • Fenders: extended and full coverage
  • Counterweights
  • Cold start package
  • Rear object detection
  • Blue Angel certification
  • Beacon
  • LED auxiliary lights
  • CPM – Cat Production Measurement
  • TPM – Tire Pressure Monitoring

Serviceability

Get up and running quickly with ground level, daily service access and optional engine compartment lighting. Three large service doors can be opened and closed in any order to give full access to filters and service points. Extended service intervals on hydraulic and power train filters reduce service time and maximize uptime. Additional service features include:
  • Product Link™ PRO standard with a trial subscription to VisionLink®.
  • Maintenance reminders through touch screen display at scheduled intervals.
  • Fit for Life Diesel Particulate Filter that is designed to exceed the engine overhaul life.
  • Quick fuel filter service with Caterpillar's exclusive electric fuel priming pump.
  • Jump start studs as standard equipment.
  • Extended cleanouts with single plane cooling system and wide spaced six fins per inch coolers as standard.
  • Integrated Autolube (optional) with adjustable greasing frequency.

Customer Support

Renowned Cat Dealer Support
Rely on your Cat dealer to help you every step of the way with new or used machine sales, rental or rebuild options to meet your business needs.
Maximize your machine uptime with unsurpassed worldwide parts availability, trained technicians and customer support agreements.
Let us earn your business. Experience an M Series Small Wheel Loader and join the Caterpillar family.
