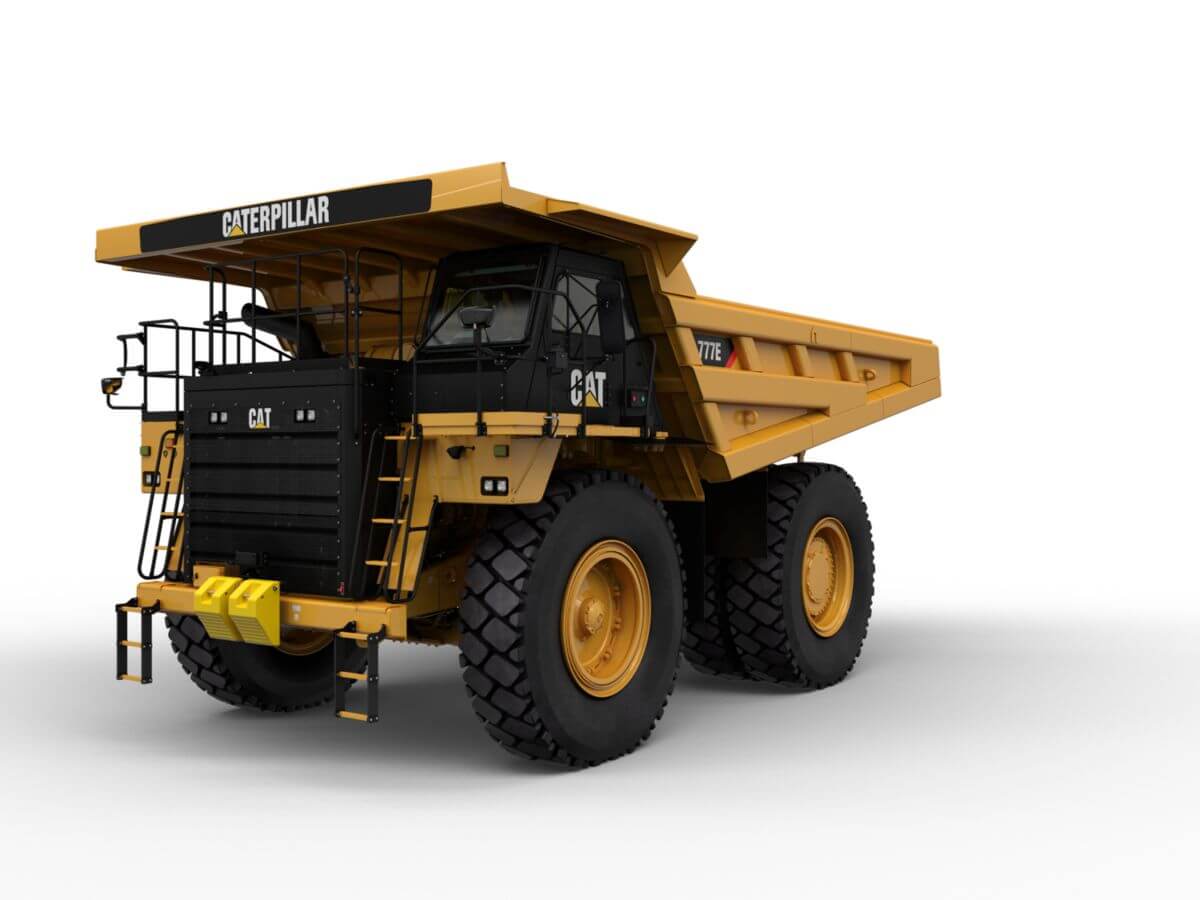

Cat 777E Off-Highway Truck

About the Cat 777E Off-Highway Truck

This product has expired.

Specifications

Engine

Bore	5.7 in
Stroke	6.4 in
Displacement	1959 in³
Engine Power - ISO 14396	1004 HP
Engine Speed	1750 r/min
Gross Power - SAE J1995	1016 HP
Net Power - SAE J1349	949 HP
Net Torque - 1,300 rpm	3509 lb/ft

Operating Specifications

Nominal Payload Class (100%)	102 ton (US)
Top Speed - Loaded	40.9 mile/h
Maximum Payload Class (110%)	108.2 ton (US)

Transmission

Forward - 1	6.6 mile/h
Forward - 3	12.2 mile/h
Forward - 5	22.5 mile/h
Forward - 7	40.9 mile/h
Reverse - 1	7.5 mile/h

Brakes

Brake Surface Area - Front Caliper	432 in²
Brake Surface Area - Front OCDB	6331 in²
Brake Surface Area - Rear	15828 in²

Body Hoists

Body Raise Time - High Idle	15 s
Pump Flow - High Idle	130 gal/min

Capacity - Dual Slope - 100% Fill Factor

Heaped 2:1 (SAE)	78.6 yd³
Struck	55 yd³

Suspension

Effective Cylinder Stroke - Front	12.5 in
Effective Cylinder Stroke - Rear	6.5 in

Service Refill Capacities

Fuel Tank	300 gal (US)
Cooling System	56 gal (US)
Crankcase	29.9 gal (US)
Differentials	58.6 gal (US)
Final Drive - Each	11 gal (US)
Steering System - Includes Tank	15.6 gal (US)
Torque Converter - Brake - Hoist Hydraulic Tank	101.7 gal (US)
Transmission System	32.2 gal (US)

Steering

Turning Diameter - Front	83 ft
Turning Circle - Clearance Diameter	93.17 ft

Capacity - X Body - 100% Fill Factor

Heaped 2:1 (SAE)	83.8 yd³
Struck	56.3 yd³

Dimensions (Approximate) - Dual Slope

Centerline Front Tire Width	13.66 ft
Centerline of Rear Dual Tire Width	11.73 ft
Dump Clearance	2.91 ft
Engine Guard Clearance	2.83 ft
Front Canopy Height - Loaded	17 ft
Ground Clearance	2.93 ft
Height - Top of ROPS - Loaded	15.51 ft
Inside Body Depth - Maximum	6.21 ft
Inside Body Length	21.54 ft
Inside Body Width	17.06 ft
Loading Height - Empty	14.37 ft
Operating Width	20 ft
Operating Width - Extended Catwalk	21.47 ft
Outside Body Width	18.12 ft
Overall Body Length	31.35 ft
Overall Canopy Width	19.87 ft
Overall Front Tire Width	16.28 ft
Overall Height - Body Raised	33 ft
Overall Length	32.82 ft
Overall Tire Width	17.26 ft
Rear Axle - Clearance	2.95 ft
Rear Axle - Tail	10 ft
Wheel Base	15 ft

Dimensions (Approximate) - X Body

Centerline Front Tire Width	13.66 ft
Centerline of Rear Dual Tire Width	11.73 ft
Dump Clearance	2.68 ft
Engine Guard Clearance	2.83 ft
Front Canopy Height - Loaded	17.62 ft
Ground Clearance	2.93 ft
Height - Top of ROPS - Loaded	15.51 ft
Inside Body Depth - Maximum	5.83 ft
Inside Body Length	23.81 ft
Inside Body Width	17.88 ft
Loading Height - Empty	14.53 ft
Operating Width	20 ft
Operating Width - Extended Catwalk	21.47 ft
Outside Body Width	18.66 ft
Overall Body Length	33 ft
Overall Canopy Width	20.34 ft
Overall Front Tire Width	16.28 ft
Overall Height - Body Raised	34.12 ft
Overall Length	33.56 ft
Overall Tire Width	17.26 ft
Rear Axle - Clearance	2.95 ft
Rear Axle - Tail	10.7 ft
Wheel Base	15 ft

Weights - Dual Slope - With Liner

Body System Weight	35428 lb
Empty Operating Weight	155983 lb
Target Gross Machine Weight	360147 lb
Target Payload	204164 lb

Weights - Dual Slope - Without Liner

Body System Weight	35428 lb
Empty Operating Weight	143648 lb
Target Gross Machine Weight	360147 lb
Target Payload	216499 lb

Weights - X Body - With Liner

Body System Weight	35053 lb
Empty Operating Weight	153604 lb
Target Gross Machine Weight	360147 lb
Target Payload	206543 lb

Weights - X Body - Without Liner

Body System Weight	35053 lb
Empty Operating Weight	143274 lb
Target Gross Machine Weight	360147 lb
Target Payload	216873 lb

Features

Power Train

The updated Cat® C32 ACERT™ engine and powerful torque converter with ECPC (Electronic Clutch Pressure Control) Transmission provides superior performance. The ECPC Transmission with controlled throttle shifting regulates engine speed, torque converter lock-up and transmission clutch engagement for smoother shifts, reduced clutch wear and longer component life.

Fuel Economy

The 777E fuel saving strategies find opportunities to reduce fuel burn and fuel costs. 1) Economy Mode modifies engine maps to take advantage of steady grades and level ground, reducing power and fuel burn. 2) Speed Limiting automatically selects the most fuel efficient gear and speed for the terrain instantaneously. 3) Engine Idle Shutdown identifies when the truck is in park and idles for more than a preset time, and initiates engine shutdown to conserve fuel.

Engine Over Speed Protection

Electronically senses engine conditions and automatically up-shifts one gear to prevent over speeding. If over speeding occurs in the top gear, the lock-up clutch is disengaged, and the brakes are applied.

Operator Comfort

The all new operator station interior is ergonomically designed for total machine control in a comfortable, productive and safe environment. All controls, levers, switches and gauges are positioned to maximize productivity and minimize operator fatigue. Designed for excellent all-around visibility and clear sight lines to the haul road, the large viewing area offers exceptional visibility. The well positioned hand rails ensure three point contact for safe and easy access and emergency egress for the operator.

Diagnostic Capability

Critical power train data, including transmission shifting, engine speed and fuel consumption, provides service technicians with enhanced diagnostic capability to reduce downtime and operating costs.

Electronic Technician (ET)

Cat ET service tool provides service technicians with easy access to stored diagnostic data through the Cat Data Link.

Cab and Access

The 777E cab interior, is completely redesigned to provide better visibility and comfort for the operator. Features include a new dash, advisor display and redesigned center console. Rollover and Falling Object Protection is an extension of the truck frame.

Operator Seat

The Cat Comfort Seat uses full air suspension to smooth rough rides, and has a retractable four-point seat belt with a shoulder harness. A Trainer seat with a lap belt to facilitate on-the-job training.

Brakes

The Cat Front dry caliper with rear oil-cooled multiple disc brakes deliver reliable performance and control in the most extreme haul-road conditions. Wet brakes on rear wheels and gear limiting during body up operations are both standard. If equipped with front oil cooled multiple disc brakes, four corner retarding with a 40/60 percent front/rear split provides superior control in slippery conditions and minimizes wheel lock-up.

Automatic Retarder Control (ARC) (optional)

ARC controls braking on grade electronically, maintaining consistent engine speed, lower fuel burn, and better control.

Traction Control System (TCS) (optional)

The Traction Control System electronically monitors and controls rear wheel slippage for greater traction and enhanced truck performance in poor underfoot conditions. If slippage exceeds a set limit, the rear wet brakes engage to slow the spinning wheel. Torque is then automatically transferred to the wheel with better traction and optimum control.

Steering

Cat integrated steering and suspension system is designed for precise steering, excellent maneuverability, minimal tire wear and superior ride control.

Secondary Steering

Automatically engages if power source for the normal steering fails.

Durability

Rear wheel spindles are solid steel for longer life, and the rear suspension cylinders have been inverted to minimize contamination. These rugged cylinders use large diameter bore and low pressure nitrogen/oil design for long life with minimal maintenance.
