Cat 725C2 Bare Chassis Articulated Truck

Articulated Truck Bare Chassis

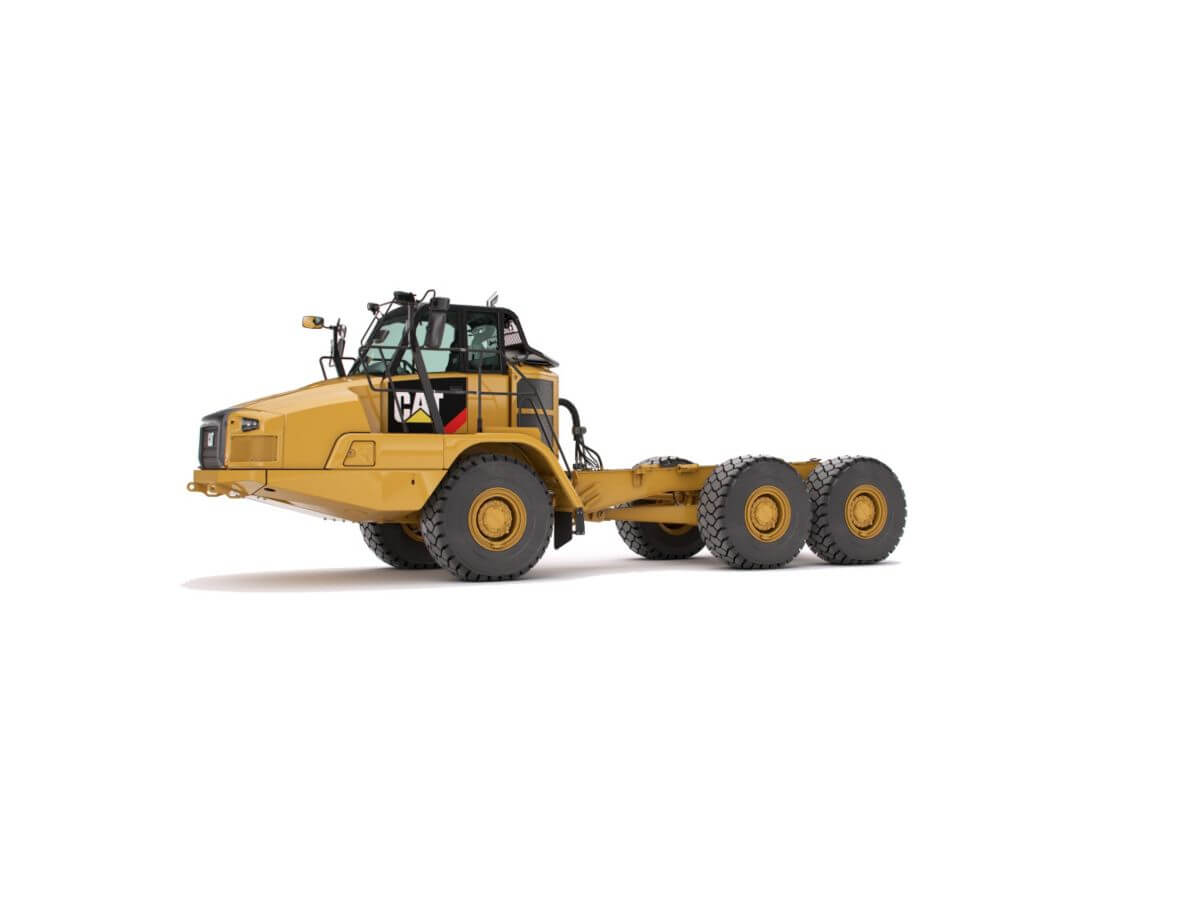

About the Cat 725C2 Bare Chassis Articulated Truck

This product has expired. The 725C2 Bare Chassis is a strong, durable Cat C9.3 ACERT engine platform with U.S. EPA Tier 4 Final/EU Stage IV engine emission solution. Advanced Productivity Electronics Control Strategy (APECS) delivers a smooth shifting transmission, improving acceleration with higher productivity.

Specifications

Wheel Base Length

Standard Wheel Base	156.7 in
Long Wheel Base	215.2 in

Engine

Gross Power - SAE J1995	320 HP
Net Power - SAE J1349	314 HP
Bore	5.1 in
Stroke	6.2 in
Displacement	762.8 in³
Net Power - ISO 14396	316 HP
No Engine De-rating Required Below	7500 ft
Peak Engine Torque Gross (SAE J1995)	1275 lb/ft
Peak Engine Torque Net (ISO 14396)	1262 lb/ft
Peak Engine Torque Speed	1200 r/min

Weights

Rated Payload

26 t

Transmission

Forward - 1	5 mile/h
Forward - 2	9 mile/h
Forward - 3	14 mile/h
Forward - 4	21 mile/h
Forward - 5	29 mile/h
Forward - 6	36 mile/h
Reverse - 1	6 mile/h

Sound Levels

Interior Cab

76 dB(A)

Service Refill Capacities

Fuel Tank	108.8 gal (US)
Cooling System	21.9 gal (US)
Hydraulic System	29.1 gal (US)
Engine Crankcase	10 gal (US)
Transmission	12.4 gal (US)
Final Drives/Differential	33 gal (US)
Output Transfer Gear Box	6.3 gal (US)
DEF Tank (ISO 2224-1)	5.2 gal (US)

Turning Circle

Turning Dimensions - Aisle Width	210 in
Turning Dimensions - Clearance Radius	318 in
Turning Dimensions - Inside Radius	153 in
Turning Dimensions - SAE Turning Radius	294 in
Turning Dimensions - Steer Angle - Left/Right	45 °

Features

Long Wheel Base

The 725C2 can be ordered with or without hoist cylinders, and in standard wheel base (SWB) or long wheel base (LWB) configurations through your local Cat dealer on the standard Articulated Truck price list.

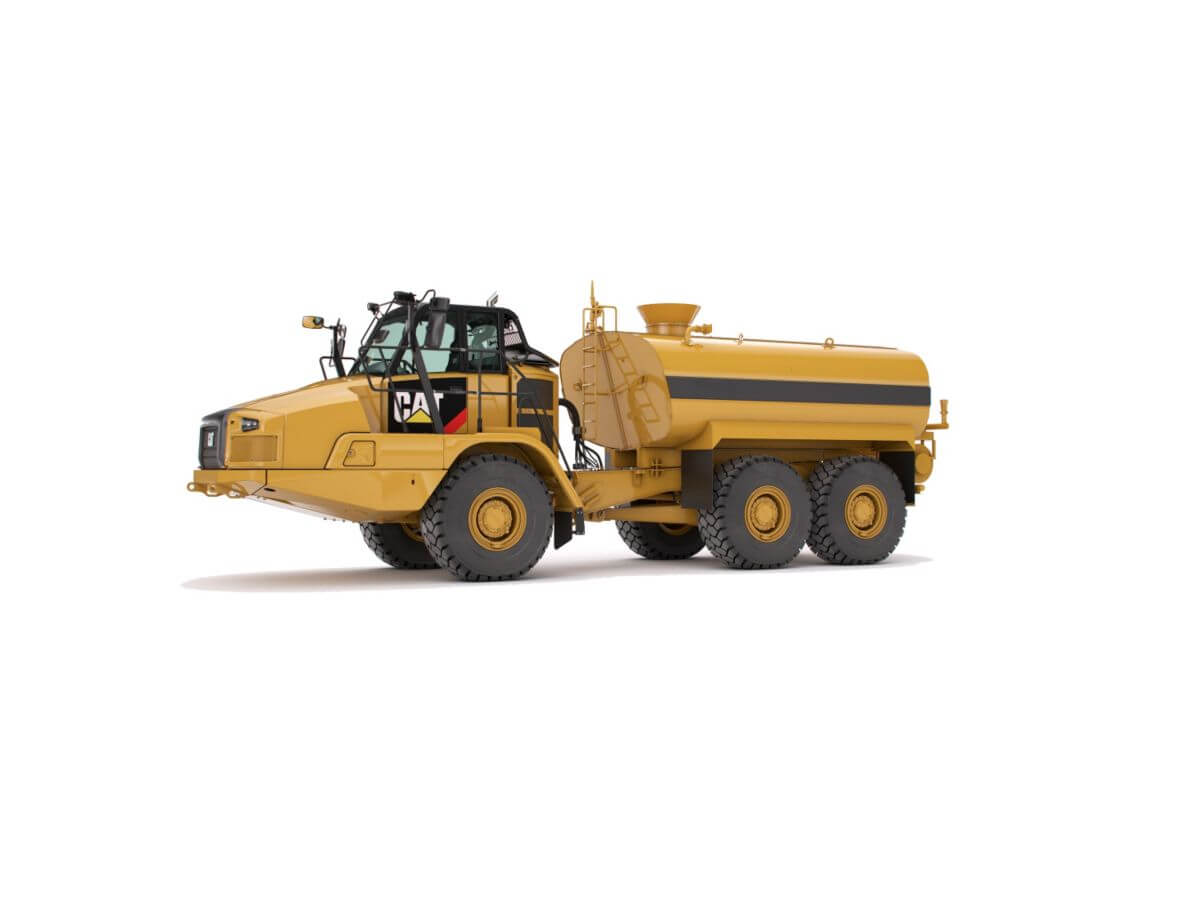

Water Truck Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for water truck applications in both mining and construction projects. Using an articulated truck bare chassis provides a flexible solution that is ideal for dust suppression, road construction, fire protection, and other applications. Caterpillar works with OEMs worldwide to match various size water tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

Service Truck Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for service truck applications in both mining and construction projects. Using an articulated truck bare chassis provides a flexible solution that is ideal for delivering fuel and preventive maintenance lubrication to your site's machine fleet. Caterpillar works with OEMs worldwide to match various size service tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

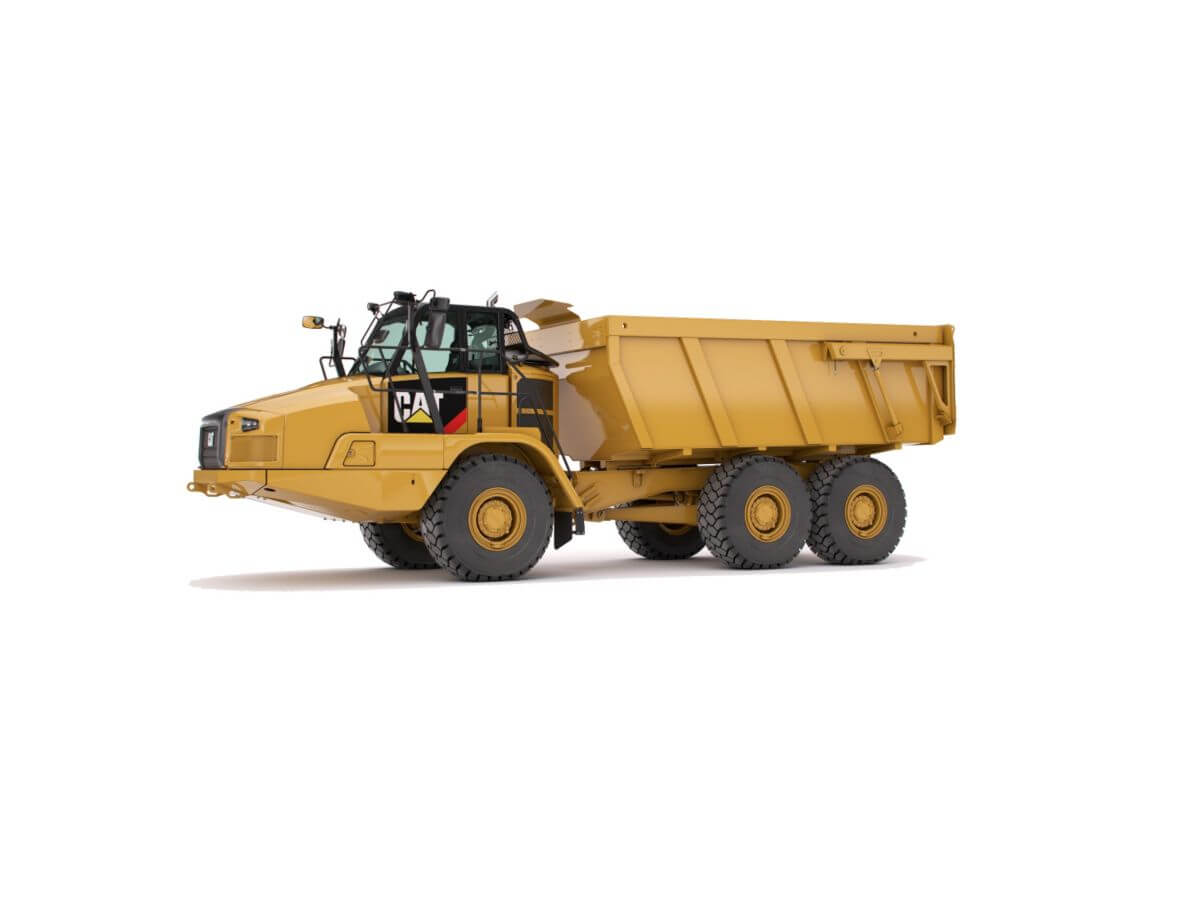

Specialty Body Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for specialty body applications. Using an articulated truck bare chassis provides a flexible solution that is ideal for hauling coal or waste, container trucks or hooklifts, cable reel trucks, and other applications. Caterpillar works with OEMs worldwide to match various size specialty bodies with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

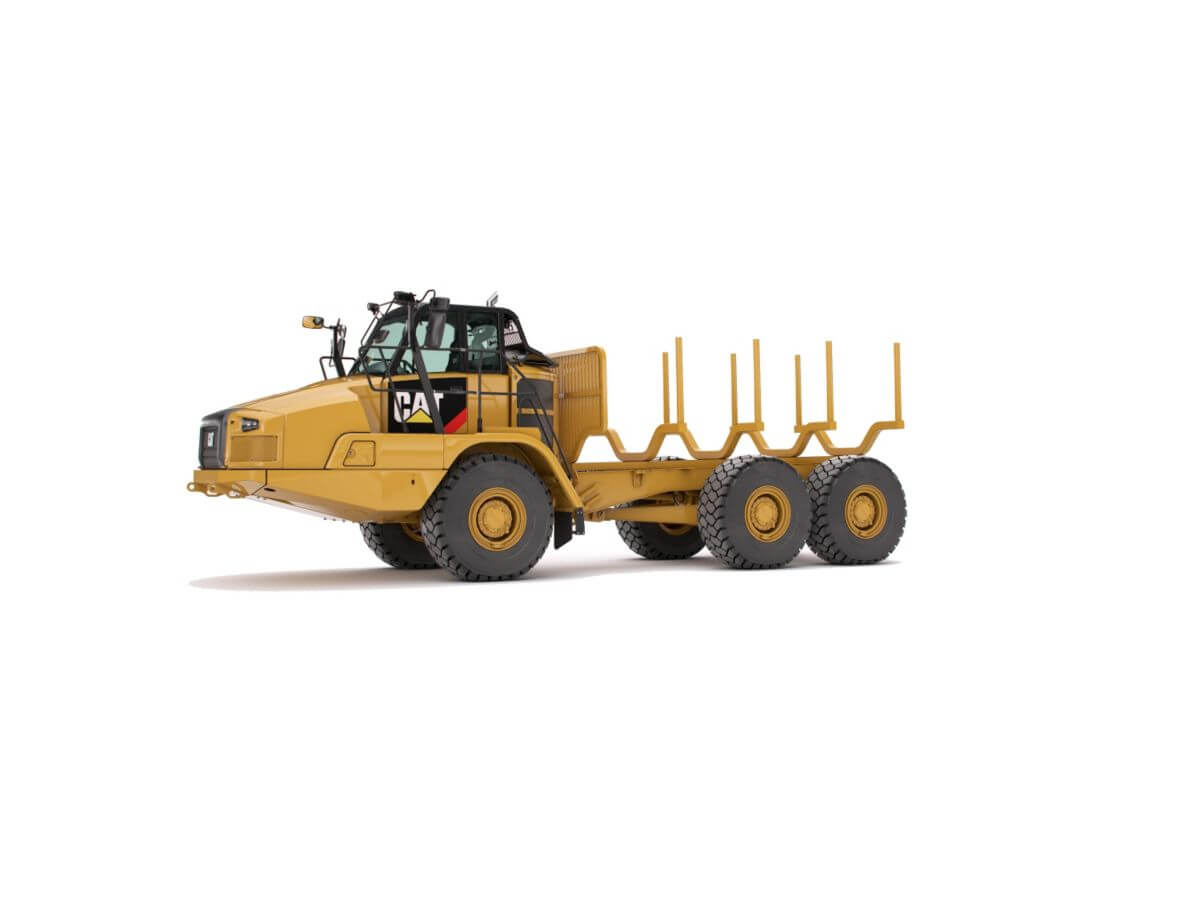

Forestry Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for forestry applications. Using an articulated truck bare chassis provides a flexible solution that is ideal for hauling logs and other applications. Caterpillar works with OEMs worldwide to match various size specialty bodies with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.
