Cat 305E2 CR

Mini excavators

305.5E2 CR hydraulische minigraafmachine met zwenkgiek

About the Cat 305E2 CR

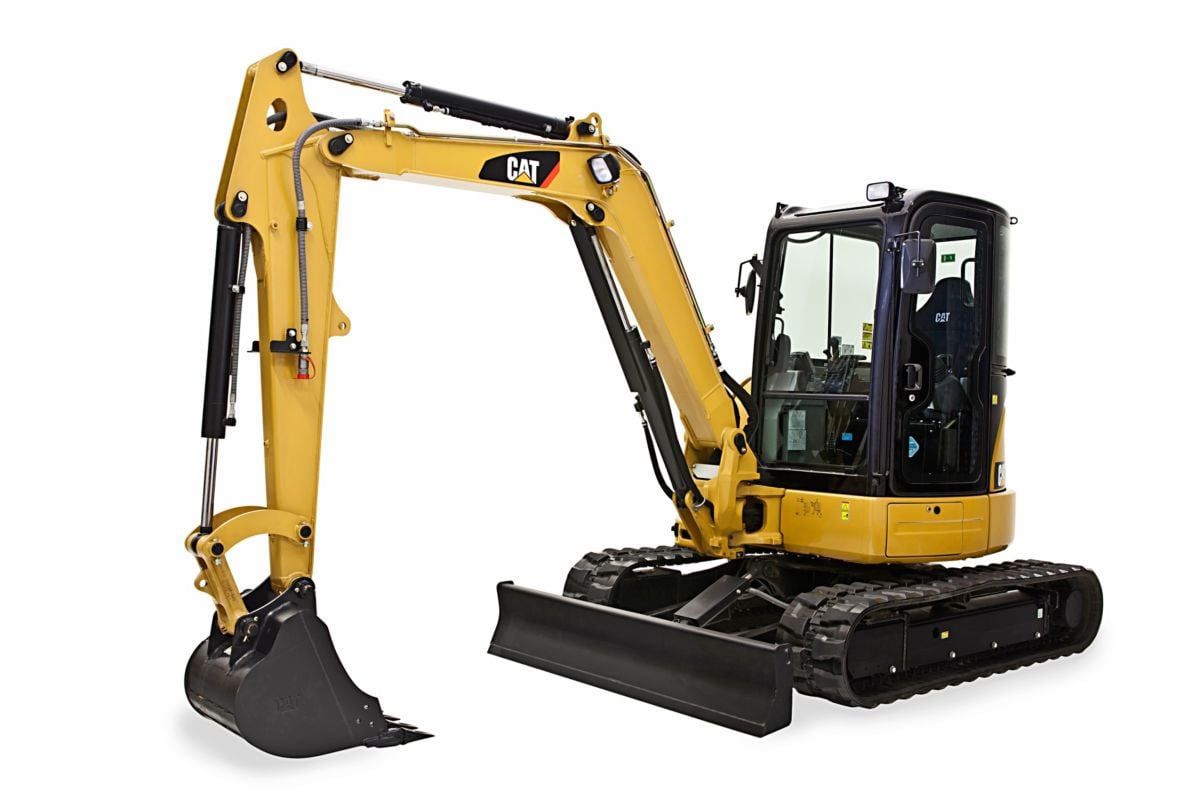

The Cat® 305E2 CR Mini Hydraulic Excavator delivers high performance, durability and versatility in a compact design to help you work in a variety of applications.

Specifications

Engine

Net Power	40.2 HP
Engine Model	Cat C2.4
Net Power - 2,200 rpm - ISO 9249/EEC 80/1269	40.2 HP
Note	The Cat C2.4 meets U.S. EPA Tier 4 Final emission standards for North America, EU Stage V emission standards for Europe and Tier 4 Interim emission standards for all other regions.
Displacement	146 in³
Stroke	4 in
Bore	3.4 in
Gross Power - ISO 14396	41.8 HP

Weights*

Operating Weight	11443 lb
Weight - Canopy, Standard Stick	10970 lb
Weight - Cab, Long Stick	11443 lb
Weight - Canopy, Long Stick	11069 lb
Weight - Cab, Standard Stick	11334 lb

Travel System

Maximum Traction Force - Low Speed	10161 lb
Maximum Traction Force - High Speed	5418 lb
Travel Speed - High	2.7 mile/h
Travel Speed - Low	1.7 mile/h
Ground Pressure - Cab	4.4 psi
Ground Pressure - Canopy	4.3 psi

Hydraulic System

Digging Force - Stick - Standard	5550 lb
Operating Pressure - Equipment	3553 psi
Operating Pressure - Swing	3132 psi
Operating Pressure - Travel	3553 psi
Note	Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
Pump Flow at 2,400 rpm	39.6 gal/min
Digging Force - Stick - Long	4788 lb
Maximum Auxiliary Circuit - Secondary - Flow at Pump	6.6 gal/min
Maximum Auxiliary Circuit - Primary - Flow at Pump	21.1 gal/min
Maximum Auxiliary Circuit - Secondary - Pressure at Pump	3553 psi
Maximum Auxiliary Circuit - Primary - Pressure at Pump	3553 psi
Digging Force - Bucket	10050 lb

Swing System

Machine Swing Speed

10 r/min

Blade

Width	78 in
Height	14.8 in
Dig Depth	21.9 in
Lift Height	15.9 in

Service Refill Capacities

Cooling System	2.8 gal (US)
Engine Oil	2.5 gal (US)
Hydraulic Tank	18 gal (US)
Fuel Tank	16.6 gal (US)
Hydraulic System	20.6 gal (US)

Dimensions - Long Stick

Dig Depth	144 in
Boom Height - Shipping Position	85 in
Maximum Dump Clearance	154 in
Tail Swing	43 in
Maximum Reach - Ground Level	229 in
O/A Shipping Length	208 in
O/A Track Width	78 in
Boom Swing - Left	27 in
Maximum Reach	235 in
Maximum Blade Height	16 in
Swing Bearing - Height	24 in
O/A Undercarriage Length	102 in
O/A Shipping Height	100 in
Maximum Blade Depth	22 in
Track Belt/Shoe Width	16 in
Vertical Wall	104 in
Maximum Dig Height	214 in
Boom Swing - Right	31 in
Boom In Reach	100 in

Operating Specifications

Stick Length - Long	67 in
Stick Length - Standard	52 in

Dimensions - Standard Stick

Tail Swing	43 in
Boom Swing - Left	27 in
Maximum Blade Depth	22 in
Boom Swing - Right	31 in
O/A Track Width	78 in
Maximum Blade Height	16 in
Track Belt/Shoe Width	16 in
O/A Undercarriage Length	102 in
Maximum Reach	220 in
O/A Shipping Length	204 in
Swing Bearing - Height	24 in
Dig Depth	129 in
Maximum Dump Clearance	129 in
Maximum Reach - Ground Level	210 in
Boom In Reach	93 in
O/A Shipping Height	100 in
Vertical Wall	91 in
Boom Height - Shipping Position	69 in
Maximum Dig Height	207 in

Lift Capacities at Ground Level - Lift Point Radius: 4000 mm (13'1”)

Blade Down - Side	1411 lb
Blade Down - Front	2778 lb
Blade Up - Side	1257 lb
Blade Up - Front	1676 lb

Lift Capacities at Ground Level - Lift Point Radius: 3000 mm (9'8”)

Blade Up - Side	2359 in
Blade Down - Side	2646 in
Blade Down - Front	5159 lb
Blade Up - Front	3197 lb

Cab

Exterior Sound Power Level - ISO 6395:2008*	96 dB(A)
Dynamic Operator Sound Pressure Level (ISO 6396:2008)	81 dB(A)

Features

QUALITY

The durable hoods and frame and the compact radius design of the 305E2 let you work comfortably and confidently in confined areas. The operator environment includes a high quality suspension seat, easy to adjust armrests and 100% pilot controls which offer consistent and long-lasting controllability.

EFFICIENCY

High Definition Hydraulic System provides a load sensing and flow sharing capability leading to operational precision, efficient performance and greater controllability. Power on Demand provides optimal efficiency and performance the moment you need it. This automatic system ensures fuel efficiency through appropriate engine rating to meet all operational needs as required.

VERSATILITY

Broad range of Cat Work Tools make the Cat Mini Excavator a versatile machine able to meet the requirements of any job site. Over 200 degrees of bucket rotation provides greater material retention during truck loading and easier flat wall digging without having to reposition the machine.

PERFORMANCE

Front shovel bucket orientation provides the operator with more ways to get the job done faster. COMPASS Control Panel is a standard feature that allows the operator to easily adjust auxiliary flows to achieve the optimal work tool performance, activate auto idle for improved fuel efficiency and utilize the security system to ensure protection of valuable assets with the simple touch of a button. The Site Reference System included in the COMPASS monitor provides output from pitch and roll sensors to aid in grading and level trenching. This impacts accuracy and productivity for job site finishing.

SERVICEABILITY

Convenient service and maintenance requirements include ease of access to daily check points, 500 hour engine oil and filter change period, 50 hour grease interval on front implement, S·O·S^SM oil sampling valve and overall long term durability.

SAFETY

All Cat Mini Excavators from 3.5 metric tons to 10 metric tons are ROPS, TOPS and Top Guard Level 1 certified and include the Cat Interlock (hydraulic lockout) System, a certified accumulator which allows for auxiliary pressure to be released, making connecting and disconnecting work tools safer and easier, and a travel alarm. All of these safety features are standard on the E2 model lineup (travel alarm optional in Europe).
