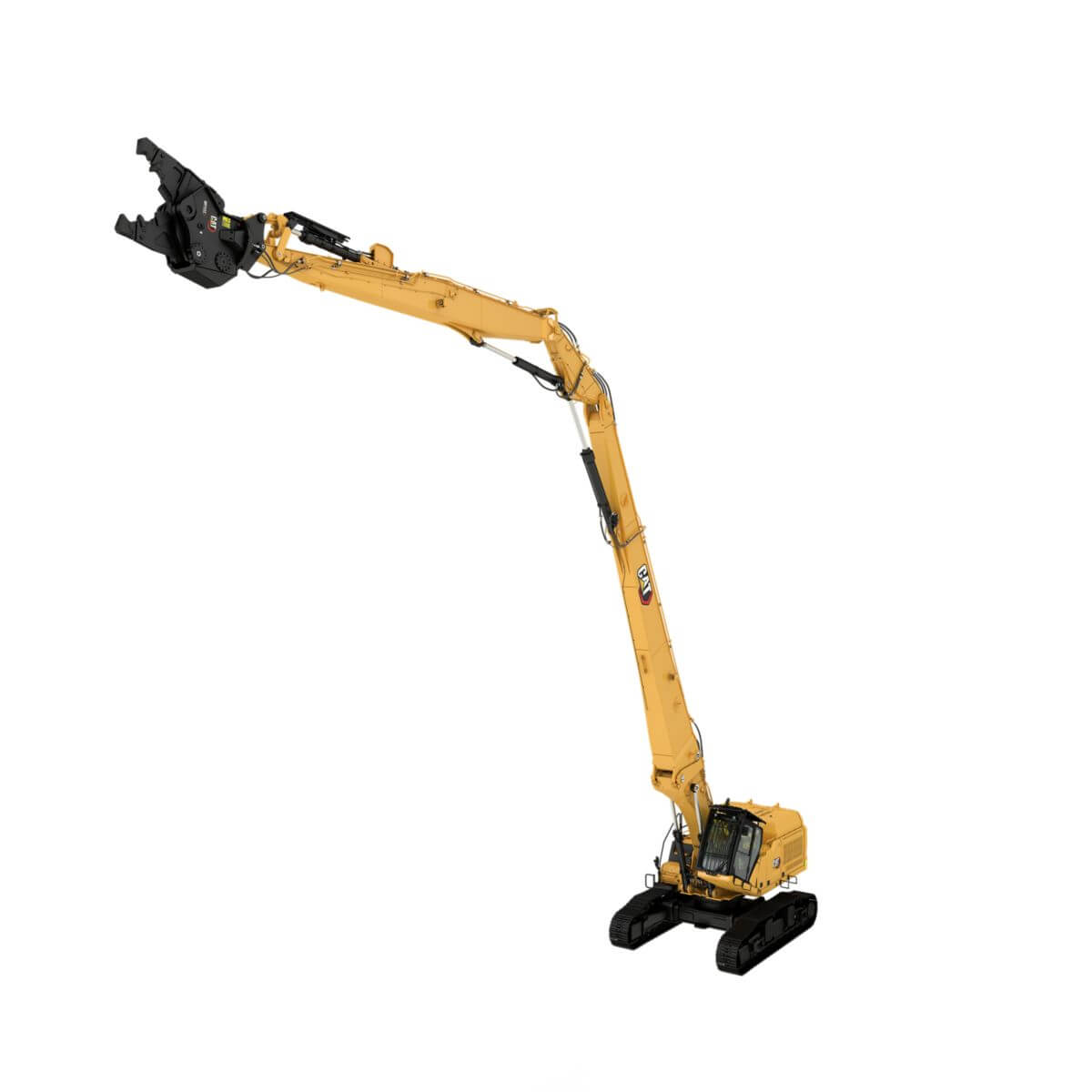

352 UHD Ultra High Demolition Hydraulic Excavator

Kantelbare cabine biedt comfort en productiviteit

Cat 352 UHD werkt tot 9 verdiepingen hoog

352 UHD met een Retrofit-giek kan de UHD in houder heffen voor transport

Ultra High Demolition hydraulische sloopgraafmachine 352 UHD

About the Cat 352 UHD

The Cat® 352 UHD reaches where other machines cannot and provides best-in-class work tool capability. You can tear down structures all day with speed and precision – you simply won’t find a better 60-ton class choice for demolition.

Specifications

Engine

Engine Model

Cat C13

Hydraulic System

Main System - Maximum Flow

779 l/min (206 gal/min)

Weights

Note (1)	Operating Weight includes Cat MP332 Multiprocessor with Demolition Jaws
Note (2)	UHD Front and Counterweight, No Work Tool
Note (3)	Retrofit boom and R3.35 M TB Stick (11') and 2.41 M3 (3.15 yd3)HD bucket

Dimensions

Note (1)	UHD Front
Note (2)	600 mm (24") Track Shoe

Working Ranges and Forces

Note (1)

28 m (91' 10") UHD Front Over-the-Front

Working Ranges and Forces - Retrofit Boom - Straight

Note 1	Straight - R3.35 m Stick (11'0") Over-the-Front
Bucket	3.08 M3 (4.08 yd3) General Duty

Working Ranges and Forces - Retrofit Boom - Bent

Note 1	Bent - R3.35 m TB Stick (11'0") Over-the-Front
Bucket	3.08 M3 (4.08 yd3) General Duty

Features

PERFORMANCE

UHD front parts can reach up to 28 m (90 ft) of vertical pin height, working with a 3.7 ton (8,157 lbs) tool with 15.8 m (51 ft) horizontal reach.
Cat active stability monitoring system continuously informs operators of work tool position within the safe working range and warns when approaching the stability limit.
Hydraulically actuated variable gauge undercarriage provides outstanding stability extended to 4000 mm (13 ft) and retracted to
3000 mm (10 ft). Transportation of the machine is simple.
Standard rearview and right-hand sideview cameras give clear views on the monitor.
The C13 engine can run on biodiesel up to B20 and meets
EU Stage V, U.S. EPA Tier 4 Final, and Japan 2014 emission standards.
Match the excavator to the job with three power modes – Power, Smart, and ECO. Smart mode automatically matches engine and hydraulic power to working requirements, providing maximum power when needed and reducing power when it isn’t to help save fuel.
The new high-efficiency hydraulic reversing fan cools the engine on demand to help reduce fuel consumption.
Cat technologies increase operating efficiency to lower operator fatigue and your operating costs, including fuel consumption and daily maintenance.

OPERATOR COMFORT

Demolition cab with FOGS includes front and roof of P5A
10 mm (0.4”) laminated glass.
Tilt-up 30° for a more productive and comfortable sight line.
The windshield and roof one-piece parallel wipers with three intermittent settings includes washer spray.
Premium heated and cooled seat is standard.
Get in and out of the cab easier using the tip-up left console.
• Advanced viscous mounts reduce cab vibration up to 50% over previous excavator models.
Control the excavator comfortably with easy-to-reach controls, all located in front of you.
UHD front is worktool camera ready for easy dealer-available kit installation and includes water-spray-system-ready wiring and hoses.
Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles.
Use the standard radio’s USB ports and Bluetooth technology to connect personal devices and make hands-free calls.

SIMPLE OPERATION

Start the engine with a push button; use a Bluetooth key fob,or the unique Operator ID function.
Program each joystick button, including power mode, response, and pattern, using Operator ID; the machine will remember what you set each time you go to work.
Automatic hydraulic oil warmup gets you to work faster in cold temperatures and helps prolong the life of components.
Navigate quickly on the high-resolution 254 mm (10 in) touchscreen monitor or with the aid of the jog dial control.
Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.
Make moving the excavator much easier with Cat Stick Steer. Simply push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.
Need more lift during your shift? Turn on Auto Heavy Lift and get 8% more power exactly when you need it for as long as you need it.

EFFICIENCY AND PRODUCTIVITY WITH INTEGRATED CAT TECHNOLOGY

Know the excavator’s exact position relative to GPS and GLONASS systems. The machine automatically compensates for excavator pitch and roll caused by sloping ground conditions.
Standard Product Link™ provides location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data on demand through VisionLink online interface, helping you improve jobsite efficiency with lower operating costs.
Remote Troubleshoot connects you to a dealer service professional to help solve your problem and quickly get you to work.
Remote Flash works around your schedule to ensure your machine’s software is up to date for optimal performance.
The Cat App helps you manage fleet location, hours, and maintenance schedules; it also alerts you for required maintenance and even allows you to request service from your local Cat dealer.
The Cat attachment locator can help you find tools, track work time, and plan maintenance and replacement – all through your Cat App- equipped smartphone.

EFFICIËNTIE EN PRODUCTIVITEIT MET GEÏNTEGREERDE CAT TECHNOLOGIE

MAINTENANCE

Enjoy low maintenance cost due to extended service intervals.
Check hydraulic system oil and easily drain fuel system water and fuel tank water from ground level.
Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
Change all fuel filters at a synchronized 1,000 hours. Oil and fuel filters are grouped and located on the right-hand side of the machine for easy maintenance.
The engine air intake filter with precleaner has double the dust holding capacity of the previous air intake filter.
The hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and long life with a 3,000-hour replacement interval – 50% longer than previous filter designs.
S•O•S^SM ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.

SAFETY

The standard Stability Monitoring System provides operator- friendly interface with adjustable warning.
A travel direction indicator helps operators know which way to activate the travel levers.
Enjoy greater visibility in each swing direction with the help of smaller cab pillars and larger windows.
A ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
Rear and right-hand side cameras are standard.
Serrated steps and an anti-skid punch plate on the service platform help prevent slipping.
