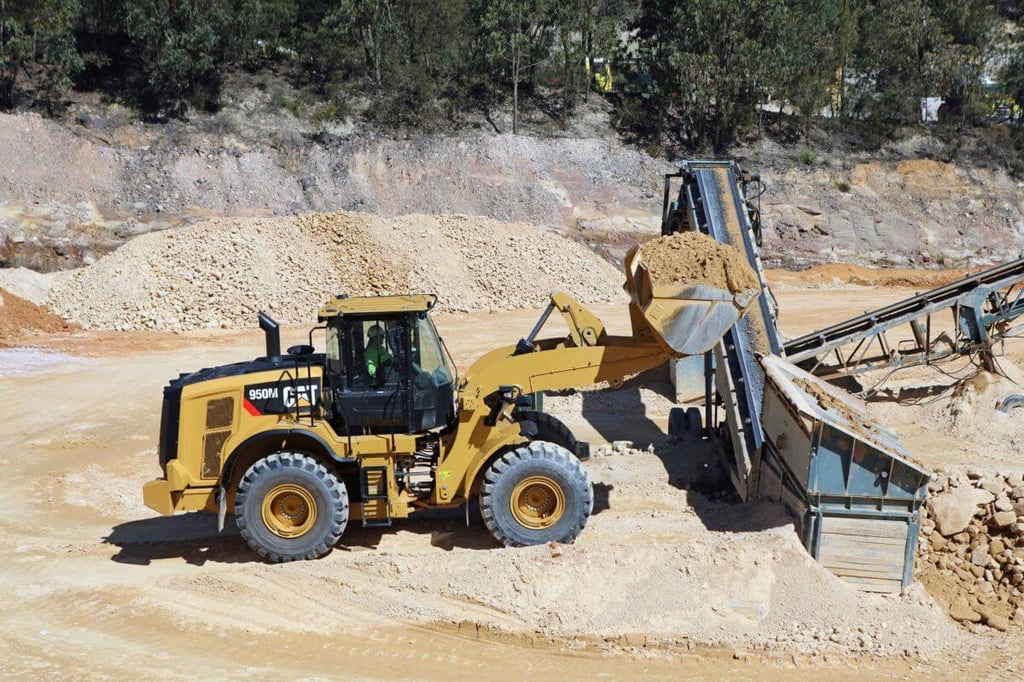

Middelgrote wiellader 950M die een transportband laadt

Middelgrote wiellader 950M die materiaal verplaatst

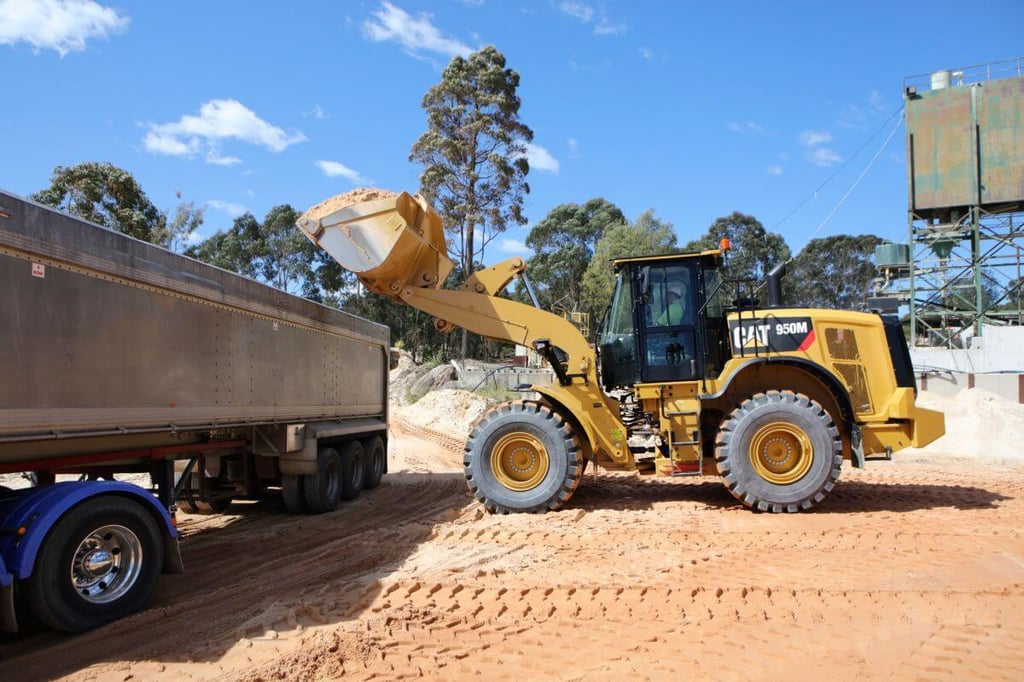

Middelgrote wiellader 950M die een vrachtwagen laadt

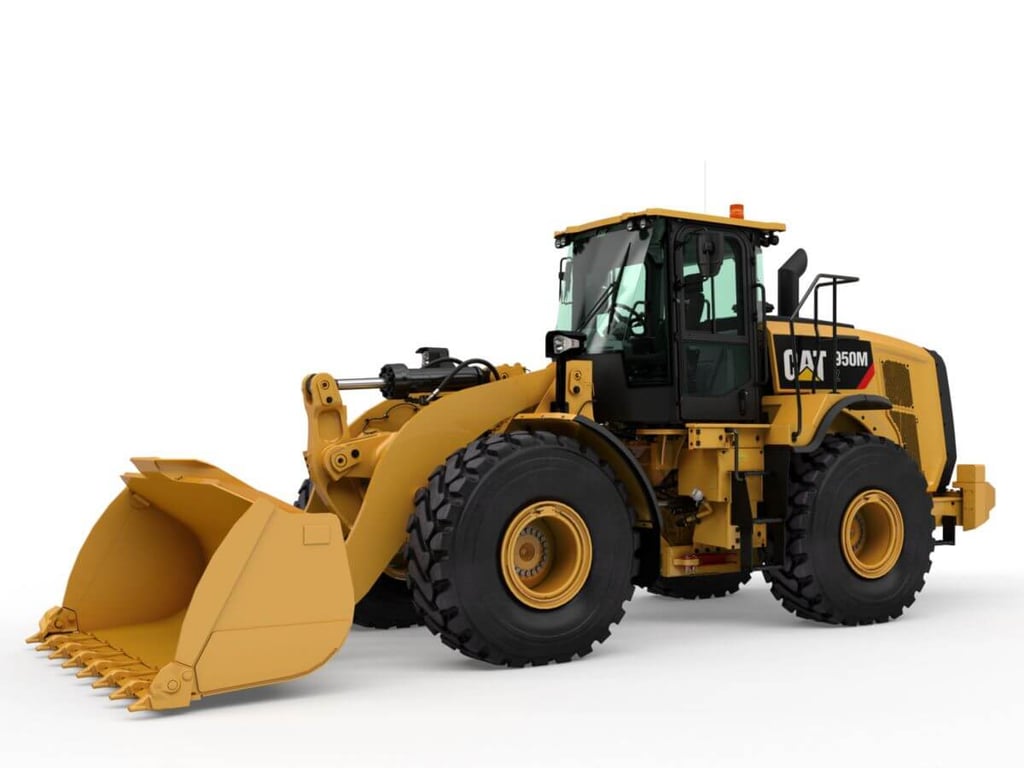

About the Cat 950M

The Cat® 950M Wheel Loader offers significant fuel savings while lowering long-term costs. This machine meets emission standards and is designed to improve fuel economy without interrupting performance. The reliability, durability, and versatility results in a machine that is better built to meet your needs.

Specifications

Engine

Emissions	Tier 4/Stage IV
Net Power - ISO 9249	230 HP
Maximum Power - 2,100 rpm - ISO 14396	249 HP
Peak Gross Torque - 1,300 rpm - SAE J1995	911 ft·lbf
Maximum Net Power - 2,100 rpm - ISO 9249 - Metric	232 HP
Maximum Power - 2,100 rpm - SAE J1995	250 HP
Note	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.
Maximum Net Power - 2,100 rpm - ISO 9249	230 HP
Peak Gross Torque - 1,300 rpm - ISO 14396	908 ft·lbf
Displacement	428 in³
Maximum Net Power - 2,100 rpm - SAE J1349	230 HP
Engine Model	Cat C7.1
Maximum Power - 2,100 rpm - ISO 14396 - Metric	253 HP
Maximum Net Torque - 1,300 rpm	858 ft·lbf

Engine - Tier 4 Final/Stage IV

Emissions

Tier 4/Stage IV

Weights

Operating Weight	42357 lb
Note	Weight based on a machine configuration with Michelin 23.5R25 XHA2 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link?, manual diff lock/open axles (front/rear), power train guard, secondary steering,

Buckets

Bucket Capacities

2.5-9.2 m³ (3.3-12.0 yd³)

Dimensions - Standard Lift

Height - Top of ROPS	11.33 ft
Centerline of Rear Axle to Edge of Counterweight	6.33 ft
Height - Top of Hood	8.83 ft
Note	All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.
Centerline of Rear Axle to Hitch	5.5 ft
Overall Length - Without Bucket	22.67 ft
Hinge Pin Height at Maximum Lift	13.25 ft
Rack Back - Carry Height	49 degrees
Rack Back - Maximum Lift	59 degrees
Height - Top of Exhaust Pipe	11.17 ft
Maximum Width - Over Tires - Loaded	9.25 ft
Lift Arm Clearance at Maximum Lift	10.75 ft
Ground Clearance	1.17 ft
Hinge Pin Height at Carry Height	2.08 ft
Wheel Base	11 ft
Tread Width	7 ft
Rack Back at Ground	36 degrees

Operating Specifications

Note (1)	For a machine configuration as defined under ?Weight.?
Static Tipping Load - Full 40° Turn - With Tire Deflection	24262 lb
Breakout Force	40690 lbf
Static Tipping Load - Full 40° Turn - No Tire Deflection	25926 lb
Note (2)	Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.

Hydraulic System

Implement Pump Type	Variable Axial Piston
Implement System - Maximum Pump Output at 2,150 rpm	76 gal/min
Implement System - Maximum Operating Pressure	4250 psi
Hydraulic Cycle Time - Total	8.9 s

Dimensions

Overall Length (without bucket)	272 in
Maximum Width over Tires (loaded)	111 in
Tread Width	84 in
Height - Top of ROPS	92 in
Height - Top of Hood	106 in
Height - Top of Exhaust Pipe	90 in
Hinge Pin Height at Carry Height	25 in
Hinge Pin Height at Maximum Lift	159 in
Ground Clearance	14 in
Centerline of Rear Axle to Edge of Counterweight	76 in
Centerline of Rear Axle to Hitch	66 in
Note	All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.
Wheel Base	132 in

Transmission

Forward - 2	7.5 mile/h
Forward - 1	4.3 mile/h
Forward - 5	24.5 mile/h
Note	Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 787 mm (31 in) roll radius.
Reverse - 3	16 mile/h
Forward - 4	16 mile/h
Forward - 3	12 mile/h
Reverse - 2	7.5 mile/h
Reverse - 1	4.3 mile/h

Service Refill Capacities

Fuel Tank	72.6 gal (US)
Differential - Final Drives - Front	11.4 gal (US)
Cooling System	15.6 gal (US)
Hydraulic Tank	33 gal (US)
Transmission	11.4 gal (US)
Differential - Final Drives - Rear	11.4 gal (US)
DEF Tank	4.2 gal (US)
Crankcase	5.8 gal (US)

Dimensions - High Lift

Height - Top of Hood	8.83 ft
Hinge Pin Height at Carry Height	2.58 ft
Height - Top of ROPS	11.33 ft
Lift Arm Clearance at Maximum Lift	11.92 ft
Centerline of Rear Axle to Hitch	5.5 ft
Hinge Pin Height at Maximum Lift	14.83 ft
Rack Back - Carry Height	49 degrees
Ground Clearance	1.17 ft
Centerline of Rear Axle to Edge of Counterweight	6.33 ft
Overall Length - Without Bucket	24.58 ft
Note	All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.
Maximum Width - Over Tires - Loaded	9.25 ft
Tread Width	7 ft
Rack Back at Ground	40 degrees
Rack Back - Maximum Lift	59 degrees
Wheel Base	11 ft
Height - Top of Exhaust Pipe	11.17 ft

Sound

Note (1)	*Distance of 15 m (49.2 ft), moving forward in second gear ratio.
With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)**	69 dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008)	107 dB(A)
Note (2)	**For machines in European Union countries and in countries that adopt the ?EU Directives.?
Note (3)	***European Union Directive ?2000/14/EC? as amended by ?2005/88/EC.?
With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)	70 dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013)	75 dB(A)*
With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)**	104 LWA***

Bucket Capacities

Bucket Range

2.5-9.2 m³ (3.3-12.0 yd³)

Features

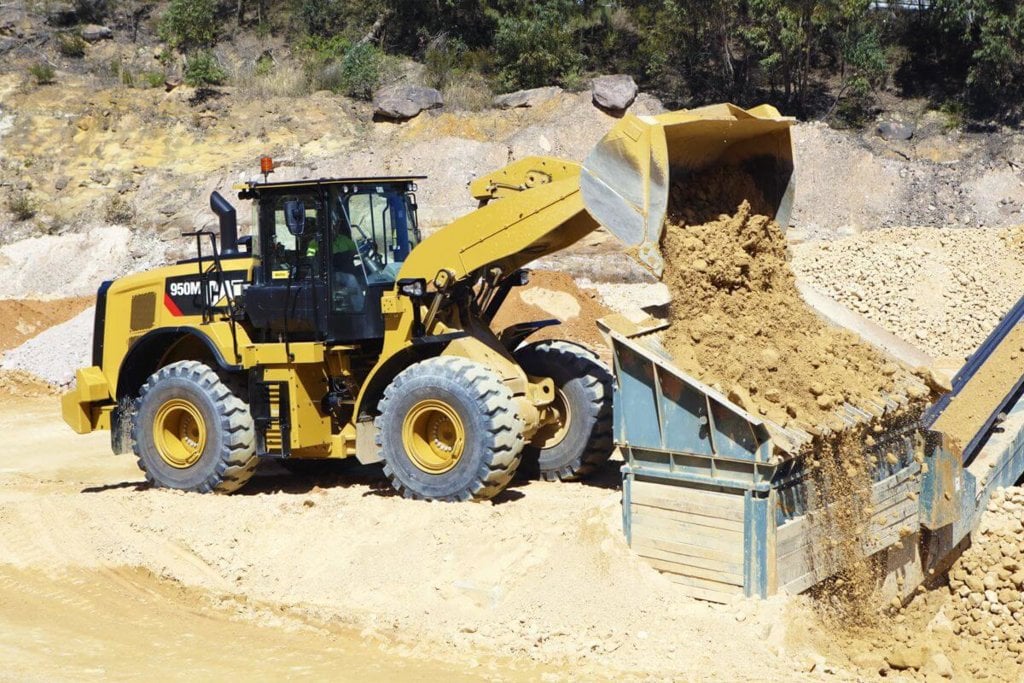

RELIABILITY YOU CAN COUNT ON

Cat C7.1 engine offers increased power density with a combination of proven electronic fuel and air systems.
Equipped with automatic Cat regeneration system, Cat clean emissions module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump (Tier 4 Final, Stage IV, and Stage V only).
Features an electric fuel priming pump and a fuel/water separator.
Thorough component design and machine validation processes result in unmatched reliability and uptime.

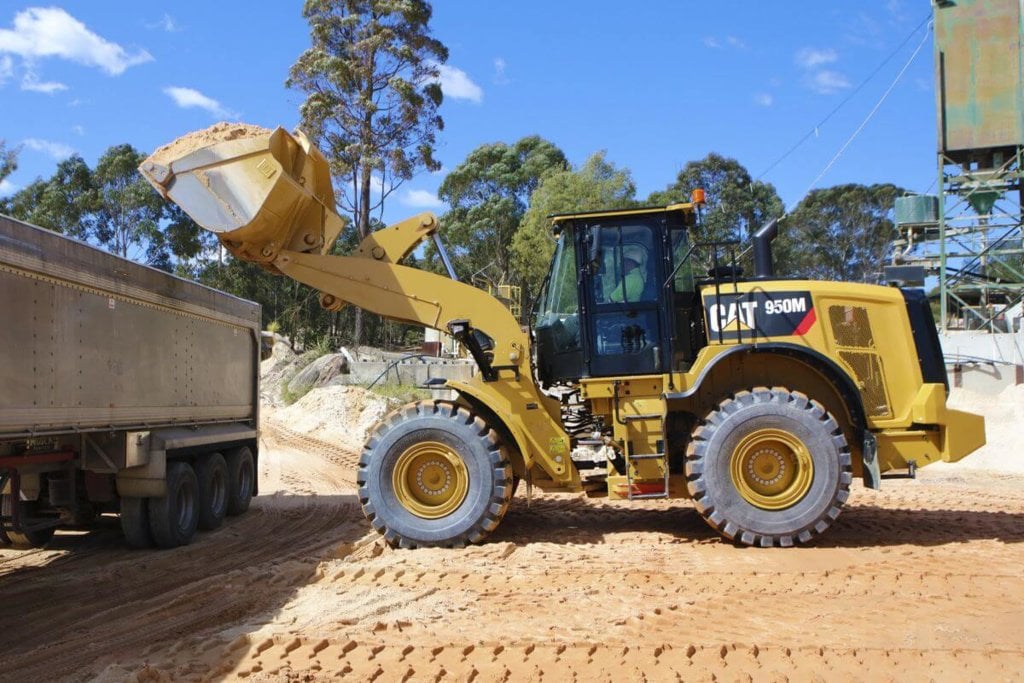

LONG TERM VALUE AND DURABILITY

Tough transmission and axles handle extreme applications.
Automatic powershift (5F/3R) transmission features durable, long-lasting components.
Full-flow hydraulic filtration system with additional loop filtrationimproves hydraulic system strength and component life.
Full hydraulic enclosed wet-disc with Integrated Braking System(IBS) and brake wear indicators add valued safety on the job.

WAARDE EN DUURZAAMHEID VOOR DE LANGE TERMIJN

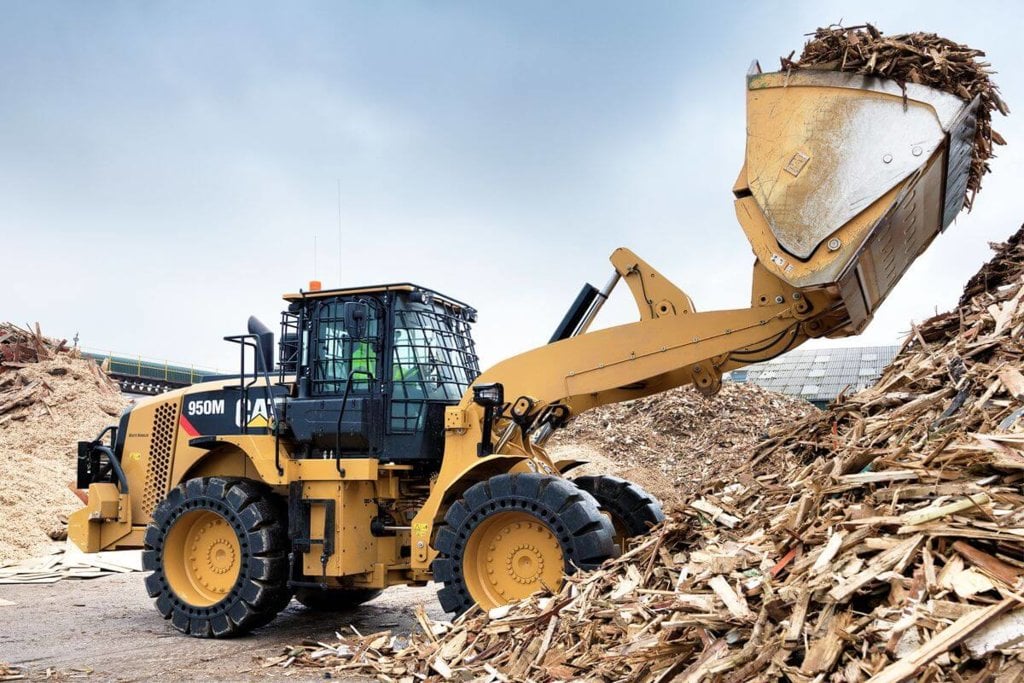

ACHIEVE GREATER PRODUCTIVITY

Increased engine power resulting in improved machine performance and response.
With 5-speed transmission and lock-up clutch torque converter, power trains deliver smooth shifting, fast acceleration, and speed on grade for greater performance and fuel efficiency.
Optimized Z-bar linkage provides high breakout force at ground level along with excellent parallelism for precise work tool control.
Easy-to-load performance series buckets improve material retention and reduce dig times, significantly improving productivity and fuel efficiency.
Differential locks are activated on-the-go, which improves traction, resulting in increased productivity while reducing tire scuffing for reduced operating costs.
Automatic idle engine shutdown system significantly reduces idle time, overall operatinghours, and fuel consumption.

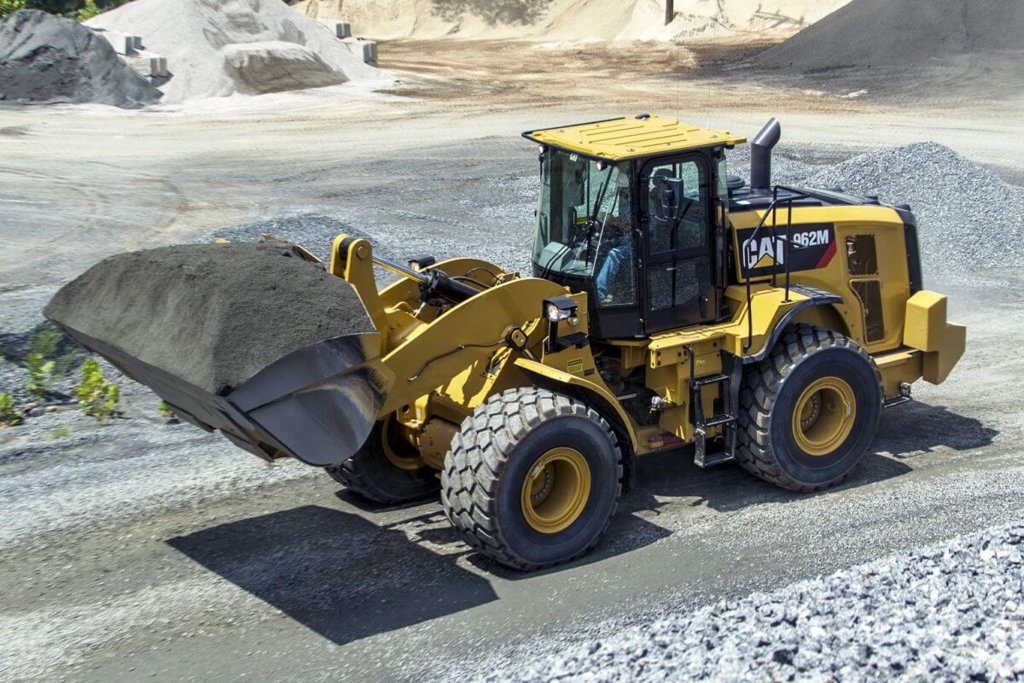

DO MORE WITH LESS FUEL

Deep system integration results in lower fuel consumption.
Significantly more fuel efficient than both the H and K Series loaders.
Power dense engine burns less fuel by providing power and torque when needed.
Significantly improved performance and fuel economy through engine speed and overall system heat load reduction.
Standard productive economy mode delivers more fuel savings with minimal productivity impact.

TECHNOLOGY THAT GETS WORK DONE

Developed to monitor, manage, and enhance your job site operations.

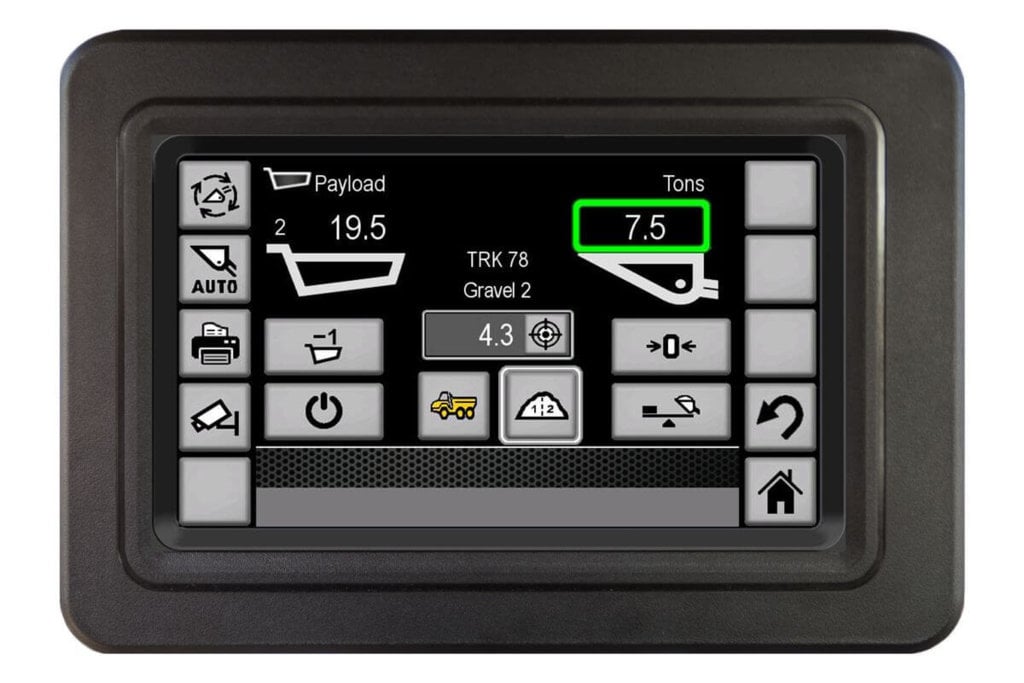

Payload provides accurate weighing* of the materials you are loading and hauling. Payload data is displayed in real-time to improve productivity and reduce overloading.
Detect enhances awareness of the environment around working equipment and provides alerts to help keep people and assets safe on the job site.
Link wirelessly connects you to your equipment, giving you access to essential information you need to know to run your business. Gain valuable insight into how your machine or fleet is performing allowing you to make timely, fact-based decisions that can boost job site efficiency and productivity.
Optional Advanced Productivity subscription providescomprehensive actionable information to help you manage and improve the productivity and profitability of your operations.

*Not legal for trade.

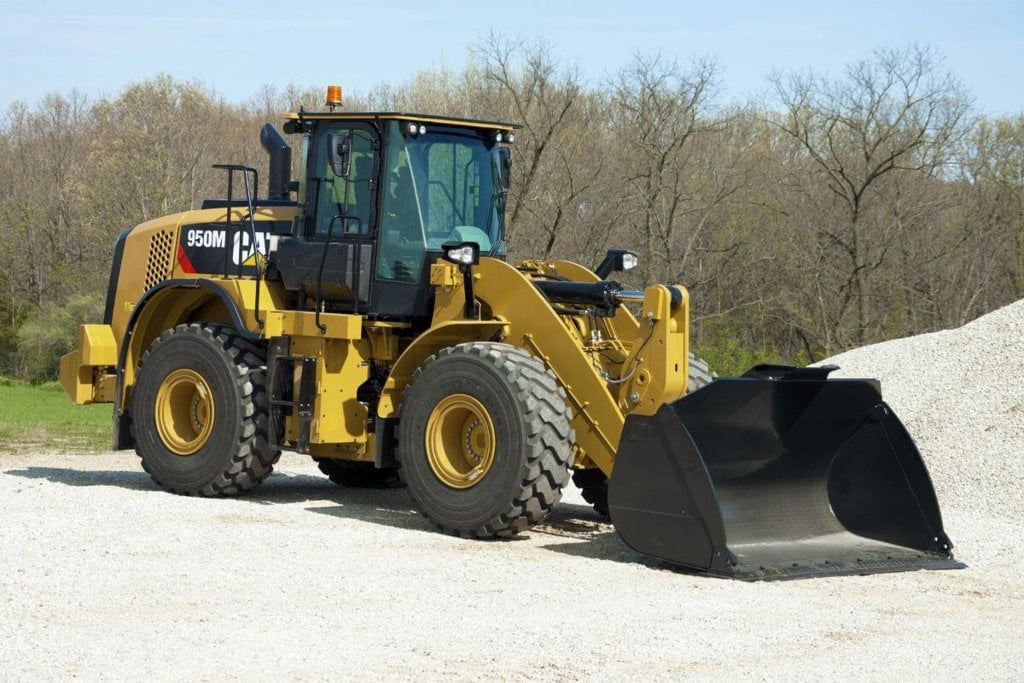

SAFELY HOME EVERY DAY

Cab access with wide door, optional remote door opening, and stair-like steps add solid stability.
Floor-to-ceiling windshield, large mirrors with integrated spot mirrors, and rear-vision camera provide industry leading all-around visibility.
Computerized monitoring system includes several warning indicators.
Rear vision camera enhances visibility behind the machine, helping you work safely and confidently.
Optional rear object detection radar system warns you of an object in critical zone while going in reverse, enhancing job site safety.

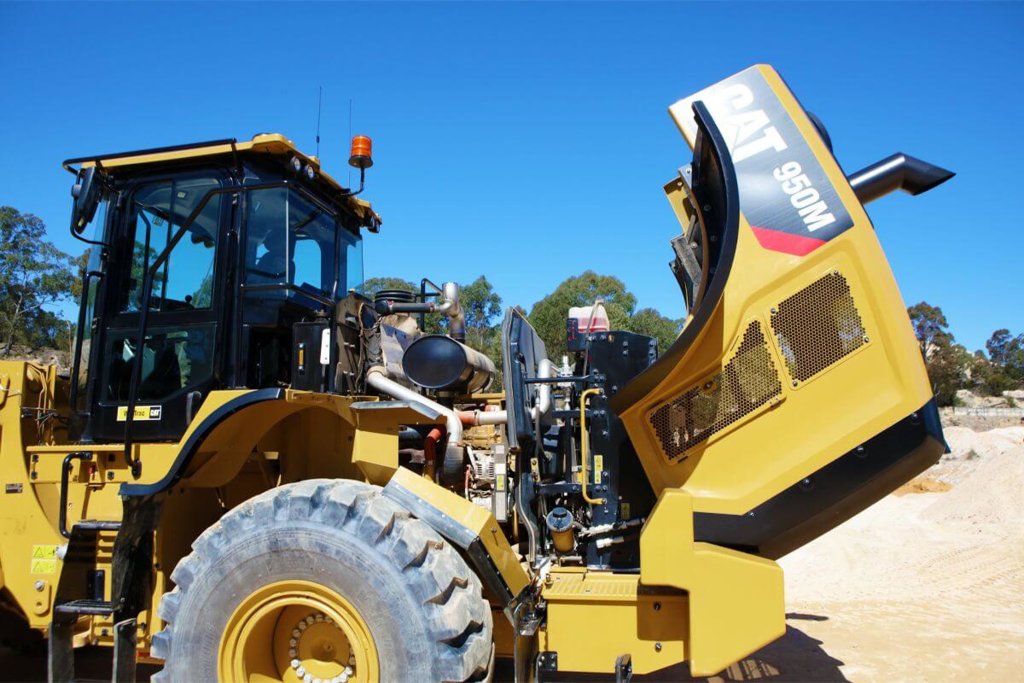

SAVE ON SERVICE AND MAINTENANCE

Extended service intervals including -

Engine oil and engine oil filter change interval up to 1000 hours (Tier 4 Final, Stage IV, and Stage V only)
Hydraulic filter change interval up to 1000
Transmission oil change interval up to 2000 hours

One-piece tilting hood makes cab access fast and easy.
Electrical service centers enhance convenience and accessibility.
Access to fuel fill and daily maintenance points means less servicing time is required.
Optional integrated Cat autolube system provides full lube system monitoring and diagnostic test visibility.
Remote flash support
Longer tire life with on-the-go traction aids

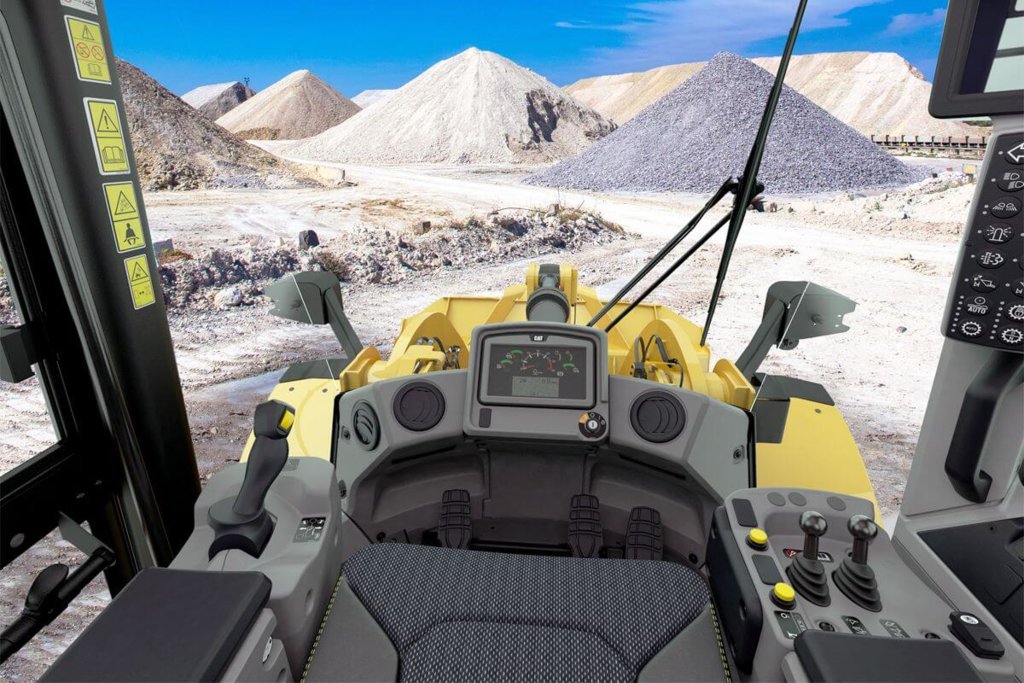

DESIGNED FOR OPERATORS

The next generation easily adjustable seat with updated styling and a revolutionary suspension system. It comes in three trim levels and can be equipped with a 4-point harness.
Sound-suppression, seals, and damping cab mounts decrease noise and vibration for a quieter work environment.
Low-effort conventional steering wheel standard.
Optional seat-mounted electro-hydraulic joystick steering system provides precision control and dramatically reduces arm fatigue, resulting in excellent comfort and accuracy.
Electrohydraulic (EH) controls, parking brake, and Single Axis Lever (SAL) lift and tilt function allow for better handling and control management.
Smart ergonomic controls are easy to use, intuitive, and user-friendly.
Touchscreen multi-function color display keeps operators focused.
The next generation of ride control works as a shock absorber, improving ride quality over rough terrain.
Enhanced inclined steps and convenient grab handles create a secure and accessible operating space.
Extended windows enhance visibility while convex and spot mirrors extend the driver’s view on the sides and rear.

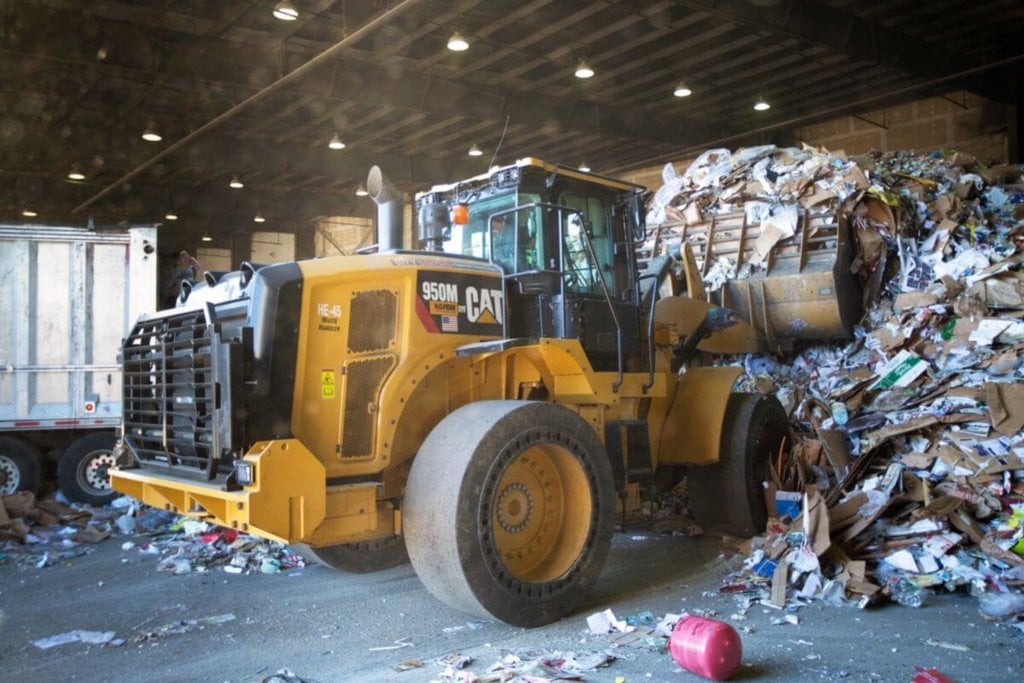

PURPOSE BUILT SPECIALTY MODELS

INDUSTRIAL & WASTE

Engineered for work in Transfer Stations, Recycling Depots, Scrap Yards and Demolition Sites.
Factory installed guarding improves uptime; guards protect axle seals, steering cylinders, crankcase, front frame, powertrain, tilt cylinders, lower cab and rear box. Package includes reinforced service centers, heavy duty cable steps, lift cylinder baffles, narrow front fenders, and steel rear fender deflectors.
Factory installed options available are solid tires, rear machine guard, rubber mounted cab glass, engine precleaner, powered and filtered cab precleaner and variable pitch cooling fan.
Cat Waste Buckets available separately are Load & Carry, Tamp & Clamp, Dozing, and Grapple can be fitted with steel or rubber cutting edge.

FORESTRY

Designed for efficiency and productivity log and chip handling in paper, pellet and saw mills.
950M Forest Machine includes logger counterweight to maintain stability carrying heavy loads, larger lift and tilt cylinders increase machine capacity 9% over base model.
Factory optionsavailable are Fusion or VCE quick coupler, 3rd or 4th function hydraulics to operate top or high dump bucket, front windshield guard, variable pitch fan, high debris cooler cores, engine precleaner, axle oil coolers and premium LED lighting package.
Work Tools available separately are Sorting Grapple, Millyard, Logging, Pole and Log & Lumber Forks and Light Material High Dump and Chip Buckets.

CORROSION RESISTANCE

Designed for corrosive environments such as fertilizer plants, chemical industries, agriculture, salt water ports and others.
Factory protection of all machine components that can be affected by corrosive materials.
Treatment includes E-Coat cooler cores, additional coating on main hydraulic valve, heat treated shrink sealant on hydraulic hoses, fittings and electrical wiring, all hinges greased, Zerust® vapor enclosure for electronic components, extra heavy duty alternator, turbine engine precleaner and varnish protection on engine compartment, internal chassis and all non-painted metallic parts.
