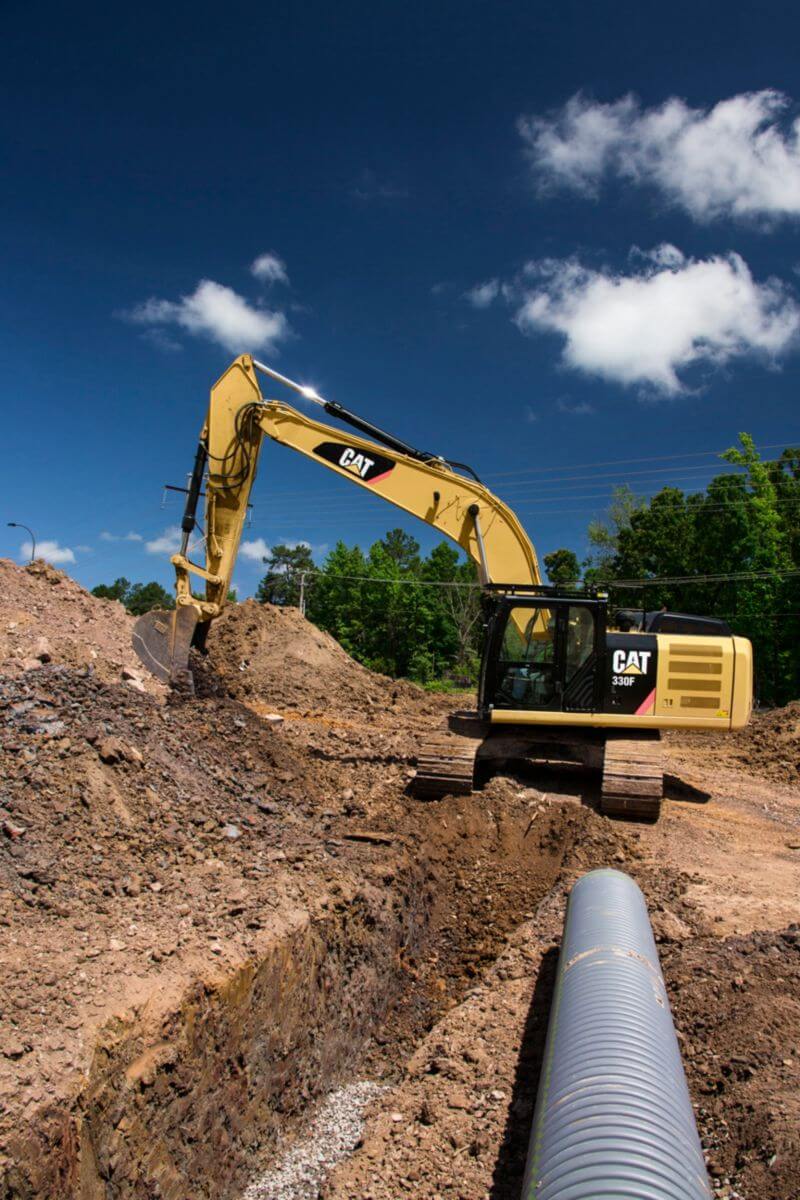

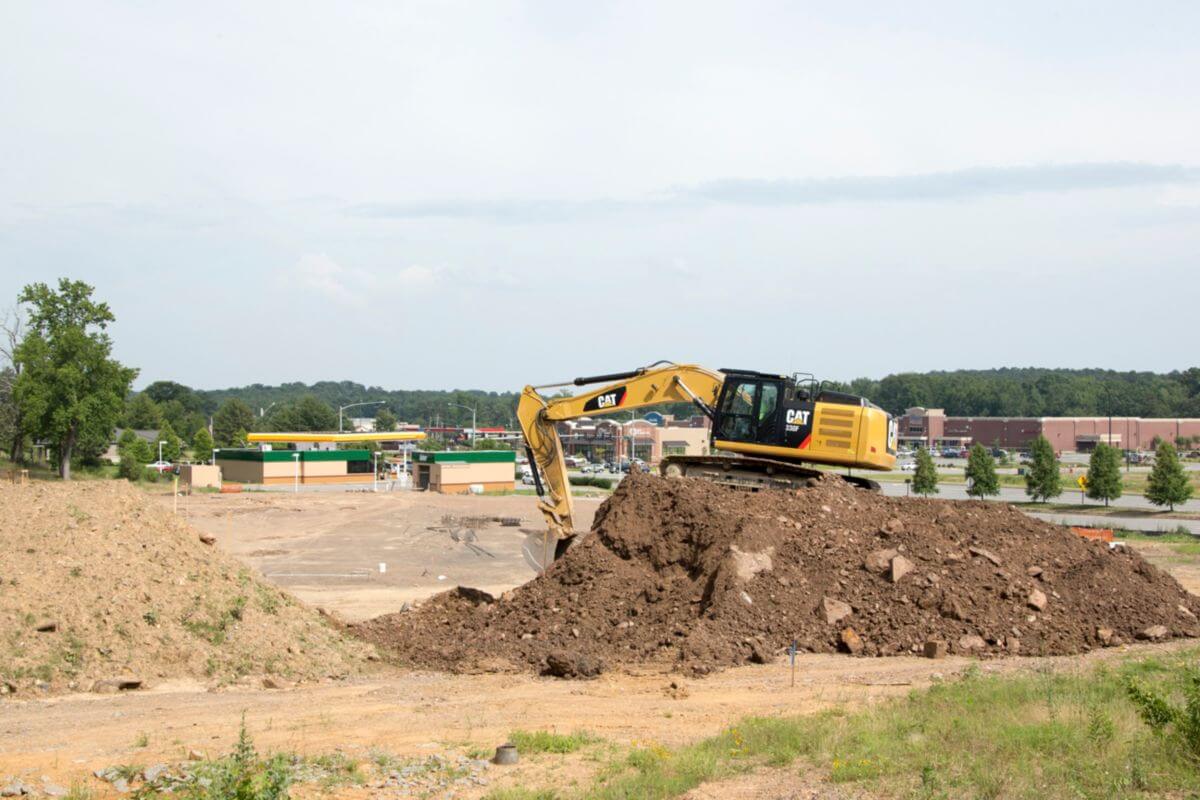

Cat 330F L/330F LN Hydraulic Excavator

About the Cat 330F L/330F LN Hydraulic Excavator

This product has expired. The 330F L/330F LN is a powerful, reliable, fuel-efficient machine. The C7.1 ACERT engine teamed with Caterpillar's state-of-the-art hydraulic system give you the ability to move tons of material all day long with tremendous speed and precision.

Specifications

Engine

Net Flywheel Power	235 HP
Bore	4.13 in
Stroke	5.31 in
Displacement	428 in³
Engine RPM - Operation	1750 r/min
Engine RPM - Rating	1800 r/min

Weights

Operating Weight

67748 lb

Machine Weight

Minimum Operating Weight*	64177 lb
Maximum Operating Weight**	67748 lb

Dimensions - Reach Boom - 6.15 m (20'2"); R3.2 m (10'6") Stick

Shipping Height - Top of Boom	11.06 ft
Shipping Length	34.09 ft
Tail Swing Radius	10.14 ft
Bucket Capacity	1.98 yd³
Cab Height - Including Shoe Lug Height	9.97 ft
Counterweight Clearance*	3.64 ft
Ground Clearance*	1.61 ft
Length - Center of Rollers	13.09 ft
Track Gauge - Long Narrow Undercarriage	7.84 ft
Track Gauge - Long Undercarriage	8.5 ft
Track Length	15.94 ft
Transport Width - Long Narrow Undercarriage - 600 mm (24 in) Shoes	9.81 ft
Transport Width - Long Undercarriage - 600 mm (24 in) Shoes	10.47 ft
Transport Width - Long Undercarriage - 900 mm (35 in) Shoes	11.45 ft

Drive

Maximum Drawbar Pull	55528 lbf
Maximum Travel Speed	3.2 mile/h

Hydraulic System

Maximum Pressure - Equipment - Heavy Lift	5511 psi
Maximum Pressure - Equipment - Normal	5076 psi
Maximum Pressure - Swing	3974 psi
Maximum Pressure - Travel	5366 psi
Pilot System - Maximum Flow	7.93 gal/min
Pilot System - Maximum Pressure	595 psi

Sound Performance

Operator Sound Pressure Level - ISO 6396:2008

72 dB(A)

Dimensions - Reach Boom - 6.15 m (20'2"); R2.65 m (8'8") Stick

Bucket Capacity	1.98 yd³
Cab Height - Including Shoe Lug Height	9.97 ft
Counterweight Clearance*	3.64 ft
Ground Clearance*	1.61 ft
Length - Center of Rollers	13.09 ft
Shipping Height - Top of Boom	11.32 ft
Shipping Length	34.12 ft
Tail Swing Radius	10.14 ft
Track Gauge - Long Narrow Undercarriage	7.84 ft
Track Gauge - Long Undercarriage	8.5 ft
Track Length	15.94 ft
Transport Width - Long Narrow Undercarriage - 600 mm (24 in) Shoes	9.81 ft
Transport Width - Long Undercarriage - 600 mm (24 in) Shoes	10.47 ft
Transport Width - Long Undercarriage - 900 mm (35 in) Shoes	11.45 ft

Swing

Maximum Swing Torque	77444 ft·lbf
Swing Speed	9.6 r/min

Working Ranges - Reach Boom - 6.15 m (20'2"); R2.65 m (8'8") Stick

Bucket Capacity	2.24 yd³
Bucket Digging Force - ISO	32597 lbf
Maximum Depth Cut for 2440 mm (8'0") Level Bottom	21.39 ft
Maximum Digging Depth	21.98 ft
Maximum Loading Height	22.31 ft
Maximum Reach - Ground Line	33.46 ft
Maximum Vertical Wall Digging Depth	18.64 ft
Minimum Loading Height	9.32 ft
Stick Digging Force - ISO	40466 lbf

Working Ranges - Reach Boom - 6.15 m (20'2"); R3.2 m (10'6") Stick

Bucket Capacity	1.98 yd³
Bucket Digging Force - ISO	28326 lbf
Maximum Depth Cut for 2440 mm (8'0") Level Bottom	23.26 ft
Maximum Digging Depth	23.79 ft
Maximum Loading Height	22.8 ft
Maximum Reach - Ground Line	35.04 ft
Maximum Vertical Wall Digging Depth	19.62 ft
Minimum Loading Height	7.51 ft
Stick Digging Force - ISO	40241 lbf

Features

Performance

Smooth multi-function control is built in for easy operation.
The Heavy Lift mode increases maximum pressure, reducing engine speed and pump flow to improve controllability.
The emissions package works behind the scenes and won't interrupt the job process.

Efficiency

The C7.1 ACERT engine meets EU Stage IV emission standards and can run on biodiesel up to B20.
Integrated electronics, fuel, air, and aftertreatment reduce fuel consumption and emissions and extend service intervals.
Three power modes – high, standard, and eco – help manage fuel consumption.
Automatic engine speed control lowers rpm based on load for reduced fuel consumption.
The sideview camera enhances visibility on the boom side of the machine to help make operators more effective and efficient.

Versatility

Utility and finishing work are fast and flawless with a Cat® compactor, thumb, finishing bucket or tilt bucket.
Demolition work is easy with a Cat hammer, grapple, shear, or multi-processor.
Couplers let you swap between attachments in seconds without leaving the cab, and auxiliary tool control maximizes attachment performance.

Technology

Optional Cat GRADE with ASSIST automates boom and bucket movements, including tilt buckets, to help operators of all skill levels dig flat bases and the right slopes every time.
Product Link™/VisionLink® connects owners to their equipment, providing access to machine location, hours, fuel consumption, idle time, events, and diagnostic codes.
Cat Grade Control Depth and Slope helps operators work more productively and accurately with less rework.

Maintenance

Routine maintenance items like grease points and fluid taps are reachable at ground level.
The service door design helps prevent debris entry, and doors latch in place to enhance ease of service.
The cooling system adjusts to make maintenance easy.

Comfort

The full-size roll-over protective structure (ROPS) certified cab is quiet and comfortable.
Automatic climate control maintains consistent cab temperature.
Joysticks and armrests are adjustable.
Seats are adjustable and feature air suspension and heated and cooled options.
The LCD monitor is easy to navigate and programmable in 44 languages.

Durability

The large swing bearing is secured with elongated bolts to help handle the most swing-intensive work.
Abrasion-resistant Cat XT™-6 hose can stand up to high pressures over the long haul.
Booms and sticks are built for long service.
Box-section structures with multi-plate fabrications, castings, and forgings are used in high-stress areas.
Greased track link between pins and bushings increases undercarriage life and reduces noise.
Guards protect components from track debris and site material.
