Cat 336 Hydraulic Excavator

Large Excavators

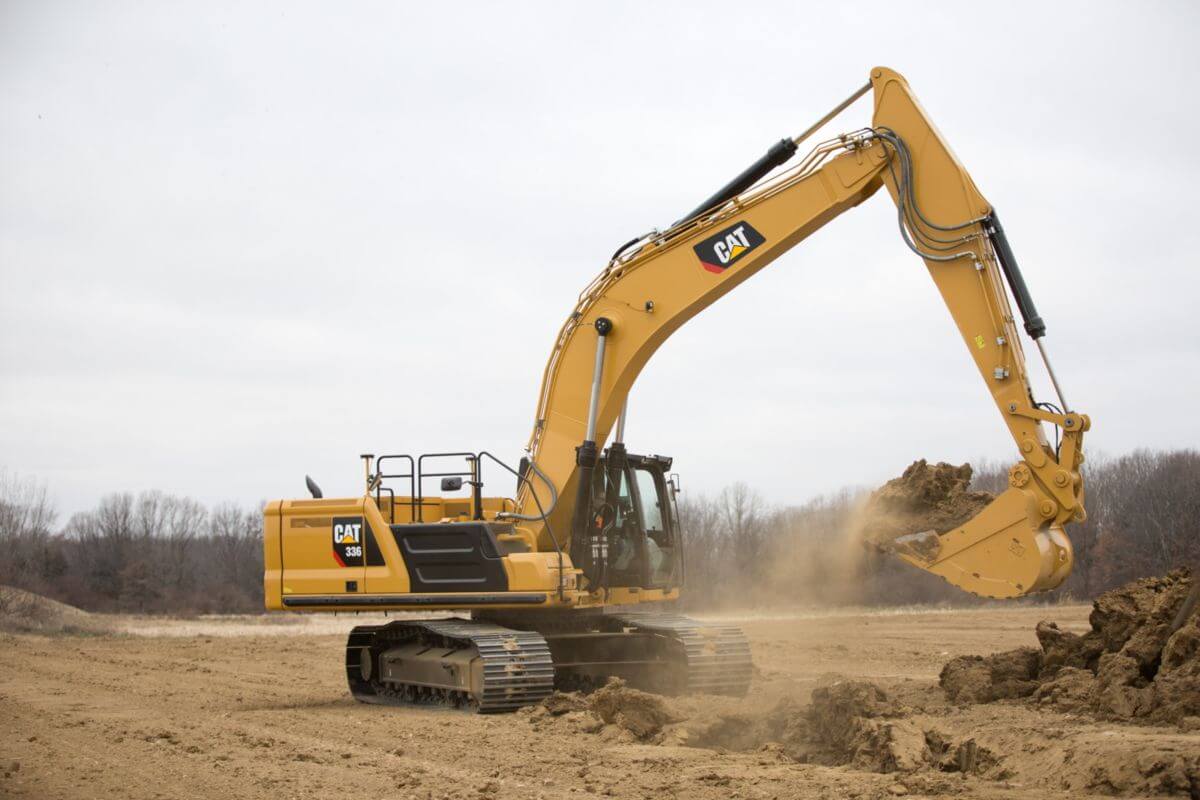

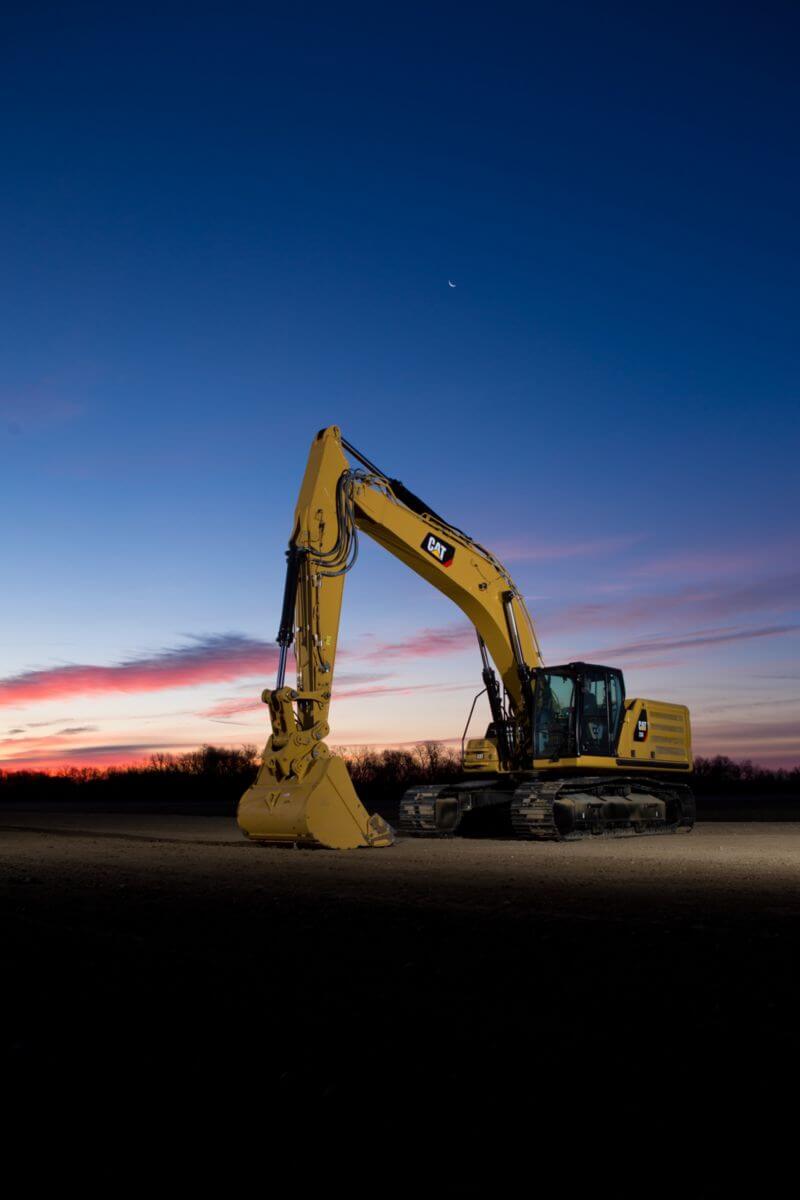

De Cat 336 graafmachine is klaar om geld te verdienen, dag en nacht.

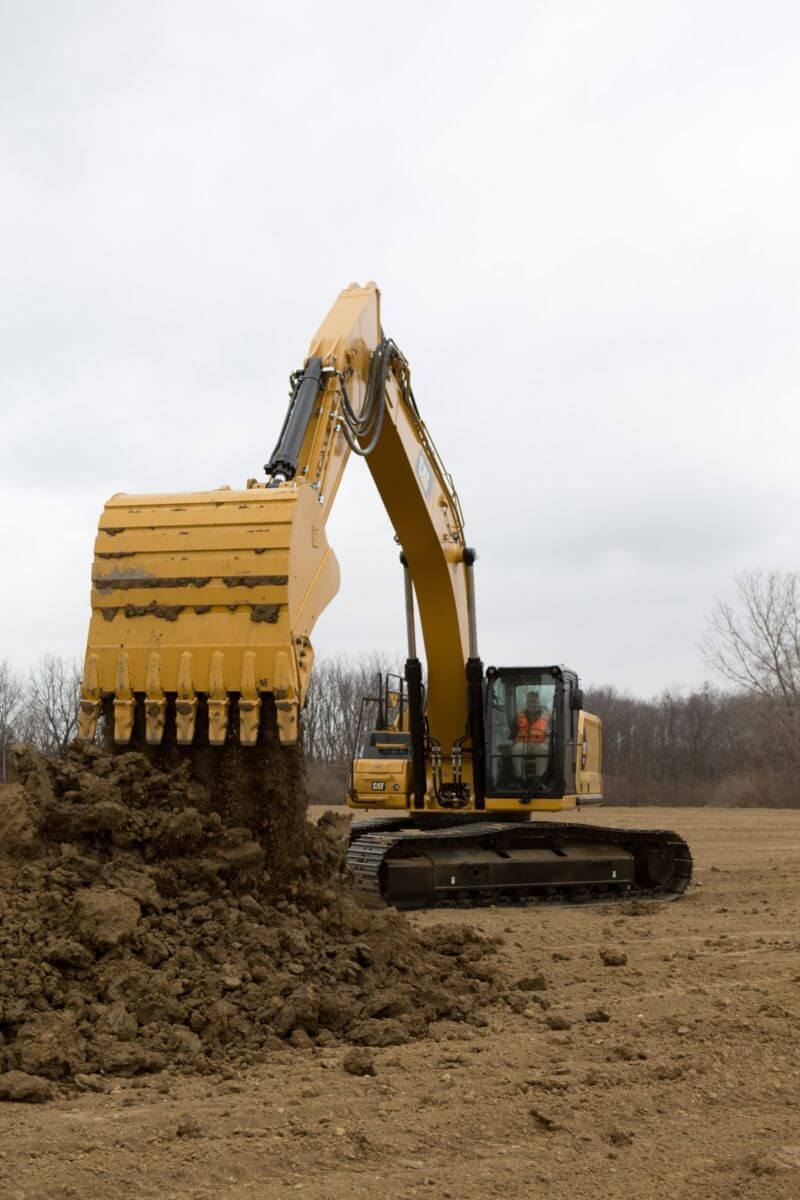

Met een Cat laadback graaft de 336 graafmachine precies en krachtig door modder.

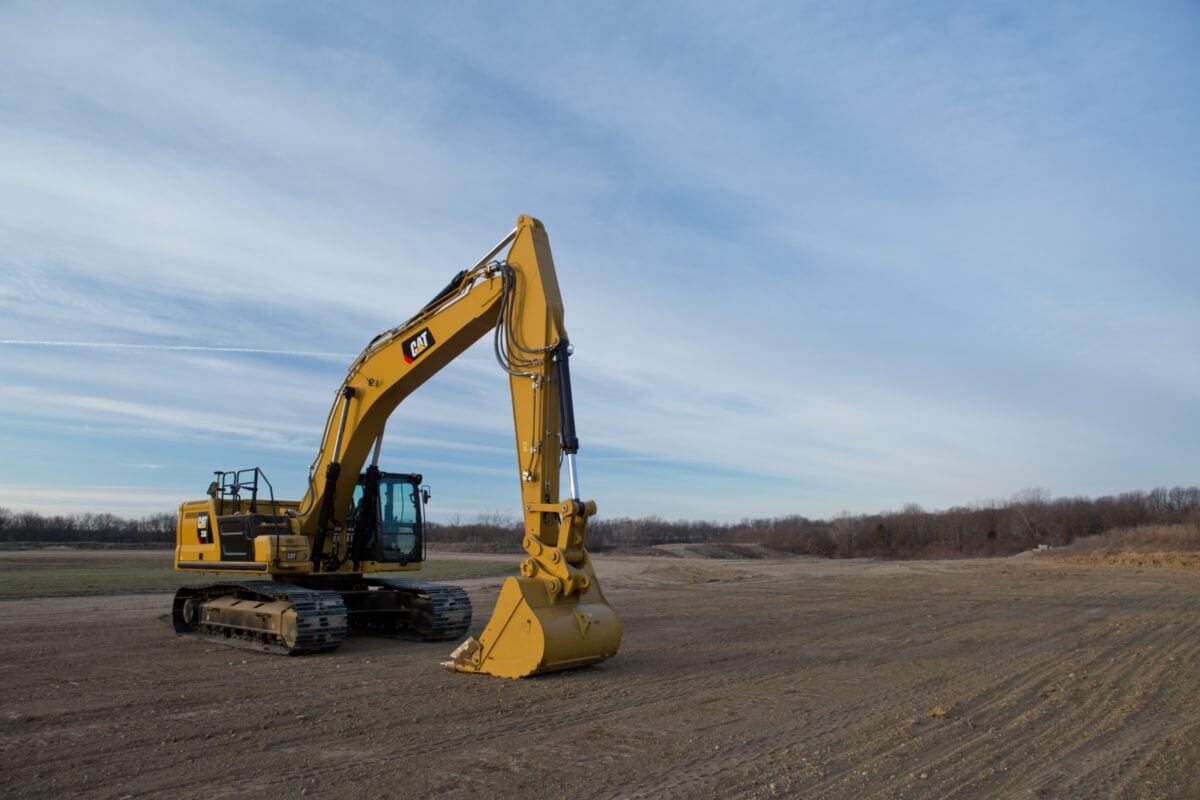

De Cat 336 graafmachine verplaats veel materiaal snel en efficiënt.

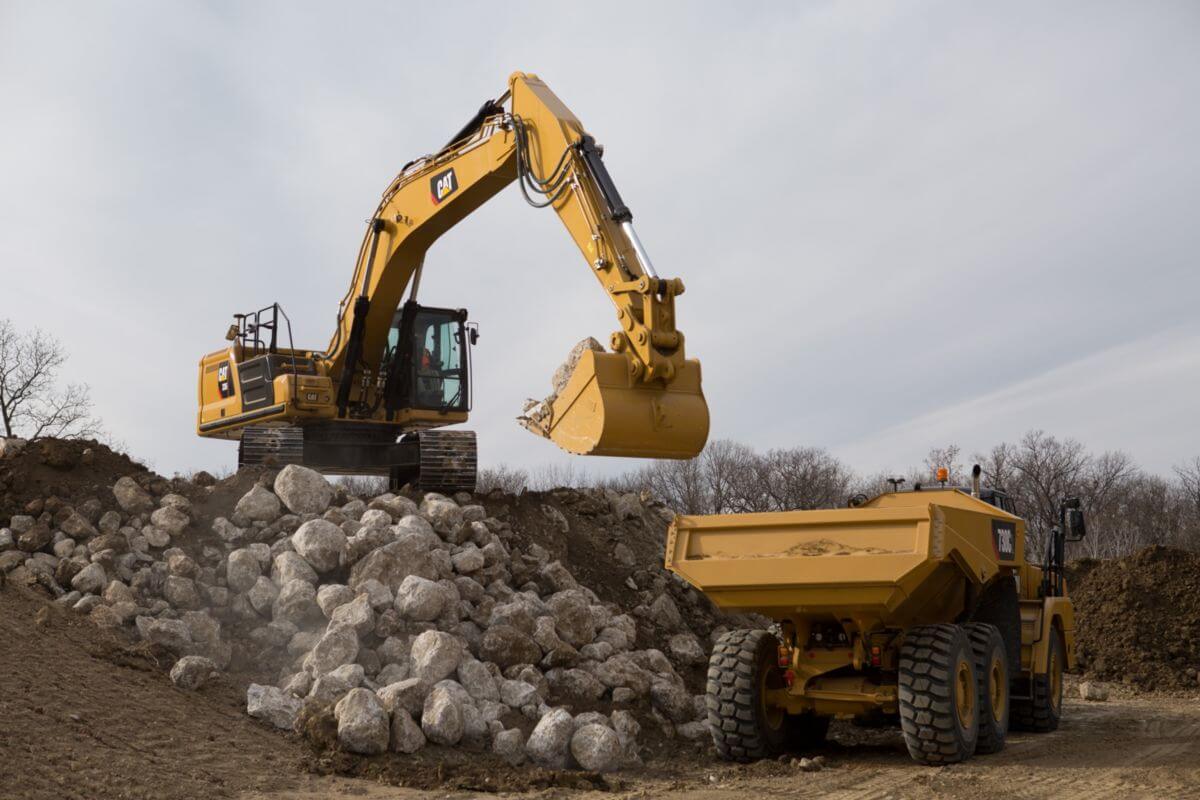

De Cat 336 graafmachine is een geweldige laadgraafmachine.

About the Cat 336 Hydraulic Excavator

The Cat® 336 excavator brings premium performance with simple-to-use technologies like Cat GRADE with 2D, Grade Assist, and Payload – all standard equipment from the factory to boost your operator efficiencies up to 45 percent. Combine these features with a new cab, longer maintenance intervals that lower your maintenance costs up to 15 percent, and a power system that improves fuel efficiency up to 15% and you have a low-cost-per-unit-of-production excavator that’s perfect for your applications.

Specifications

Engine

Net Flywheel Power	311 HP
Bore	5 in
Displacement	568 in³
Engine RPM - Operation	1800 r/min
Engine RPM - Travel	1550 r/min
Gross Power - SAE J1995	314 HP
Net Power - SAE J1349	311 HP
Stroke	6 in

Weights

Operating Weight

81900 lb

Dimensions - Reach Boom - 6.5 m (21'4"); R3.2DB (10'6") Stick; GDC 2.27 m3 (2.97 yd3) Bucket

Counterweight Clearance	4.1 ft
Ground Clearance	1.7 ft
Handrail Height	10.4 ft
Shipping Height - Top of Cab	10.4 ft
Shipping Length	36.7 ft
Tail Swing Radius	11.6 ft
Track Gauge	8.5 ft
Track Length to Center of Rollers	13.3 ft
Transport Width - 850 mm (33 in) Shoes	11.3 ft

Hydraulic System

Main System - Maximum Flow - Total	147 gal/min
Maximum Pressure - Equipment - Implement	5076 psi
Maximum Pressure - Equipment - Lift Mode	5511 psi
Maximum Pressure - Swing	4264 psi
Maximum Pressure - Travel	5076 psi

Service Refill Capacities

Cooling System	10.5 gal (US)
DEF Tank	21.1 gal (US)
Engine Oil - With Filter	8.5 gal (US)
Final Drive - Each	2.1 gal (US)
Fuel Tank Capacity	158.5 gal (US)
Hydraulic System - Including Tank	98.5 gal (US)
Hydraulic Tank	40.4 gal (US)
Swing Drive - Each	4.8 gal (US)

Swing

Maximum Swing Torque	84151 ft·lbf
Swing Speed	8.75 r/min

Working Ranges - Reach Boom - 6.5 m (21'4"); R3.2DB (10'6") Stick; GCD 2.27 m3 (2.97 yd3) Bucket

Bucket Digging Force - ISO	47160 lbf
Bucket Digging Force - SAE	41900 lbf
Maximum Cutting Height	35.2 ft
Maximum Depth Cut for 2440 mm (8'0") Level Bottom	26.4 ft
Maximum Digging Depth	26.9 ft
Maximum Loading Height	2.6 ft
Maximum Reach - Ground Level	38.5 ft
Maximum Vertical Wall Digging Depth	20.9 ft
Minimum Loading Height	6.2 ft
Stick Digging Force (ISO)	32400 lbf
Stick Digging Force (SAE)	31630 lbf

Features

High Performance with Lower Fuel Consumption

Increase operating efficiency up to 45 percent with standard Cat Connect technologies that lower operator fatigue and operating costs, including fuel consumption and daily maintenance.
Get up to 15 percent higher fuel efficiency — more work per unit of fuel — than the Cat 336F excavator.
The C9.3B engine can run on biodiesel up to B20 and meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Match the excavator to the job with three power modes — Power, Smart, and Eco. Smart mode automatically matches engine and hydraulic power to digging conditions, providing max power when needed and reducing power when it isn’t to help save fuel.
New high-efficiency hydraulic fans individually cool engine components on demand to help reduce fuel consumption.
The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for precise digging requirements.
New self-sharpening Advansys bucket tips increase production and lower costs with up to 30 percent more tip life.
Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.
Don’t let the temperature stop you from working. This excavator has a high-ambient capability of 52° C (125° F) and cold start capability of –18° C (0° F).

Boost Efficiency and Boost Productivity with Integrated Cat Connect

Boost productivity up to 45 percent versus traditional grading with standard Cat GRADE with 2D system – includes indicate-only and laser capability. Dig with guidance to depth, slope, and horizontal distance to grade. The 2D system is upgradable to Cat GRADE with Advanced 2D or Cat GRADE with 3D.
Standard Grade Assist: Stay on grade – simply and effortlessly – with single-lever digging. Set your desired bucket angle and let Bucket Assist automatically maintain the angle in sloping, leveling, fine grading, and trenching applications for easy, accurate, and fast jobs. Keep the tracks on ground in lifting and hard digging with Boom Assist. Automatically stop excavator swing at operator-defined set points in truck loading and trenching applications with Swing Assist, which will help you use less effort and consume less fuel.
Standard Cat PAYLOAD on-board weighing system: Achieve precise load targets and increase loading efficiency with on-the-go weighing and real-time estimates of your payload without swinging. Track your daily productivity such as truck target weights and load/cycle counts. Calibration can be performed in a matter of minutes. Combine Payload with VisionLink® and remotely manage your production targets.
Upgrade to optional Cat GRADE with Advanced 2D: Create and edit grade designs with ease on a second high-resolution 254 mm (10 in) touchscreen monitor.
Upgrade to optional Cat GRADE with 3D: Create and edit designs with ease and see the front linkage’s full range of motion on a second high-resolution 254 mm (10 in) touchscreen monitor. Know the excavator’s exact position relative to GPS and GLONASS systems. The machine automatically compensates for excavator pitch and roll caused by sloping ground conditions.
Standard Product Link™ provides location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data on demand through VisionLink online interface, helping you improve job site efficiency with lower operating costs.
Know where your work tools are and how much you use them, as the machine tracks all attachments equipped with Cat TrackIt technology.

Work in Comfort in the All-New Cab

Choose between Deluxe and Premium cabs — both with automatic climate control.
Sit in wide seats that adjust for all size operators.
Stay warm with the Deluxe seat; stay warm and cool with the Premium seat.
Enjoy wide spacing between consoles for a more comfortable environment.
Get in and out of the cab easier using the tip-up left console.
Advanced viscous mounts reduce cab vibration up to 50 percent over previous excavator models.
Control the excavator comfortably with easy-to-reach controls all located in front of you.
Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.

Simple to Operate

Start the engine with a push button; use a Bluetooth key fob, smartphone app, or the unique Operator ID function.
Program each joystick button, including power mode, response, and pattern, using Operator ID; the machine will remember what you set each time you go to work.
Automatic hydraulic oil warm up gets you to work faster in cold temperatures and helps prolong the life of components.
Navigate quickly on the standard high-resolution 203 mm (8 in) touchscreen monitor, or with the optional 254 mm (10 in) touchscreen monitor, or with the aid of the jog dial control.
A second 254 mm (10 in) monitor is available for the advanced grade control and Cat GRADE with 3D.
Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.

Maintenance

Expect up to 15 percent less maintenance cost than the 336F due to extended service intervals. (Savings calculated over 12,000 machine hours.)
Check hydraulic system oil and easily drain fuel system water and fuel tank water from ground level.
Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
Change all fuel filters at a synchronized 1,000 hours. Oil and fuel filters grouped and located on right-hand side of machine for easy maintenance.
The new air intake filter with pre-cleaner has double the dust holding capacity of the previous air intake filter.
The new hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000 hour replacement interval – 50 percent longer than previous filter designs.
The new high-efficiency hydraulic fans have an optional automatic reverse function to keep cores free from debris, eliminating the need for any operator interaction.
S·O·S^SM ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.

Safety

Work safely with the standard 2D E-fence feature integrated right out of the factory, which prevents the excavator from moving outside of operator-defined set points.
The standard ROPS cab meets ISO 12117-2:2008 requirements.
A travel direction indicator helps operators know which way to activate the travel levers.
Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab pillars, larger windows, and a flat engine hood design.
A ground-level shut-off switch stops all fuel to the engine when activated and shuts down the machine.
A rearview camera is standard. Upgrade to 360° visibility and you’ll easily visualize objects and personnel around the excavator in a single view.
Serrated steps and anti-skid punch plate on the service platform help prevent slipping.
