Cat 246D Skid Steer Loader

Skid Steer Loaders

About the Cat 246D Skid Steer Loader

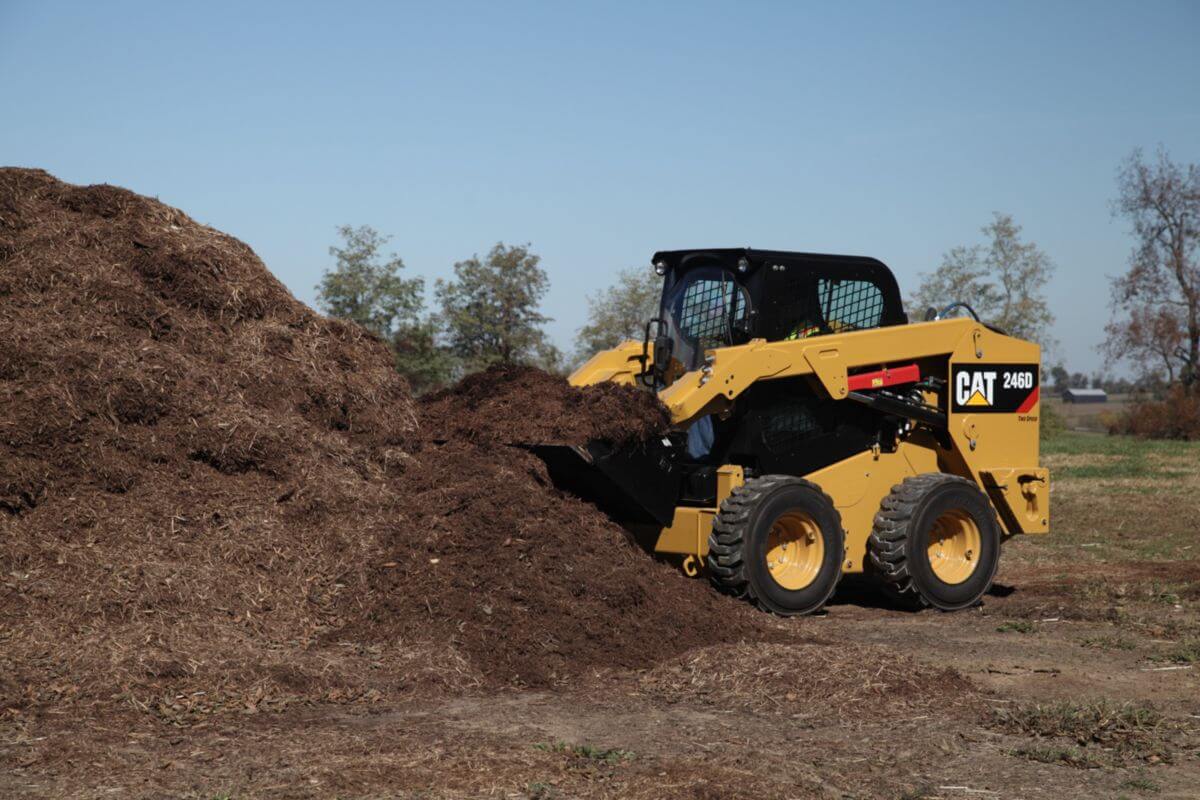

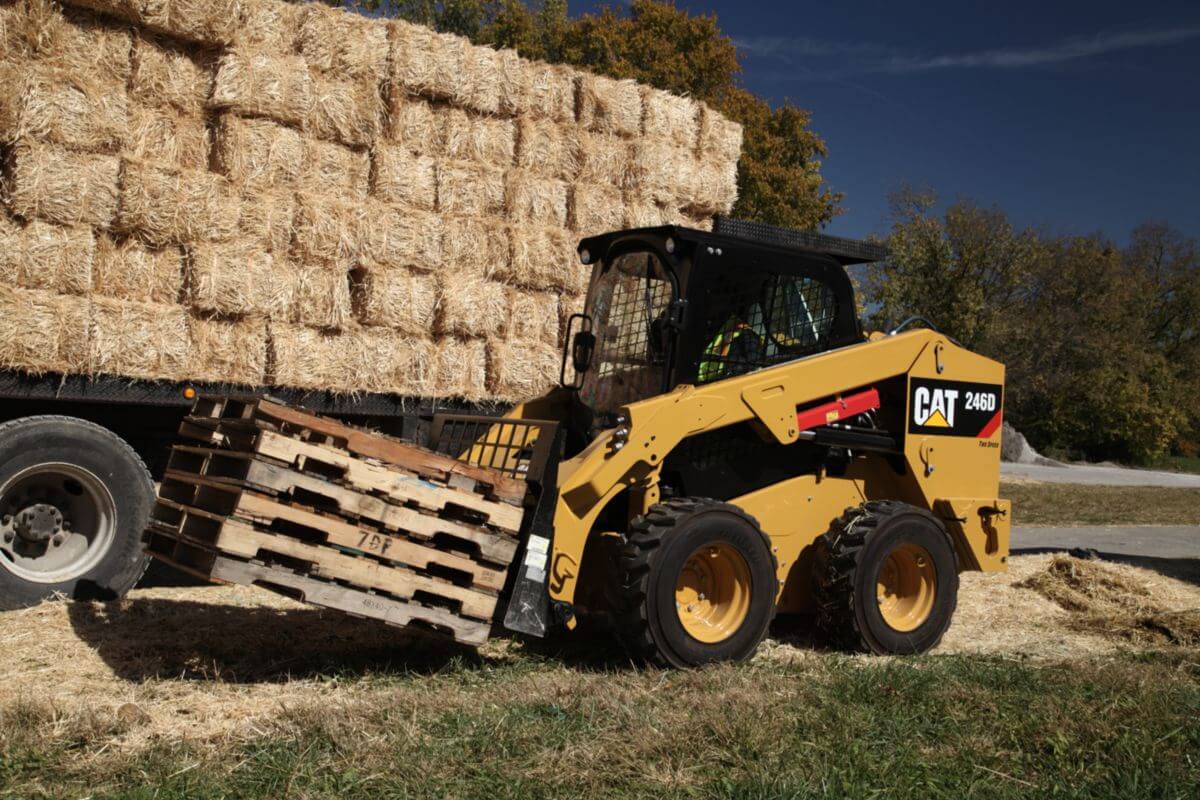

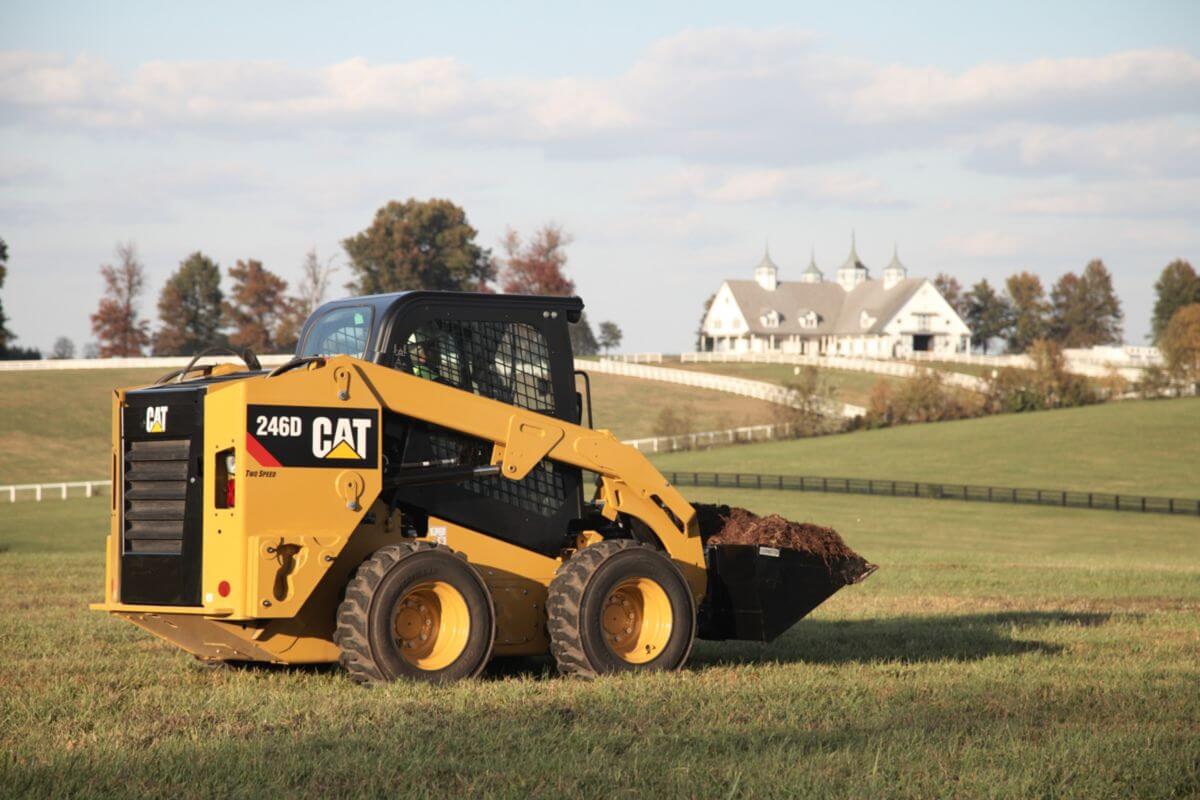

The Cat 246D Skid Steer Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power.

Specifications

Engine

Engine Model	Cat C3.3B DIT (turbo)
Net Flywheel Power	72.9 HP
Gross Power - SAE J1995	74.3 HP
Net Power - SAE 1349	72.9 HP
Displacement	203 in³
Stroke	4.7 in
Bore	3.7 in
Net Power - ISO 9249	73.7 HP
Peak Torque - 1,500 rpm - SAE J1995	195 HP

Weights

Operating Weight	7424 lb
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1676 mm (66 in) dirt bucket, Cat PC 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterwei

Operating Specifications

Rated Operating Capacity	2150 lb
Tipping Load	4300 lb
Breakout Force - Tilt Cylinder	7355 lb
Rated Operating Capacity with Optional Counterweight	2400 lb
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1676 mm (66 in) dirt bucket, Cat PC 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterwei

Dimensions

Wheel Base	49.2 in
Height - Top of Cab	83.1 in
Vehicle Width over Tires	66 in
Ground Clearance	8.9 in
Departure Angle	26°
Maximum Dump Angle	39°
Bucket Pin Height - Carry Position	7.9 in
Bucket Pin Height - Maximum Lift	124.2 in
Bumper Overhang - Behind Rear Axle	42.6 in
Clearance at Maximum Lift and Dump	97.1 in
Length - With Bucket on Ground	146 in
Length - Without Bucket	117.8 in
Maximum Overall Height	158.7 in
Maximum Reach - With Arms Parallel to Ground	54.6 in
Rack Back Angle - Maximum Height	96°
Reach - Maximum Lift/Dump	23.6 in
Turn Radius from Center - Bucket	85.9 in
Turn Radius from Center - Coupler	55.2 in
Turn Radius from Center - Machine Rear	71.2 in
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1676 mm (66 in) dirt bucket, Cat PC 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterwei

Hydraulic System

Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)	76 HP
Hydraulic Flow - High Flow XPS - Loader Hydraulic Flow	32 gal/min
Hydraulic Flow - High Flow XPS - Loader Hydraulic Pressure	4061 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	44 HP
Hydraulic Flow - Standard - Loader Hydraulic Flow	23 gal/min
Hydraulic Flow - Standard - Loader Hydraulic Pressure	3335 psi

Cab

ROPS	ISO 3471:2008
FOPS	ISO 3449:2005 Level I
FOPS Level II	ISO 3449:2005 Level II

Power Train

Travel Speed - Forward or Reverse - One Speed	7.7 mile/h
Travel Speed - Forward or Reverse - Two Speed Option	11 mile/h

Service Refill Capacities

Chain Box - Each Side	3.3 gal (US)
Cooling System	3.7 gal (US)
Engine Crankcase	3 gal (US)
Fuel Tank	24.8 gal (US)
Hydraulic System	13.7 gal (US)
Hydraulic Tank	10.3 gal (US)

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.

Noise Level

Inside Cab*	81 dB(A)
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (2)	*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan spee
Note (3)	**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Outside Cab**	101 dB(A)

Features

Comfortable Cab

Industry leading sealed and pressurized cab option provides a cleaner and quieter operating environment with excellent work tool visibility. Available high-back, heated, air ride seat with seat mounted adjustable joystick controls makes the D Series the industry leader in operator comfort.

Outstanding Power

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, optional two speed travel and an industry exclusive electronic hand/foot throttle with decel pedal capability. Electronically controlled Cat C3.3B engine provides high horsepower and torque while meeting U.S. EPA Tier 4 Final (EU Stage IIIB) emission standards. High Flow XPS hydraulic system is available for applications that demand maximum hydraulic work tool performance.

Versatility to Tackle Any Job

Cat “Intelligent Leveling” system (ILEV) provides industry leading technology, integration and optional features such as dual direction self level, work tool return to dig and work tool positioner. Speed Sensitive Ride Control option improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort. Broad range of performance matched Cat Work Tools makes the Cat Skid Steer Loader the most versatile machine on the job site.

Advanced Display

Maximize machine capability and control with optional Advanced Display providing on-screen adjustments for implement response, hystat response and creep control. The display also features multi-language functionality with customizable layouts, security system and rearview camera.

Easy Service

Ground level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.
